Migrating a Monolithic System to a Frontend-Backend Separated Architecture

Transitioning from a monolithic architecture to a separated frontend-backend structure is a strategic move that can significantly enhance scalability, maintainability, and development agility. This comprehensive guide outlines the step-by-step process to achieve this migration, integrating best practices and addressing potential challenges to ensure a successful transformation.

1. Planning and Assessment

a. Evaluate the Current Monolithic System

Begin by conducting a thorough analysis of the existing monolithic application. This involves understanding its architecture, dependencies, functionality, and identifying areas with high coupling or scalability constraints. Document all components, their interactions, and data flows to gain a clear picture of the current system.

b. Define Migration Objectives

Establish clear goals for the migration process. Common objectives include:

• Scalability: Enable independent scaling of frontend and backend services based on demand.
• Maintainability: Simplify updates and maintenance by decoupling components.
• Flexibility: Allow the use of optimal technologies for different layers without constraints.
• Deployment Agility: Facilitate more frequent and independent deployments of frontend and backend.

c. Choose Appropriate Technologies

Select the best-fit technologies for both frontend and backend based on your team's expertise and project requirements. For the frontend, popular frameworks include React, Vue.js, Angular, and Svelte. For the backend, consider frameworks that support RESTful or GraphQL APIs, such as Node.js, Django, Ruby on Rails, or Spring Boot.

2. Decomposition Strategy

a. Identify Service Boundaries

Segment the monolith by distinguishing distinct business domains. Techniques like Domain-Driven Design (DDD) can help in defining bounded contexts that align with specific business functionalities, ensuring each service remains focused and manageable.

b. Prioritize Services for Extraction

Determine which components to migrate first based on their functionality, dependencies, and impact on the system. Prioritize services that will most benefit from separation, such as those that are resource-intensive or require frequent updates.

3. Backend Migration

a. Create a New Backend API Project

Set up a separate repository for the new backend services. Choose a suitable framework and design RESTful or GraphQL endpoints to expose business logic. Implement authentication and authorization mechanisms, such as token-based authentication (e.g., JWT or OAuth2), to secure the APIs.

b. Refactor and Extract Business Logic

Gradually extract business logic from the monolithic backend, creating independent service layers. Implement data models and ensure proper database connections are established. Focus on maintaining data integrity and consistency during this process.

c. Implement API Communication

Ensure that the new backend services communicate effectively with the frontend through well-defined APIs. Utilize tools like RESTful APIs or GraphQL to facilitate seamless data exchange.

4. Frontend Migration

a. Set Up a New Frontend Project

Create a separate repository for the frontend codebase. Choose a modern frontend framework such as React, Vue.js, Angular, or Svelte. Configure routing, state management, and set up the necessary development environment.

b. Decouple Frontend Logic

Shift from server-side rendering to client-side rendering. Implement dynamic data fetching from the backend APIs using tools like Axios or the Fetch API. Ensure that UI components are capable of rendering data dynamically based on API responses.

c. Host Static Assets Separately

Deploy frontend assets (HTML, CSS, JavaScript) on Content Delivery Networks (CDNs) or static hosting services such as AWS S3, Vercel, or Netlify. This allows for independent scaling and faster content delivery.

5. Establishing Communication Between Frontend and Backend

a. Design Robust APIs

Create well-documented APIs that define clear contracts between frontend and backend. Utilize specifications like OpenAPI or Swagger to automate API documentation, ensuring consistency and ease of use for frontend developers.

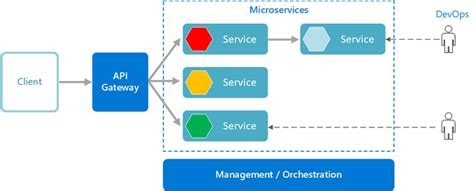

b. Implement an API Gateway

Introduce an API gateway to manage, route, and secure API requests between the frontend and backend services. An API gateway can handle concerns such as authentication, rate limiting, and caching, providing a centralized point of control.

c. Ensure Secure Communication

Implement security measures such as CORS policies to control cross-origin requests. Use SSL/TLS to encrypt data in transit, and ensure that sensitive information is handled securely across all communication channels.

6. Data Management and Consistency

a. Separate Databases

Assign each backend service its own database to ensure loose coupling and independent scalability. This approach reduces inter-service dependencies and enhances data management flexibility.

b. Implement Data Synchronization

Use messaging queues or event-driven architectures (e.g., Kafka, RabbitMQ) to synchronize data across services. This ensures data consistency and integrity, especially when handling transactions that span multiple services.

c. Employ Caching Strategies

Optimize data retrieval and reduce database load by implementing caching mechanisms such as Redis or Memcached. Caching frequently accessed data can significantly improve system performance.

7. Security Measures

a. Implement Authentication and Authorization

Transition to stateless authentication methods like JWTs or OAuth2 to manage user sessions securely. Ensure that all API endpoints enforce proper authorization checks to protect sensitive data and functionalities.

b. Enforce CORS Policies

Configure Cross-Origin Resource Sharing (CORS) policies to control which domains can interact with your backend services. Proper CORS configuration prevents unauthorized access and potential security vulnerabilities.

c. Secure API Endpoints

Protect API endpoints by implementing input validation, rate limiting, and other security best practices. Use SSL/TLS to encrypt data in transit and ensure that all communications are secure.

8. Testing and Quality Assurance

a. Automated Testing

Implement a comprehensive testing strategy that includes unit tests, integration tests, and end-to-end tests. Automated testing ensures that each component functions correctly and that interactions between services are seamless.

b. Performance Testing

Conduct performance testing to assess system behavior under load. Identify and address bottlenecks to ensure that both frontend and backend services perform optimally under varying conditions.

c. Security Testing

Perform security assessments to identify and mitigate vulnerabilities. Regular security testing helps protect the system against potential attacks and ensures data integrity.

d. User Acceptance Testing (UAT)

Engage end-users in testing to validate that the migrated system meets their requirements and expectations. UAT ensures that the user experience remains consistent and that all functionalities operate as intended.

9. Deployment Considerations

a. Set Up CI/CD Pipelines

Establish Continuous Integration and Continuous Deployment (CI/CD) pipelines to automate the building, testing, and deployment of both frontend and backend services. Tools like Jenkins, GitHub Actions, or GitLab CI can facilitate seamless deployments.

b. Utilize Containerization and Orchestration

Employ containerization tools like Docker to package applications consistently across environments. Use orchestration platforms such as Kubernetes to manage container deployments, scaling, and monitoring efficiently.

c. Plan for Zero-Downtime Deployments

Implement deployment strategies that minimize or eliminate downtime, such as blue-green deployments or canary releases. This ensures a smooth transition for users without disrupting their experience.

d. Monitor System Health

Implement monitoring and logging tools to track the health and performance of deployed services. Tools like New Relic, Datadog, or Prometheus can provide real-time insights and alert you to potential issues.

10. Incremental Migration Strategy

a. Adopt the Strangler Fig Pattern

Gradually replace parts of the monolithic system with new microservices or independent modules. This approach allows both the monolith and the new services to coexist during the transition, reducing risk and enabling continuous delivery.

b. Use Feature Flags

Implement feature flags to control the rollout of new functionalities. Feature flags allow you to toggle features on or off, facilitating testing and gradual user transitions without impacting the entire system.

c. Migrate Feature-by-Feature

Instead of a big-bang migration, transition one feature or module at a time. This approach minimizes disruption, allows for easier troubleshooting, and ensures that each migration step is manageable and verifiable.

11. Optimization and Monitoring

a. Implement Comprehensive Monitoring

Use monitoring tools to track performance metrics, error rates, and system health. Continuous monitoring enables proactive identification and resolution of issues, ensuring system reliability and performance.

b. Optimize for Performance

Fine-tune both frontend and backend services to enhance performance. Techniques include optimizing API responses, implementing efficient caching strategies, and minimizing latency through proper load balancing.

c. Continuously Refactor and Improve

Regularly review and refactor code to maintain quality and performance. Continuous improvement ensures that the separated architecture remains efficient, scalable, and maintainable over time.

12. Addressing Common Challenges

a. Coordination Across Teams

Effective collaboration and clear communication are essential. Utilize project management tools and maintain comprehensive documentation to ensure all team members are aligned and informed throughout the migration process.

b. Performance Bottlenecks

Separation can introduce additional network latency. Mitigate this by implementing efficient caching mechanisms, optimizing API calls, and ensuring that backend services are performant and responsive.

c. Maintaining Data Consistency

Ensure data consistency across services by implementing robust synchronization mechanisms and choosing appropriate consistency models, such as eventual consistency, where applicable.

d. Secure Authentication and Authorization

Transition to stateless authentication methods and ensure that all services enforce proper authorization checks. Secure communication channels and protect sensitive data throughout the system.

13. Best Practices

a. Start Small and Iterate

Begin the migration with non-critical components to gain experience and refine your approach. Iterative migration reduces risk and allows for adjustments based on lessons learned.

b. Maintain Clear Interfaces

Define and adhere to well-documented APIs to ensure seamless interactions between frontend and backend services. Clear interfaces facilitate easier integration and maintenance.

c. Automate Testing and Deployment

Leverage automation for testing, deployments, and monitoring to enhance efficiency, reduce errors, and ensure consistency across environments.

d. Foster Team Collaboration

Encourage open communication and collaboration between frontend and backend teams. Shared goals and mutual understanding streamline the migration process and address dependencies effectively.

e. Ensure Security at Every Step

Incorporate security best practices throughout the migration process. Protect data in transit and at rest, enforce strict access controls, and regularly assess the system for vulnerabilities.

Conclusion

Migrating from a monolithic architecture to a separated frontend-backend structure is a complex yet rewarding endeavor. By meticulously planning, adopting a phased migration strategy, and adhering to best practices, organizations can transform their systems to be more scalable, maintainable, and adaptable to evolving technological landscapes.

The key to a successful migration lies in incremental changes, robust testing, and continuous monitoring. Addressing challenges proactively and fostering a collaborative team environment will ensure that the new architecture not only meets current requirements but is also poised for future growth and innovation.
