Transmission Control Protocol (TCP) Header

A Comprehensive Guide to Understanding the Structure and Functionality of TCP Headers

Key Takeaways

Reliability: TCP headers ensure the reliable, ordered, and error-checked delivery of data across networks.
Flow Control: The Window Size field manages data flow, preventing the sender from overwhelming the receiver.
Connection Management: Control flags within the TCP header facilitate the establishment, maintenance, and termination of connections.

Introduction

The Transmission Control Protocol (TCP) is one of the cornerstone protocols of the Internet Protocol (IP) suite, enabling reliable and ordered communication between devices over a network. Central to TCP's functionality is the TCP header, a crucial component that carries essential control information for managing data transmission. Understanding the TCP header is fundamental for network engineers, cybersecurity professionals, and IT specialists aiming to optimize network performance and troubleshoot connectivity issues.

Structure of the TCP Header

Overview

The TCP header is a structured segment of data that precedes the actual payload in a TCP segment. It is responsible for managing various aspects of the data transmission process, including connection establishment, data flow control, error checking, and connection termination. A standard TCP header is 20 bytes in length, but it can extend up to 60 bytes when optional fields are included.

The modular structure of the TCP header allows for scalability and adaptability, accommodating various network conditions and application requirements. The header is divided into several fields, each serving a specific purpose in the communication process.

Detailed Breakdown of TCP Header Fields

Field	Size (bits)	Description
Source Port	16	Identifies the port number of the sender.
Destination Port	16	Identifies the port number of the receiver.
Sequence Number	32	Tracks the order of bytes within the TCP connection, ensuring data is reassembled correctly.
Acknowledgment Number	32	Indicates the next sequence number the sender expects to receive, confirming receipt of data.
Data Offset	4	Specifies the size of the TCP header in 32-bit words, determining where the data payload begins.
Reserved	3	Reserved for future use and must be set to zero.
Control Flags	9	Includes various flags that control the state and behavior of the connection (e.g., SYN, ACK, FIN).
Window Size	16	Indicates the size of the receiver's buffer, facilitating flow control by managing data transmission rates.
Checksum	16	Used for error-checking the header and data to ensure integrity.
Urgent Pointer	16	Points to the sequence number of urgent data, used when the URG flag is set.
Options	0–40	Optional fields that provide additional functionalities, such as Maximum Segment Size (MSS) or Window Scaling.

Mandatory vs. Optional Fields

The TCP header comprises mandatory fields that are essential for its basic operations and optional fields that enhance functionality. The mandatory fields include Source Port, Destination Port, Sequence Number, Acknowledgment Number, Data Offset, Reserved bits, Control Flags, Window Size, Checksum, and Urgent Pointer. Optional fields, collectively referred to as Options, are used to implement advanced features and must be padded to maintain a header length that is a multiple of 4 bytes.

Visual Representation of a TCP Header

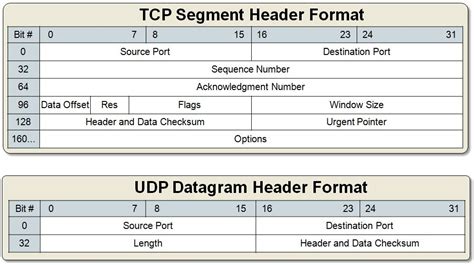

The following diagram provides a visual representation of a TCP header, highlighting the position and size of each field:

<!-- TCP Header Structure -->
  <div class="tcp-header">
    <span class="source-port">Source Port (16 bits)</span>
    <span class="destination-port">Destination Port (16 bits)</span>
    <span class="sequence-number">Sequence Number (32 bits)</span>
    <span class="ack-number">Acknowledgment Number (32 bits)</span>
    <span class="data-offset">Data Offset (4 bits)</span>
    <span class="reserved">Reserved (3 bits)</span>
    <span class="flags">Flags (9 bits)</span>
    <span class="window-size">Window Size (16 bits)</span>
    <span class="checksum">Checksum (16 bits)</span>
    <span class="urgent-pointer">Urgent Pointer (16 bits)</span>
    <span class="options">Options (0–40 bytes)</span>
  </div>

Key Features of the TCP Header

Reliability

One of the primary functions of the TCP header is to ensure reliable data transmission. This is achieved through the use of sequence numbers and acknowledgment numbers. The Sequence Number field tracks the order of bytes sent, allowing the receiver to reassemble data correctly even if packets arrive out of order. The Acknowledgment Number confirms the receipt of data, enabling the sender to retransmit lost packets and maintain data integrity.

Flow Control

Flow control is managed by the Window Size field, which indicates the amount of data the receiver is prepared to accept at any given time. This mechanism prevents the sender from overwhelming the receiver's buffer, ensuring smooth and efficient data transmission by adjusting the rate of data flow based on the receiver's capacity.

Connection Management

The TCP header contains various Control Flags that facilitate the establishment, maintenance, and termination of connections. Key flags include:

SYN (Synchronize): Initiates a connection by synchronizing sequence numbers between the sender and receiver.
ACK (Acknowledgment): Confirms the receipt of packets, acknowledging the successful reception of data.
FIN (Finish): Signals the termination of a connection, allowing for a graceful shutdown.
RST (Reset): Forces the termination of a connection, typically used in error conditions.
URG (Urgent): Indicates that the Urgent Pointer field is significant and points to urgent data within the segment.
PSH (Push): Requests that the data be pushed to the receiving application immediately.

Error Detection

The Checksum field is integral for error detection. Upon sending a segment, the sender calculates a checksum value encompassing both the header and the payload. The receiver recalculates the checksum upon receipt and compares it to the transmitted value. A mismatch indicates data corruption, prompting the receiver to request retransmission, thereby maintaining data integrity.

Congestion Control

While not directly represented in the TCP header, congestion control mechanisms are influenced by the header's fields, particularly the Window Size and the Control Flags. TCP dynamically adjusts the rate of data transmission based on network congestion signals, optimizing throughput while minimizing packet loss and latency.

Advanced Features and Options

TCP Options

TCP offers a range of optional fields that extend its functionality. These options must be properly aligned to ensure the header remains a multiple of 4 bytes. Common TCP options include:

Maximum Segment Size (MSS): Specifies the largest segment of data that the sender is willing to receive, optimizing packet sizes for network efficiency.
Window Scaling: Enhances the Window Size field for high-bandwidth, high-latency networks, allowing for larger window sizes beyond the 16-bit limit.
Selective Acknowledgment (SACK): Enables the receiver to inform the sender about all segments that have been received successfully, allowing for more efficient retransmission of lost packets.
Timestamps: Provides additional timing information to improve round-trip time measurements and overall network performance.

Padding

Due to the variable length of the Options field, Padding is used to ensure that the TCP header length remains a multiple of 4 bytes. This alignment is crucial for maintaining proper data structure and ensuring efficient processing by network devices.

Example of TCP Header Usage

Consider a scenario where a web browser initiates a connection to a server to request a webpage. The TCP header plays a vital role in this process through the following steps:

Connection Establishment: The browser sends a TCP segment with the SYN flag set, initiating the connection and synchronizing sequence numbers.
Server Response: The server responds with a segment containing both the SYN and ACK flags, acknowledging the receipt of the SYN and establishing its own sequence number.
Acknowledgment: The browser sends an acknowledgment with the ACK flag set, completing the three-way handshake and establishing a reliable connection.
Data Transmission: The actual data packets exchanged contain sequence and acknowledgment numbers ensuring ordered and reliable delivery. The Window Size manages the flow of data based on the receiver's capacity.
Connection Termination: Once the data transfer is complete, the browser sends a segment with the FIN flag, signaling the intention to terminate the connection. The server acknowledges with an ACK and may also send a FIN to gracefully close the connection from its end.

This example underscores the importance of the TCP header in managing the lifecycle of a network connection, ensuring data is transmitted efficiently and reliably from initiation to termination.

Conclusion

The TCP header is an indispensable element of the Transmission Control Protocol, providing the necessary infrastructure for reliable and ordered data transmission across networks. Its structured set of fields facilitates critical functions such as connection management, flow control, error detection, and congestion control. By meticulously managing these aspects, the TCP header ensures that data communication remains robust, efficient, and resilient against errors and network variances. Mastery of the TCP header's structure and functionalities is essential for professionals seeking to optimize network performance and troubleshoot complex connectivity issues.
