Types of Mechanical Calculators

Exploring the Evolution and Diversity of Mechanical Calculation Devices

Key Takeaways

• Mechanical calculators have evolved through various mechanisms, including gears, levers, and stepped drums, each enhancing computational capabilities.
• The classification of mechanical calculators can be based on their input methods, such as keyboard-driven, rotary, or lever-based systems.
• Notable historical models like the Pascaline, Arithmometer, and Curta have significantly influenced modern computing devices.

---

Historical Overview

Mechanical calculators represent a pivotal chapter in the history of computation, serving as the forerunners to today's electronic calculators and computers. These devices, which date back to the early 17th century, were designed to perform arithmetic operations mechanically, leveraging intricate systems of gears, levers, and other mechanical components. The evolution of these calculators reflects both technological advancements and the growing need for efficient computational tools in business, engineering, and scientific endeavors.

---

Classification of Mechanical Calculators

By Mechanism

Direct Drive Machines

Direct drive mechanical calculators are characterized by their simplicity, where the user directly manipulates the components that display the result. These machines typically feature a single register equipped with a carry mechanism. Direct drive calculators are further subdivided based on their input methods:

• Sliders: Devices like the Pocket Adding Machine utilize sliders to input numbers, translating manual movements into numerical calculations.
• Wheels: Machines such as the Addimat and Golden Gem employ chains analogous to number wheels to represent and process numerical input.
• Dials: Instruments like the Calcumeter and Dial-A-Matic use circular motions and dials to input and display numbers.

Semi-Direct Drive Machines

Semi-direct drive calculators incorporate mechanisms that update the register either during the input process or upon clearing the input. A notable example is the Conto, which adjusts the main register when the input dials are reset, ensuring that the calculation reflects the most recent inputs accurately.

Indirect Drive Machines

Indirect drive machines are more complex, featuring separate input and result registers. Calculations are initiated by turning a crank or lever, allowing for operations like multiplication through methods such as repeated addition or subtraction. These machines utilize various mechanisms, including:

• Stepped Drum: Employed in devices like the Leibniz Stepped Reckoner and Thomas Arithmometer, the stepped drum mechanism uses rotating drums with steps corresponding to numerical values, enabling efficient computation.

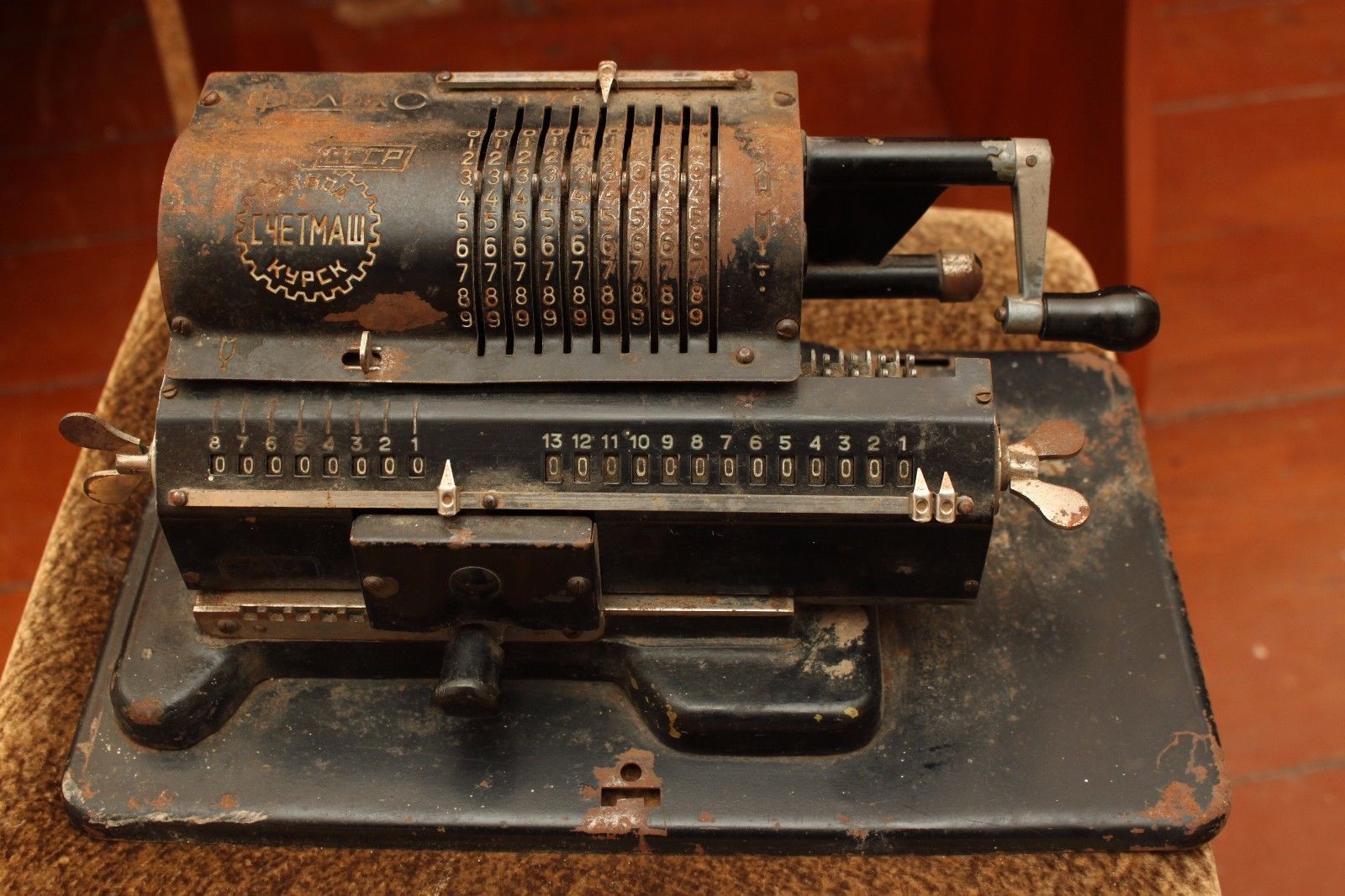

• Pinwheel: Calculators such as the Brunsviga and Original-Odhner utilize a gear equipped with retractable or extendable teeth, representing input digits through the positioning of these pins.
• Toothed Rack Mechanisms: The Mercedes-Euklid employs parallel racks that move different distances proportional to the input, facilitating accurate arithmetic operations.

By Input Method

Lever-Based Calculators

Lever-based mechanical calculators use a series of levers to represent numerical values. These calculators were prevalent in the early 19th century and were among the first mechanical devices capable of performing basic arithmetic operations like addition and subtraction. The movement of levers translates directly into numerical computations, making these machines intuitive for basic calculations.

Keyboard-Based Calculators

Full-Keyboard Key-Driven Calculators

These calculators feature a comprehensive keyboard where each key corresponds to a specific digit or operation. Users input numbers by pressing the relevant keys, and the machine processes these inputs to perform the desired arithmetic operations. This design was particularly favored in business and accounting environments due to its efficiency and speed.

Add-lister Calculators

Add-lister calculators are a subset of keyboard-based machines designed specifically for addition and listing operations. They often include mechanisms for printing calculation results on listing paper, making them particularly useful for bookkeeping and financial record-keeping.

10-Key Add-lister Calculators

Similar to their full-keyboard counterparts, 10-key add-lister calculators feature a layout akin to modern calculators, with ten keys representing digits. These machines are optimized for sequential digit entry and often incorporate printing functionalities, enhancing their utility in financial and administrative tasks.

Rotary Calculators

Rotary calculators utilize continuous rotational movements to perform calculations. These devices often incorporate handcranks and rotating mechanisms to input and process numerical data. The smooth rotational motion allows for rapid and efficient arithmetic operations, making rotary calculators a popular choice in both office and engineering settings.

Specialized Types

Portable Mechanical Calculators

Portable mechanical calculators are designed for mobility without compromising computational capabilities. The Curta calculator, introduced in 1948, is a prime example. Hand-cranked and compact, the Curta can perform all four basic arithmetic operations and, in some models, additional functions like logarithms. Its portability made it highly valued among engineers, scientists, and professionals who required on-the-go calculation power.

Electric Mechanical Calculators

Emerging in the early 20th century, electric mechanical calculators combine mechanical computation mechanisms with electric motors. This hybrid design enhances the speed and efficiency of calculations, reducing the manual effort required. Models such as the Smith-Corona-Marchant and Sumlock Comptometer leveraged electrical components to drive mechanical parts, paving the way for more advanced computational devices.

---

Notable Historical Models

The development of mechanical calculators is marked by several groundbreaking models that set the standard for computation in their respective eras. These models not only demonstrated innovative engineering but also fulfilled the practical needs of their users, from mathematicians to business professionals.

Pascaline (1642)

Invented by Blaise Pascal, the Pascaline is considered the world's first mechanical calculator. Designed to perform addition and subtraction, it utilized a system of geared wheels and dials. Each gear represented a digit, and the movement of these gears facilitated arithmetic operations. The Pascaline laid the foundational concepts for subsequent mechanical calculators.

Leibniz Stepped Reckoner (1672)

Gottfried Wilhelm Leibniz enhanced the capabilities of mechanical calculators by introducing the stepped drum, a mechanism that allowed for efficient multiplication and division through repeated addition and subtraction. The Stepped Reckoner could perform all four basic arithmetic operations, marking a significant advancement over earlier models like the Pascaline.

Arithmometer (1820)

Thomas de Colmar's Arithmometer was the first successful commercial mechanical calculator. It employed a combination of gears and levers to execute addition, subtraction, multiplication, and division. The Arithmometer's reliability and versatility made it the only mechanical calculator in production for nearly five decades, from 1851 to 1890.

Comptometer (1887)

The Comptometer, introduced in 1887, was the first key-driven calculator. Unlike earlier models that relied on dials or levers, the Comptometer featured a full keyboard where each key directly corresponded to a digit. This design significantly increased the speed and ease of data entry, making it a preferred tool for business and accounting purposes.

Curta Calculator (1948)

The Curta calculator represents the pinnacle of portable mechanical calculators. Designed by Curt Herzstark, the Curta is a compact, hand-cranked device capable of performing complex calculations, including addition, subtraction, multiplication, and division. Its precision engineering and portability made it an indispensable tool for professionals requiring reliable computation on the move.

---

Comparison of Mechanical Calculator Types

Type	Mechanism	Input Method	Notable Models	Primary Use
Direct Drive Machines	Gears, levers, sliders, wheels, dials	Direct manipulation	Calcumeter, Golden Gem	Basic arithmetic operations
Semi-Direct Drive Machines	Mixed input and register mechanisms	Dial clearing	Conto	Intermediate calculations with register updates
Indirect Drive Machines	Stepped drum, pinwheel, toothed racks	Crank or lever	Leibniz Stepped Reckoner, Brunsviga	Comprehensive arithmetic operations
Lever-Based Calculators	Series of levers	Lever manipulation	Early 19th-century calculators	Addition and subtraction
Keyboard-Based Calculators	Key-driven mechanisms	Full keyboard or 10-key layout	Comptometer, Addiator	Business and accounting
Rotary Calculators	Continuous rotating mechanisms	Handcrank rotation	Odhner Arithmometer	Office and engineering calculations
Portable Calculators	Hand-cranked, compact design	Hand crank	Curta	On-the-go calculations
Electric Mechanical Calculators	Hybrid electric and mechanical	Electric inputs with mechanical processing	Smith-Corona-Marchant models	Enhanced speed and efficiency for complex tasks

---

Mechanisms and Innovations

Stepped Drum Mechanism

The stepped drum, pioneered by Leibniz, is a cylindrical mechanism with a series of stepped notches corresponding to numerical values. As the drum rotates, pins on the gear engage these steps, facilitating precise arithmetic operations. This mechanism enabled mechanical calculators to handle multiplication and division through repeated addition and subtraction, significantly expanding their computational capabilities.

Pinwheel Mechanism

Pinwheel calculators utilize a gear with retractable or extendable pins to represent input digits. Each pin corresponds to a specific value, and the arrangement of these pins determines the number inputted. This mechanism allows for rapid and accurate data entry, making pinwheel calculators both reliable and efficient for continuous use.

Toothed Rack Mechanism

Toothed rack mechanisms involve parallel racks that move different distances based on the input, translating mechanical movements into numerical calculations. This mechanism is particularly effective in ensuring precise addition and subtraction, as it directly correlates physical movement with numerical output.

Lever and Gear Systems

Lever and gear systems form the backbone of many mechanical calculators, translating user inputs into mechanical movements that perform arithmetic operations. The interplay between levers and gears ensures that each input is accurately processed, allowing these calculators to maintain reliability and precision across various computational tasks.

---

Impact and Legacy

Mechanical calculators have left an indelible mark on the landscape of computation and technology. They not only facilitated complex arithmetic operations long before the digital age but also inspired the design and development of modern computing devices. The principles of mechanical computation, such as the use of gears and sequential processing, continue to influence contemporary computational theories and hardware designs.

Furthermore, the need for efficient computational tools in business, engineering, and scientific research drove innovation in mechanical calculator design, leading to increasingly sophisticated and user-friendly models. This demand underscored the critical role of accurate and reliable calculation in the advancement of various fields, cementing the importance of mechanical calculators in the broader narrative of technological progress.

---

Conclusion

The diverse array of mechanical calculators showcases the ingenuity and dedication of inventors to streamline and enhance computational processes. From the early designs of Pascal and Leibniz to the portable precision of the Curta, each type of mechanical calculator contributed uniquely to the evolution of computational technology. Understanding these devices offers valuable insights into the foundational mechanisms that underpin modern computing, highlighting a rich history of mechanical innovation that continues to inspire contemporary technological advancements.

---
