Understanding Aliasing in Data

Comprehensive Exploration of Aliasing Across Various Domains

aliasing concepts signal processing computer graphics programming

Key Takeaways

Definition of Aliasing: Aliasing refers to artifacts or distortions that occur when data is sampled or represented inadequately across different fields such as signal processing, computer graphics, and programming.
Contexts and Implications: The manifestation and impact of aliasing vary significantly depending on the domain, affecting everything from audio quality to software performance.
Prevention and Mitigation Techniques: Understanding and implementing appropriate anti-aliasing strategies is crucial to minimize distortions and ensure data integrity.

1. What is Data Aliasing?

Aliasing in data is a phenomenon where incorrect or misleading representations occur due to insufficient sampling or multiple references to the same data point. This can lead to distortions that obscure the true nature of the data, making accurate analysis or rendering challenging.

1.1. General Definition

At its core, aliasing is the misrepresentation of data that results when data is sampled below the necessary rate to capture its essential characteristics. This can occur in various fields, leading to different types of distortions or unintended behaviors.

2. Aliasing in Different Contexts

2.1. Signal Processing and Time Series Analysis

In signal processing, aliasing occurs when a continuous signal is sampled at a rate that is insufficient to capture its highest frequency components, resulting in different signals becoming indistinguishable in the sampled data.

2.1.1. Nyquist-Shannon Sampling Theorem

The Nyquist-Shannon Sampling Theorem is foundational in understanding aliasing. It states that to accurately reconstruct a signal without aliasing, it must be sampled at least twice the highest frequency present in the signal.

Mathematically, if $ f_{max} $ is the highest frequency in the signal, the minimum sampling rate $ f_s $ should be:

$$ f_s \geq 2 \times f_{max} $$

2.1.2. Effects and Examples

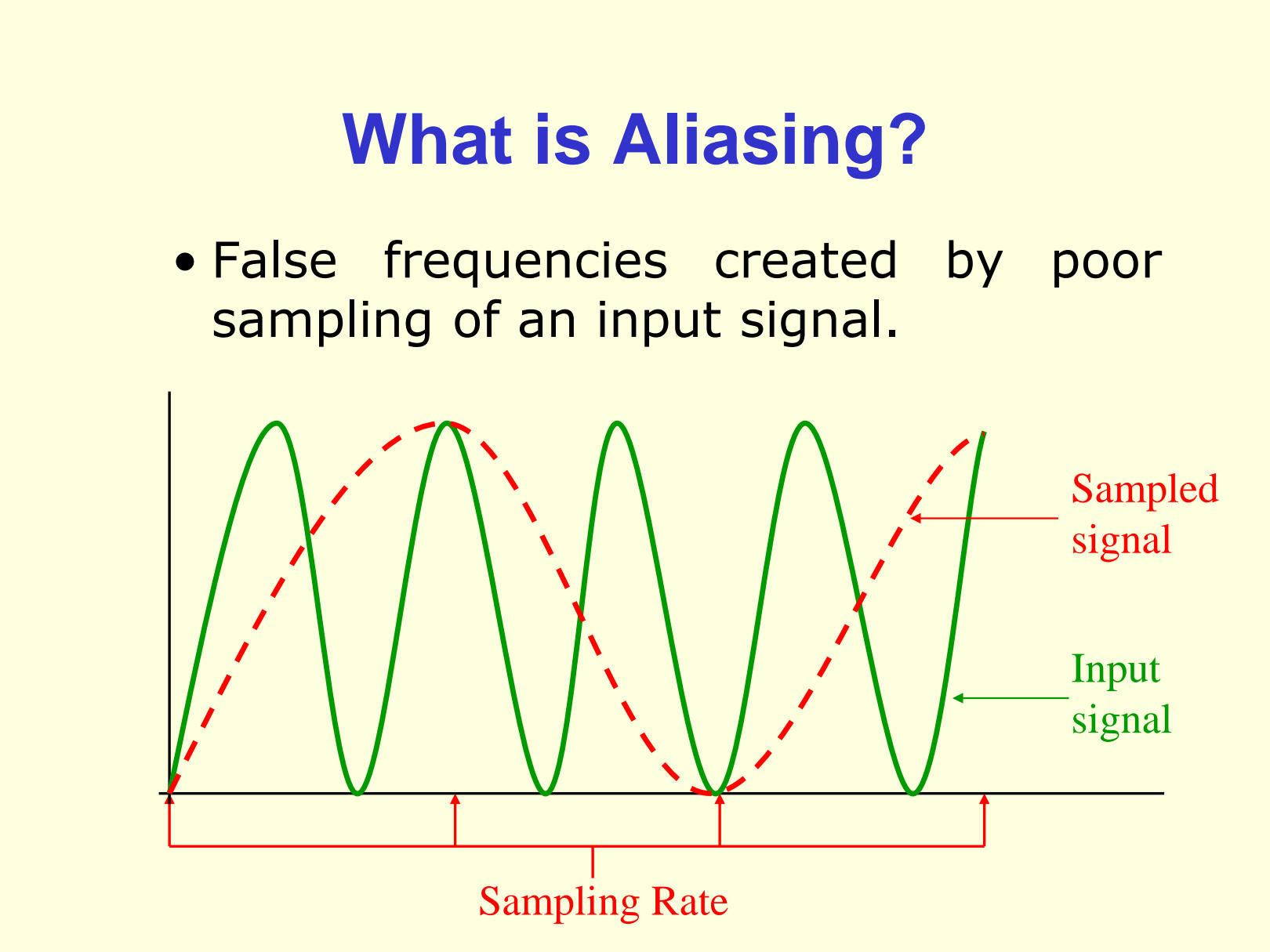

When the sampling rate is below the Nyquist rate, high-frequency components can masquerade as lower frequencies, a phenomenon known as aliasing. For instance, in audio processing, sampling a sound wave containing frequencies up to 20 kHz at 30 kHz can result in misrepresented frequencies, degrading sound quality.

2.1.3. Prevention Techniques

Use of anti-aliasing filters to eliminate frequencies above the Nyquist limit before sampling.
Ensuring appropriate sampling rates that meet or exceed the Nyquist criterion.

2.2. Computer Graphics

In computer graphics, aliasing manifests as jagged or stair-stepped lines, especially along diagonal edges, due to the discrete nature of pixel grids.

2.2.1. Visual Artifacts

Aliasing leads to visual artifacts such as jagged edges (also known as "jaggies") and moiré patterns, which degrade the visual quality of rendered images.

2.2.2. Anti-Aliasing Techniques

Supersampling: Involves rendering at a higher resolution and then downsampling to smooth out edges.
Post-Processing Filters: Techniques like FXAA (Fast Approximate Anti-Aliasing) and MSAA (Multi-Sample Anti-Aliasing) are applied after rendering to reduce jaggedness.
Edge Smoothing: Blending the colors of edge pixels with their neighbors to create the illusion of smoother lines.

2.3. Programming (Variable/Memory Usage)

In programming, aliasing refers to multiple variables or references pointing to the same memory location, leading to potential side effects and complicating code analysis.

2.3.1. Impact on Code

Complicates debugging as changes through one reference affect all aliases.
Limits compiler optimizations since the compiler must account for potential aliasing effects.
Makes code harder to understand and maintain due to implicit dependencies between variables.

2.3.2. Examples of Aliasing

Pointer Aliasing in C/C++: Multiple pointers referencing the same memory address.
Reference Aliasing in Fortran: Variables that reference the same data for controlled operations.
Alias Behavior in Scripting Languages: Such as Perl's foreach loops where variables can reference the same data.

2.3.3. Mitigation Strategies

Using immutable data structures to prevent unintended modifications.
Careful memory management and clear documentation to track variable references.
Employing compiler flags or annotations that inform the compiler about aliasing behavior.

2.4. Statistics and Experimental Design

In statistics, particularly within experimental design, aliasing refers to the confounding of effects such that multiple factors cannot be independently estimated from the collected data.

2.4.1. Confounding Effects

When designing experiments, especially factorial designs, certain combinations of factors can lead to confounded or aliased effects, making it impossible to discern the individual contributions of each factor.

2.4.2. Mitigation Techniques

Implementing fractional factorial designs that strategically select factor combinations to minimize aliasing.
Careful planning of experimental runs to ensure that critical effects remain estimable.

3. Aliasing in Singular Data Context

The term "singular data" typically refers to unique or isolated data points that do not represent periodic or continuous signals. In such contexts, aliasing as a phenomenon is generally not applicable because aliasing primarily concerns the misrepresentation of continuous or high-frequency data due to insufficient sampling.

3.1. Why Aliasing is Less Relevant for Singular Data

Aliasing arises from the interaction between data sampling rates and the inherent frequencies within continuous signals. Singular data points do not possess frequency characteristics that can cause aliasing.
In data analysis, singular data points are typically treated individually, and the concept of frequency sampling does not apply as it does with signals.

3.2. Potential Misinterpretations

However, if "singular" refers to unique events within a dataset, careful consideration should be given to how these points are treated during sampling or aggregation to avoid skewed representations. While not aliasing in the traditional sense, similar caution is required to preserve data integrity.

4. Practical Implications of Aliasing

4.1. Impact on Data Integrity

Aliasing can severely distort the true representation of data, leading to invalid conclusions in analyses or degraded quality in rendered images and sounds.

4.2. Challenges in Software Development

In programming, aliasing can introduce subtle bugs that are difficult to trace, especially in complex codebases where multiple references to the same data exist.

4.3. Consequences in Experimental Design

In statistical experiments, aliasing can obscure the effects of individual factors, making it challenging to identify causal relationships or optimize processes based on the data.

5. Prevention and Mitigation of Aliasing

5.1. In Signal Processing

Employ anti-aliasing filters to remove high-frequency components before sampling.
Ensure sampling rates comply with the Nyquist criterion.

5.2. In Computer Graphics

Utilize supersampling or other anti-aliasing techniques to smooth out jagged edges.
Implement post-processing filters to blend edge pixels for a more polished appearance.

5.3. In Programming

Adopt immutable data structures to prevent unintended modifications through multiple references.
Use tools and compiler options that help detect and manage aliasing.
Maintain clear and consistent documentation regarding variable references and data bindings.

5.4. In Experimental Design

Design experiments to minimize confounding factors using techniques like fractional factorial designs.
Ensure that critical factors are orthogonal to reduce aliasing effects.

6. Examples and Case Studies

6.1. Aliasing in Audio Processing

When recording sound, if the sampling rate is too low (e.g., below 40 kHz for human-audible sounds), high-frequency sounds can create aliases, resulting in a distorted or unpleasant audio output.


# Example of applying an anti-aliasing filter in Python using SciPy
import numpy as np
from scipy.signal import butter, lfilter

def anti_alias_filter(data, cutoff, fs, order=5):
    nyquist = 0.5 * fs
    normal_cutoff = cutoff / nyquist
    # Design Butterworth filter
    b, a = butter(order, normal_cutoff, btype='low', analog=False)
    # Apply filter
    y = lfilter(b, a, data)
    return y

# Usage
fs = 44100  # Sampling frequency
cutoff = 20000  # Cutoff frequency
filtered_data = anti_alias_filter(original_data, cutoff, fs)

6.2. Aliasing in Computer Programming

Consider the following C++ code snippet where aliasing can occur:


// Example of aliasing in C++
#include <iostream>
using namespace std;

int main() {
    int x = 10;
    int* ptr1 = &x;
    int* ptr2 = ptr1; // ptr2 is an alias for ptr1
    *ptr2 = 20; // Modifying x through ptr2
    cout << *ptr1; // Outputs 20, reflecting the change made via ptr2
    return 0;
}

In this example, both ptr1 and ptr2 reference the same memory location. Altering the value through one pointer affects the value accessed through the other, demonstrating aliasing in programming.

7. Conclusion

Aliasing is a multifaceted phenomenon that spans various domains including signal processing, computer graphics, programming, and statistics. Understanding its implications is crucial for ensuring data integrity, optimizing performance, and achieving high-quality outputs in respective fields. By implementing appropriate prevention and mitigation strategies, the adverse effects of aliasing can be effectively minimized, leading to more accurate and reliable results.
