Understanding OAuth: A Comprehensive Guide

Secure Delegated Access Without Sharing Credentials

secure authorization process

Key Takeaways

  • OAuth Framework: Enables secure, delegated access to user resources without exposing credentials.
  • Core Components: Involves roles like Resource Owner, Client, Authorization Server, and Resource Server.
  • Authorization Flows: Multiple flows (e.g., Authorization Code, Client Credentials) cater to different application needs.

What is OAuth?

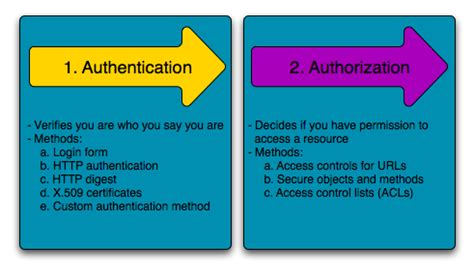

OAuth, short for Open Authorization, is an open-standard authorization framework that allows third-party applications to access user data without requiring users to divulge their credentials, such as passwords. It is primarily focused on authorization rather than authentication, making it a pivotal technology in enabling secure interactions between various online services.

Core Components of OAuth

1. Resource Owner

The Resource Owner is typically the end-user who owns the data or resources that an application (Client) seeks to access. For example, when you use a third-party app to access your Google Calendar, you are the Resource Owner.

2. Client

The Client refers to the application requesting access to the Resource Owner's data. This can be a web application, mobile app, or any other service that needs to interact with the Resource Server on behalf of the user.

3. Authorization Server

The Authorization Server is responsible for authenticating the Resource Owner and issuing access tokens to the Client. Examples include services like Google, Facebook, or GitHub, which manage user permissions and token issuance.

4. Resource Server

The Resource Server hosts the protected resources and validates access tokens to grant or deny access to the Client. Continuing with the previous example, Google's API servers act as the Resource Server when a third-party app requests access to your calendar data.


OAuth Authorization Flow

Overview of the Authorization Process

The OAuth authorization flow involves a series of steps that ensure secure and delegated access to resources. The most commonly used flow is the Authorization Code Flow, which is suitable for server-side applications. Below is a detailed breakdown of the typical OAuth 2.0 Authorization Code Flow:

Step 1: Authorization Request

The Client initiates the process by directing the Resource Owner to the Authorization Server. This is usually done by redirecting the user's browser to the Authorization Server's authorization endpoint.

  • The user is prompted to authenticate (if not already logged in).
  • The user is asked to consent to the permissions (scopes) the Client is requesting.

Step 2: Authorization Grant

Upon granting permission, the Authorization Server issues an Authorization Grant to the Client. This grant is typically an Authorization Code—a temporary code that the Client can exchange for an access token.

Step 3: Token Request

The Client sends the Authorization Code to the Authorization Server's token endpoint, along with its own credentials (Client ID and Client Secret), to authenticate itself.

Step 4: Access Token Issuance

The Authorization Server validates the Authorization Code and the Client's credentials. If valid, it issues an Access Token (and optionally a Refresh Token) to the Client.

Step 5: Resource Access

The Client uses the Access Token to make authenticated requests to the Resource Server. The Resource Server validates the token and, if valid, responds with the requested data.


Types of OAuth Flows

OAuth 2.0 defines several flows to accommodate different types of applications and use cases. Understanding these flows is crucial for implementing OAuth effectively.

1. Authorization Code Flow

Designed for server-side applications, this flow ensures that tokens are exchanged securely and are not exposed to the user's browser. It is considered the most secure OAuth 2.0 flow.

2. Implicit Flow

Intended for single-page applications (SPAs) where the Client runs entirely in the user's browser. While faster, it is less secure because Access Tokens are exposed to the browser.

3. Resource Owner Password Credentials Flow

This flow involves the user providing their credentials directly to the Client, which is generally discouraged and deprecated due to security risks.

4. Client Credentials Flow

Used for machine-to-machine (M2M) applications where no user is involved. The Client authenticates directly with the Authorization Server to obtain an Access Token.


Access Tokens and Refresh Tokens

Access Token

An Access Token is a short-lived token that grants the Client access to the Resource Server. It typically has a limited lifespan to enhance security.

Refresh Token

A Refresh Token is a long-lived token used to obtain new Access Tokens after the current one expires, eliminating the need for the user to re-authenticate.

Scopes

Scopes define the level of access that the Client is requesting. For example, a scope might specify read-only access to a user's email or full access to their calendar.

Token Type Purpose Lifetime
Access Token Grants access to protected resources Short-lived (minutes to hours)
Refresh Token Obtains new Access Tokens Long-lived (days to months)

Security Features of OAuth

OAuth incorporates several security measures to protect user data and ensure secure interactions between Clients and Resource Servers.

1. HTTPS Encryption

All OAuth interactions occur over HTTPS, ensuring that data transmitted between the Client, Authorization Server, and Resource Server is encrypted.

2. Token Expiration

Access Tokens are time-bound, reducing the window of opportunity for misuse if a token is compromised. Refresh Tokens can be revoked if necessary.

3. Scope Limitation

By defining scopes, OAuth ensures that Clients only access the resources necessary for their function, adhering to the principle of least privilege.

4. No Credential Sharing

Users never share their passwords with Clients. Instead, they grant access via tokens, minimizing the risk of credential leakage.

5. Token Revocation

Users or Authorization Servers can revoke tokens at any time, immediately cutting off access if suspicious activity is detected.


Use Cases for OAuth

OAuth is utilized in various scenarios where secure, delegated access is required without sharing user credentials. Here are some common use cases:

1. Single Sign-On (SSO)

OAuth enables users to log in to multiple applications using a single set of credentials, enhancing user experience and security.

2. Third-Party App Integration

Applications can request access to specific user data from other services (e.g., a fitness app accessing data from a health platform) without handling user passwords.

3. API Access

APIs often use OAuth to manage access permissions for different clients, ensuring that only authorized applications can interact with the API endpoints.

4. Social Media Integration

Allowing users to post content on social media platforms through third-party applications without revealing their social media credentials.


Advantages of Using OAuth

Implementing OAuth offers several benefits, enhancing both security and user experience:

  • Enhanced Security: By eliminating the need to share passwords, OAuth reduces the risk of credential theft.
  • Granular Access Control: Permissions can be finely tuned using scopes, granting only necessary access.
  • Improved User Experience: Users can grant access without the hassle of managing multiple passwords across services.
  • Scalability: OAuth supports various application types and flows, making it adaptable to different use cases.

Practical Example: "Login with Google"

Consider the scenario where you use the "Login with Google" feature on a third-party website:

  1. Authorization Request: The website redirects you to Google's Authorization Server.
  2. User Authentication: You log in to your Google account and consent to the website accessing specific data (e.g., your email address).
  3. Authorization Grant: Google issues an Authorization Code to the website.
  4. Token Exchange: The website exchanges the Authorization Code for an Access Token from Google.
  5. Resource Access: The website uses the Access Token to retrieve your email address from Google's APIs.

This process ensures that the website never handles your Google password, maintaining your credential security while providing seamless access.


Implementing OAuth: Best Practices

To effectively and securely implement OAuth in your applications, consider the following best practices:

1. Use the Authorization Code Flow

Prefer the Authorization Code Flow for server-side applications to ensure tokens are exchanged securely and not exposed to the user's browser.

2. Validate Redirect URIs

Ensure that the Redirect URI provided by the Client exactly matches the one registered with the Authorization Server to prevent redirection attacks.

3. Employ Proof Key for Code Exchange (PKCE)

Enhance security, especially for public clients, by implementing PKCE to mitigate authorization code interception attacks.

4. Limit Token Lifespans

Set appropriate expiration times for Access Tokens and Refresh Tokens to reduce the risk of token misuse.

5. Scope Minimization

Request only the scopes necessary for the application's functionality, adhering to the principle of least privilege.

6. Secure Storage of Tokens

Store tokens securely on the Client side, using secure storage mechanisms to prevent unauthorized access.

7. Regularly Rotate Credentials

Periodically update Client secrets and other credentials to minimize potential exposure from compromised credentials.


Common Pitfalls and How to Avoid Them

While OAuth is a robust framework, improper implementation can lead to security vulnerabilities. Here are common mistakes and strategies to avoid them:

1. Exposing Tokens in URLs

Access Tokens should never be included in URLs as they can be logged or exposed. Always transmit tokens in secure headers.

2. Ignoring Token Validation

Resource Servers must always validate the Access Token with the Authorization Server to ensure its legitimacy.

3. Mismanaging Redirect URIs

Allowing dynamic or unvalidated Redirect URIs can lead to open redirect vulnerabilities. Always use pre-registered URIs.

4. Failing to Implement PKCE

Without PKCE, Authorization Code interception attacks become feasible. Implement PKCE to enhance security.


Conclusion

OAuth serves as a fundamental framework for enabling secure, delegated access to user resources without compromising credentials. By understanding its core components, authorization flows, and best practices, developers can implement OAuth effectively to enhance security and user experience across diverse applications. Proper implementation ensures that users can confidently allow applications to interact with their data, fostering a safer and more interconnected digital ecosystem.
