Railway alignment refers to the precise positioning and direction of the railway track's centerline in both the horizontal and vertical planes. It is a fundamental aspect of railway engineering, dictating the path a train follows and significantly impacting factors such as safety, speed, capacity, and operational efficiency. A well-designed alignment is crucial because railway lines are capital-intensive to construct, and altering them after completion is difficult and costly due to existing structures and the challenge of acquiring additional land. Therefore, careful consideration during the initial planning stages is paramount to achieving an ideal alignment that serves its intended purpose effectively and economically.

A well-maintained railway track, illustrating the visible components of the permanent way.

Key Insights into Railway Alignment

Horizontal and Vertical Components: Railway alignment is fundamentally divided into two main components: horizontal alignment, dealing with the track's path in plan view (straights and curves), and vertical alignment, concerning the track's profile along its length (gradients and vertical curves). Both must be meticulously designed and integrated for smooth and safe train operation.
Factors Influencing Design: Numerous factors influence the selection and design of a railway alignment. These include the intended purpose of the line, traffic volume and type, required speed, topography, geological conditions, environmental considerations, and the presence of obligatory points like existing settlements or geographical features that the line must either pass through or avoid. Economic factors, such as construction, maintenance, and operational costs, are also critical considerations.
Importance of Precision and Maintenance: While initial alignment design is vital, maintaining the track geometry within strict tolerances over time is equally important. External factors like soil settlement, traffic loading, and environmental conditions can cause deviations from the designed alignment, leading to defects that compromise safety and ride quality. Regular inspection and maintenance are necessary to correct these deviations and ensure the track remains within acceptable limits.

The Dual Nature of Railway Alignment

The concept of railway alignment is best understood by examining its two primary dimensions: horizontal and vertical.

Horizontal Alignment: Navigating the Landscape

Horizontal alignment defines the railway track's path as viewed from above. It consists of straight sections and curves. Straight sections provide the most direct route and are generally preferred for high-speed travel. However, the terrain and existing obstacles often necessitate deviations from a straight line, requiring the incorporation of curves.

Components of Horizontal Alignment

Straight Sections: These are linear portions of the track. Longer straight sections allow for higher speeds, provided other factors like vertical alignment and train performance permit.
Circular Curves: These are arcs of a circle used to change the direction of the track. The radius of a circular curve is a critical design parameter, as it directly influences the maximum safe speed a train can negotiate the curve. Sharper curves (smaller radii) require lower speeds to counteract centrifugal forces and prevent derailment.
Transition Curves: Also known as easements, these are curves of continuously varying radius placed between straight sections and circular curves (or between two circular curves of different radii). Transition curves are essential for providing a gradual change in curvature, allowing trains to smoothly enter and exit curves. They also facilitate the gradual introduction or removal of superelevation (cant).

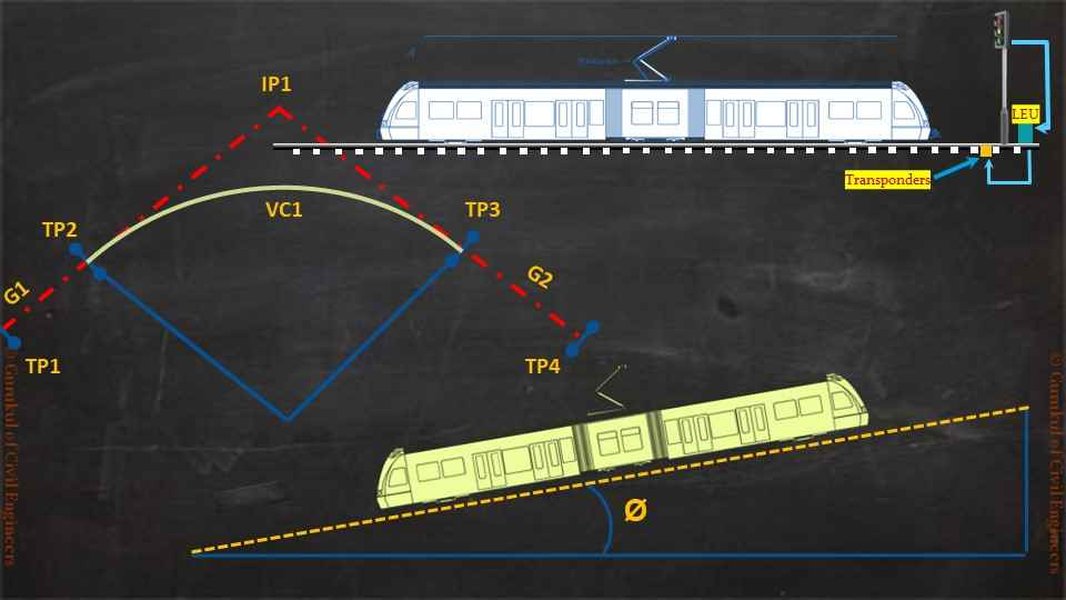

Diagram showing horizontal and vertical track alignment

Visual representation of horizontal and vertical alignment elements in railway track design.

Superelevation (Cant)

Superelevation, or cant, is the elevation of the outer rail above the inner rail on a curve. This banking helps to counterbalance the centrifugal force acting on a train as it rounds a curve, improving passenger comfort and reducing the risk of derailment, particularly at higher speeds. The amount of superelevation is carefully calculated based on the curve radius and the expected train speed. Excessive superelevation can be detrimental to slow-moving trains or stationary rolling stock.

Vertical Alignment: Managing Gradients and Elevation Changes

Vertical alignment defines the railway track's profile along its length, determining how the track rises and falls. It consists of gradients and vertical curves.

Components of Vertical Alignment

Gradients: A gradient, or grade, is the inclination or slope of the track relative to the horizontal plane. It is usually expressed as a percentage or a ratio (e.g., 1 in 100 means a 1-unit rise for every 100 units of horizontal distance). Gradients significantly impact train performance, affecting the tractive effort required for ascent and the braking effort needed for descent. Steeper gradients limit train length and speed, especially for freight trains.
Vertical Curves: These are parabolic or circular curves used to provide a smooth transition between different gradients. Vertical curves are essential for preventing abrupt changes in vertical acceleration, which can cause discomfort to passengers and impose excessive stresses on the rolling stock and track. There are two types of vertical curves: summit curves (connecting an ascending gradient to a descending gradient or a flatter ascending gradient) and valley curves (connecting a descending gradient to an ascending gradient or a flatter descending gradient).

Minimum recommended distances between horizontal and vertical elements are often specified in design standards to ensure smooth transitions and maintain track geometry. For instance, some standards recommend a minimum distance of 30 meters between the end of a horizontal element and the start of a vertical element on main tracks.

Factors Influencing Railway Alignment Selection

The process of selecting an optimal railway alignment is a complex undertaking that involves balancing numerous technical, economic, social, and environmental considerations. An ideal alignment aims to meet the purpose of the railway line while ensuring safety, efficiency, and cost-effectiveness.

Purpose and Traffic Requirements

The fundamental purpose of the new railway line is a primary driver for alignment selection. This could range from connecting major cities for high-speed passenger transport to serving industrial areas for freight movement or opening up undeveloped regions. The anticipated traffic volume and type of trains (passenger, freight, or mixed) dictate the required capacity, speed, and geometric standards of the alignment.

Topography and Geology

The natural terrain significantly influences the alignment. Navigating mountainous regions requires careful consideration of gradients and curves, often necessitating the construction of tunnels and bridges. Flatter terrain may allow for straighter alignments and higher speeds. Geological conditions, such as soil stability, the presence of rock formations, or potential for seismic activity, must be assessed to ensure the long-term stability and safety of the track.

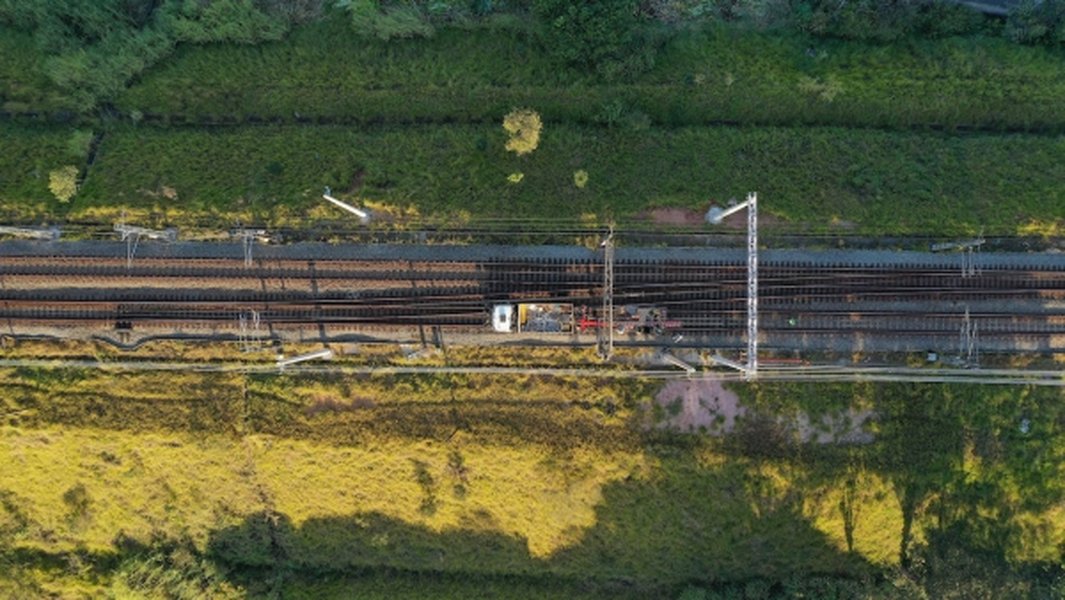

Satellite imagery showing railway lines across terrain

Satellite imagery is a valuable tool in the initial reconnaissance surveys for identifying potential railway alignments across diverse landscapes.

Obligatory Points

Obligatory points are locations that the railway line must either pass through or avoid. These can include existing cities and towns (to serve population centers), important industrial or resource sites, major river crossings, mountain passes, or environmentally sensitive areas and protected zones that must be bypassed. These points significantly constrain the possible alignment options.

Economic Considerations

Cost is a major factor in alignment selection. The aim is generally to minimize the total cost, which includes construction costs (influenced by the amount of earthwork, number of bridges and tunnels, and land acquisition), maintenance costs (affected by the complexity of the alignment and the need for ongoing track repairs), and operational costs (influenced by gradients, curves, and the resulting energy consumption and wear and tear on rolling stock). While a shorter route might seem most economical, challenging terrain can make a longer route with easier gradients and curves more cost-effective in the long run.

Safety and Comfort

An ideal alignment prioritizes the safety and comfort of passengers and the efficient movement of goods. This is achieved through careful design of curves, transitions, and gradients, ensuring that forces experienced by trains and passengers remain within acceptable limits. Proper superelevation on curves and smooth vertical transitions contribute significantly to ride quality and safety.

Environmental and Social Impacts

Modern railway alignment design also considers environmental and social impacts. This includes minimizing disruption to ecosystems, avoiding sensitive habitats, controlling noise and vibration, and considering the visual impact of the railway on the landscape. Social factors, such as land severance, community impacts, and the need for level crossings or grade separations, also play a role in the decision-making process.

Track Geometry and Alignment Maintenance

Track geometry is the three-dimensional positioning of the railway track, encompassing parameters like gauge, alignment, and vertical profile. While alignment refers to the intended center line, track geometry describes the actual physical state of the track. Maintaining the designed alignment and geometry within strict tolerances is crucial for safe and efficient railway operation.

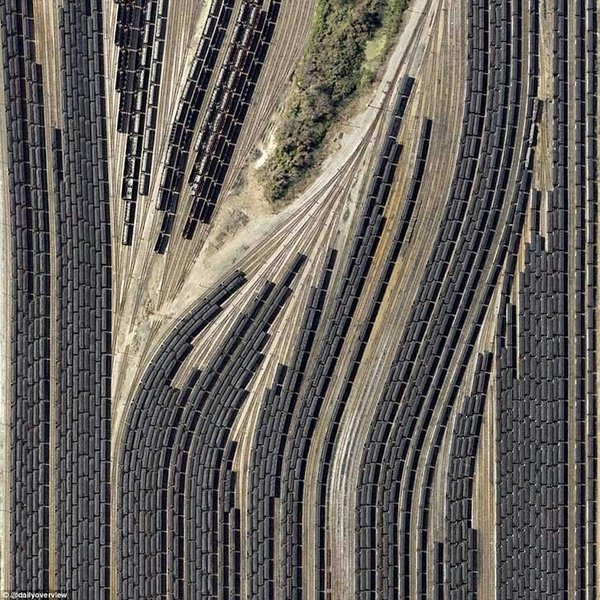

A railway yard demonstrates the complexity of track layouts and the importance of precise alignment for seamless movement of trains.

Common Alignment Defects

Over time, railway track alignment can deteriorate due to various factors, leading to defects that require correction. Some common defects include:

Horizontal Misalignment: Deviations from the intended horizontal curve or straight, often appearing as kinks or unevenness.
Vertical Misalignment: Deviations from the intended vertical profile, resulting in uneven gradients or irregular vertical curves.
Gauge Deviations: The distance between the inner faces of the rails deviating from the standard gauge.
Twist: A rotational deformation of the track where the two rails are not in the same plane across the track width.

Maintenance Practices

Regular inspection and maintenance are essential to identify and correct alignment defects. This often involves:

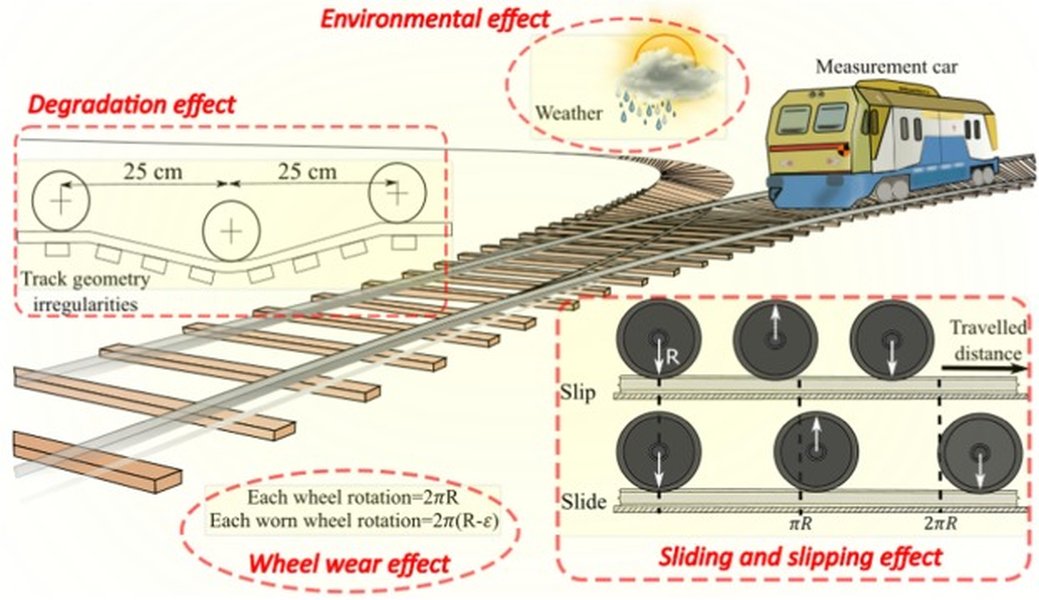

Track Recording Cars: Specialized vehicles equipped with sensors to measure track geometry parameters at operational speeds.
Manual Inspections: Visual inspections by track maintenance personnel to identify visible defects.
Tamping and Lining: Mechanical processes used to restore the correct vertical and horizontal alignment of the track by adjusting the position of the sleepers and compacting the ballast.
Grinding: Reshaping the railhead profile to correct wear and improve the wheel-rail interface, which can indirectly impact alignment stability.

The Role of Technology in Alignment Design and Maintenance

Modern railway alignment design and maintenance heavily rely on advanced technology. Software like Autodesk Civil 3D is used for creating and analyzing alignment designs, incorporating various constraints and design standards. Optimization algorithms are increasingly being explored to find the most economical and efficient alignments, considering complex cost functions and geometric constraints.

This video provides an overview of railway alignment design principles, including horizontal and vertical alignment considerations.

GPS and other surveying technologies are critical for accurately setting out new alignments and monitoring the position of existing tracks. Data from track recording cars is used to identify maintenance needs and prioritize interventions. These technological advancements contribute to more precise, safer, and cost-effective railway infrastructure.

Challenges in Railway Alignment

Designing and maintaining railway alignment presents several challenges. In densely populated urban areas, space constraints often necessitate sharper curves and complex layouts. Building high-speed lines requires very large radii curves and gentle gradients, which can be challenging in varied topography. The interaction between the track and the rolling stock is also a critical consideration, as track geometry defects can lead to excessive forces, wear, and even derailment.

Optimizing alignment is a complex problem with a vast number of potential solutions. Finding the truly optimal alignment that minimizes costs while meeting all technical and environmental requirements often requires sophisticated analysis and design tools.

Comparison of Horizontal and Vertical Alignment Components

To further illustrate the distinct yet interconnected nature of horizontal and vertical alignment, the following table highlights their key components and characteristics:

Alignment Type	Key Components	Purpose	Impact on Train Operation
Horizontal Alignment	Straight Sections, Circular Curves, Transition Curves	To define the track's path in the horizontal plane, navigating geographical and urban obstacles.	Influences maximum speed on curves, requires superelevation, affects ride comfort due to lateral forces.
Vertical Alignment	Gradients, Vertical Curves (Summit and Valley)	To define the track's profile along its length, managing changes in elevation.	Affects tractive and braking effort, influences train length and speed, impacts ride comfort due to vertical acceleration.

Frequently Asked Questions about Railway Alignment

What is the primary goal of railway alignment design?

The primary goal of railway alignment design is to determine the optimal position and direction of the railway track in both the horizontal and vertical planes to ensure safe, efficient, and economical train operation while considering technical, environmental, and social factors. It aims to minimize costs over the lifespan of the railway while maximizing operational performance and passenger comfort.

Why is it difficult to change a railway alignment after construction?

Changing a railway alignment after construction is challenging and costly due to several factors. These include the significant investment already made in the existing track structure, bridges, tunnels, and earthworks. Additionally, acquiring new land for an alternative alignment can be difficult and expensive, especially in developed areas. Disruption to existing railway services during construction is another major consideration.

How does track gauge relate to railway alignment?

Track gauge, the distance between the rails, is a fundamental parameter of the railway system. While not strictly part of the alignment geometry itself, the chosen track gauge influences the design parameters for horizontal curves and the necessary superelevation to ensure safe negotiation of curves at speed. Different gauges have different requirements for minimum curve radii.

What are obligatory points in railway alignment?

Obligatory points are specific locations that a railway alignment must either pass through or avoid. These can be geographical features like rivers or mountains, existing urban centers, industrial sites, or environmentally protected areas. These points act as constraints during the alignment design process, limiting the possible routes the railway can take.

How is railway alignment maintained over time?

Railway alignment is maintained through regular inspection and maintenance activities. This includes using track recording cars to measure track geometry, visual inspections, and corrective actions such as tamping and lining to adjust the position of the rails and sleepers and restore the designed alignment and geometry.
