Implementing a USD Renderer in Your Python Package

Comprehensive Guide to Rendering USD Files with Python

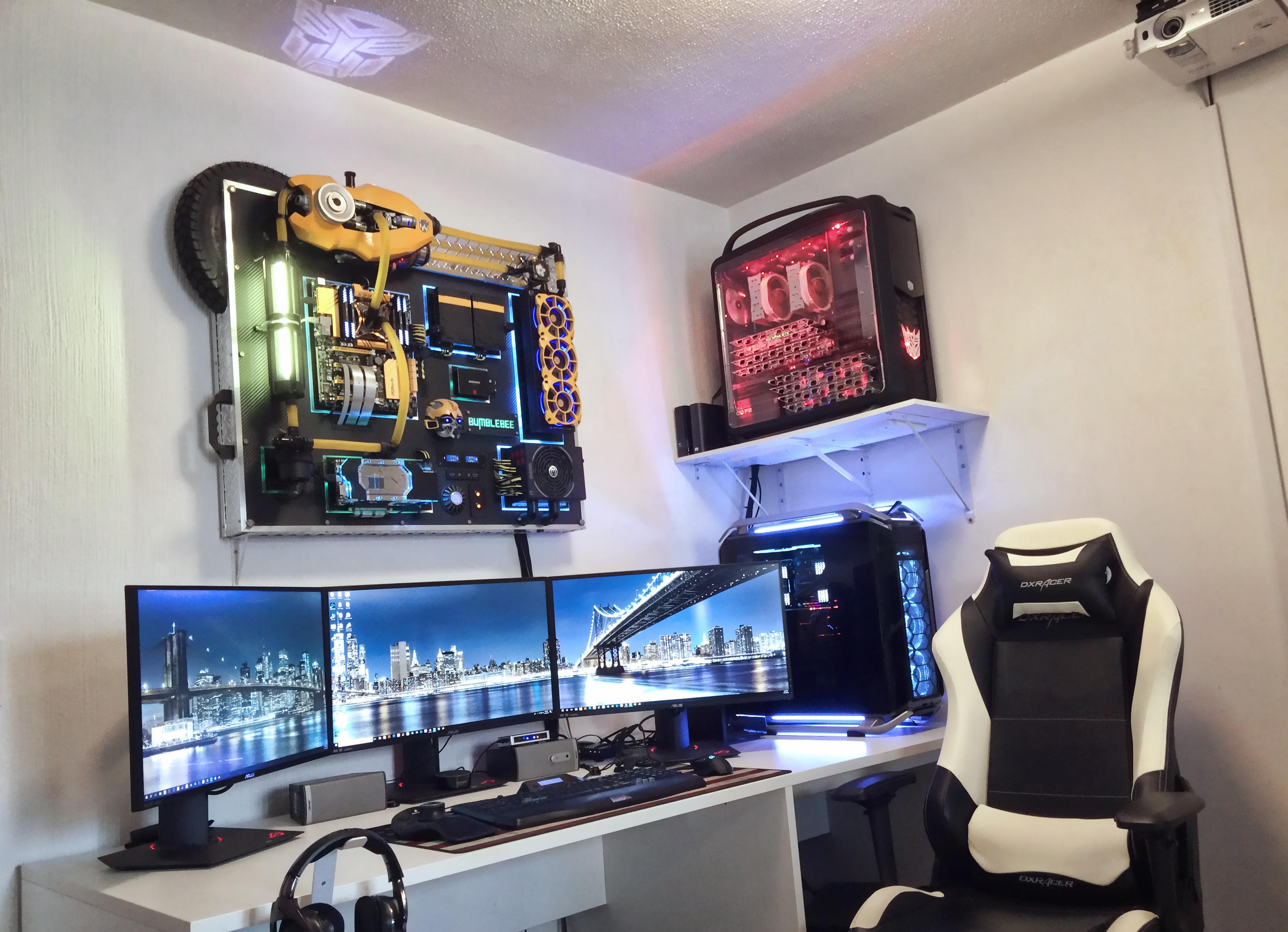

3d rendering computer setup

Key Takeaways

  • Utilize Pixar's USD Python API for direct and flexible rendering capabilities.
  • Leverage Hydra render delegates like Storm or Arnold for robust rendering frameworks.
  • Consider NVIDIA Omniverse Kit for advanced integration and high-performance rendering.

Introduction

Implementing a renderer in your Python package that can handle USD (Universal Scene Description) files involves choosing the right tools and frameworks to ensure flexibility, performance, and ease of integration. USD, developed by Pixar, is a powerful framework for 3D scene description, providing robust facilities for handling complex scenes, layering, and variability. This guide explores the best options available for implementing a USD renderer in Python, offering detailed insights and a prototype to help you get started.

Best Options for Implementing a USD Renderer in Python

1. Pixar's USD Python API

The USD Python API, part of the official USD SDK, offers comprehensive access to USD files and their rendering capabilities. It allows direct interaction with USD stages, manipulation of scene data, and configuration of render settings.

  • Advantages:
    • Direct and native integration with USD's rendering pipeline.
    • Highly flexible, allowing for extensive customization.
    • Supports a wide range of USD features and updates.
  • Use Cases:
    • Custom rendering solutions requiring deep integration with USD.
    • Projects that need to manipulate USD data programmatically.

2. Hydra Render Delegates

Hydra is USD's native rendering framework that supports integrating various renderers through render delegates. It provides a high-performance architecture suitable for both real-time and offline rendering.

  • Advantages:
    • Supports multiple render delegates like Storm, Arnold, and Redshift.
    • Facilitates real-time rendering and visualization.
    • Extensible, allowing the creation of custom render delegates.
  • Use Cases:
    • Projects requiring real-time feedback and interaction.
    • Integrations with third-party renderers for enhanced visual quality.

3. NVIDIA Omniverse Kit

NVIDIA Omniverse Kit provides a robust framework for working with USD files, including advanced rendering capabilities. It is designed for high-performance rendering and seamless collaboration.

  • Advantages:
    • RTX-accelerated rendering for high-quality visuals.
    • Seamless integration with NVIDIA's ecosystem and tools.
    • Supports collaborative workflows and real-time updates.
  • Use Cases:
    • High-fidelity rendering projects.
    • Collaborative environments requiring synchronization across multiple users.

4. Arnold USD Integration

Arnold, a renowned renderer, integrates well with USD through the arnold-usd repository. It offers advanced features and high-quality rendering capabilities.

  • Advantages:
    • Produces high-quality and photorealistic renders.
    • Extensive material and lighting support.
    • Active community and robust documentation.
  • Use Cases:
    • Projects demanding photorealism and advanced shading.
    • Professional-grade rendering pipelines.

5. SideFX Houdini USD Tools

SideFX offers specialized tools for rendering USD files within Houdini. While tailored for Houdini environments, these tools can be beneficial for specific workflows.

  • Advantages:
    • Seamless integration with Houdini's procedural workflows.
    • Powerful node-based interface for complex scene setups.
  • Use Cases:
    • Projects already utilizing Houdini for scene management.
    • Procedural content creation and manipulation.

6. Custom Renderer with Hydra

If existing render delegates do not meet your specific requirements, USD's Hydra framework allows you to develop custom renderers tailored to your project's needs.

  • Advantages:
    • Complete control over rendering processes and features.
    • Ability to implement specialized rendering techniques.
  • Use Cases:
    • Unique rendering requirements not covered by standard delegates.
    • Research and development of new rendering methodologies.

Comparative Overview of Rendering Options

Option Advantages Best Suited For
Pixar's USD Python API Direct integration, highly flexible, supports extensive USD features. Custom rendering solutions, deep USD manipulation.
Hydra Render Delegates Supports multiple renderers, real-time and offline rendering, extensible. Real-time applications, integration with third-party renderers.
NVIDIA Omniverse Kit RTX-accelerated, seamless NVIDIA ecosystem integration, collaborative workflows. High-fidelity rendering, collaborative environments.
Arnold USD Integration High-quality photorealistic renders, extensive material support. Professional-grade rendering, photorealism requirements.
SideFX Houdini USD Tools Procedural workflows, seamless Houdini integration. Procedural content creation, Houdini-centric projects.
Custom Renderer with Hydra Complete control, ability to implement specialized techniques. Unique rendering requirements, R&D projects.

Prototyping a USD Renderer with Pixar's USD Python API and Hydra

Below is a prototype implementation of a USD renderer using Pixar's USD Python API in conjunction with Hydra's Storm render delegate. This example demonstrates how to load a USD file, configure render settings, and perform rendering.

Prerequisites

  • Install the USD Python bindings. Follow the instructions from the OpenUSD official website.
  • Ensure Python is installed on your system.
  • Install necessary render delegates (e.g., Hydra's Storm renderer).

Prototype Code

from pxr import Usd, UsdGeom, UsdRender, Gf

class UsdRenderer:
    def __init__(self, usd_file_path):
        """
        Initialize the renderer with a USD file.
        """
        self.usd_file_path = usd_file_path
        self.stage = None
        self.render_settings = None

    def load_stage(self):
        """
        Load the USD stage from the file.
        """
        self.stage = Usd.Stage.Open(self.usd_file_path)
        if not self.stage:
            raise FileNotFoundError(f"Could not open USD file: {self.usd_file_path}")
        print(f"USD stage loaded successfully from {self.usd_file_path}")

    def create_render_settings(self, camera_path="/World/Camera", resolution=(1920, 1080), output_path="output.png"):
        """
        Create and configure render settings.
        """
        self.render_settings = UsdRender.Settings.Define(self.stage, "/Render/Settings")
        self.render_settings.CreateResolutionAttr(Gf.Vec2i(*resolution))
        self.render_settings.CreateCameraRel().SetTargets([camera_path])
        self.render_settings.CreateOutputsAttr({"color": output_path})
        print("Render settings configured.")

    def render_scene(self):
        """
        Render the scene using Hydra's Storm renderer.
        """
        if not self.stage or not self.render_settings:
            raise RuntimeError("Stage and render settings must be initialized before rendering.")

        # Initialize Hydra with Storm render delegate
        from pxr import HdStorm
        render_delegate = HdStorm.StormRenderer(self.stage)
        # Note: In a real implementation, additional setup for the render delegate would be necessary.

        # Trigger rendering process
        # Placeholder for rendering logic
        print("Rendering the scene... (Implementation depends on the render delegate specifics)")

        # Save the rendered output
        # Placeholder for saving the rendered image
        print(f"Render complete. Output saved to {self.render_settings.GetOutputsAttr().Get()['color']}")

if __name__ == "__main__":
    renderer = UsdRenderer("example.usd")
    renderer.load_stage()
    renderer.create_render_settings()
    renderer.render_scene()

Explanation of the Prototype

The prototype showcases a basic structure for a USD renderer:

  • Initialization: The UsdRenderer class initializes with the path to a USD file.
  • Loading the Stage: The load_stage method opens the USD file and loads the stage.
  • Configuring Render Settings: The create_render_settings method defines render settings, including resolution and output paths.
  • Rendering the Scene: The render_scene method initializes the Hydra Storm renderer and triggers the rendering process.

Note: This prototype is a simplified example. In a production environment, you would need to handle more complex scenarios, such as material assignments, lighting configurations, and error handling.


Advanced Implementation Considerations

1. Material Handling

Proper material assignments are crucial for achieving realistic renders. USD supports various material definitions, and integrating these into your renderer involves parsing and applying material properties correctly.

  • Use UsdShade for defining and managing materials within USD.
  • Ensure your renderer supports the material shaders and properties defined in your USD files.

2. Lighting Setup

Accurate lighting is essential for high-quality renders. Configure your renderer to recognize and process different light types defined in USD.

  • Parse light definitions from the USD stage and map them to your rendering engine's lighting system.
  • Support for various light types (e.g., point, directional, area lights) enhances render flexibility.

3. Arbitrary Output Variables (AOVs)

AOVs allow rendering of different components (e.g., depth, normals) separately, facilitating post-processing and compositing.

  • Implement support for AOVs in your render settings.
  • Ensure your renderer can output these variables alongside the main color pass.

4. Performance Optimization

Rendering can be computationally intensive. Optimize performance by leveraging multi-threading and GPU acceleration where possible.

  • Utilize Python's multi-threading or multi-processing capabilities to distribute rendering tasks.
  • Integrate GPU-accelerated rendering engines to enhance speed and efficiency.

5. Error Handling and Validation

Robust error handling ensures that your renderer can gracefully handle issues such as missing files, invalid configurations, or rendering failures.

  • Implement comprehensive try-except blocks around critical operations.
  • Validate input USD files and render settings before initiating the rendering process.

6. Integration with External Renderers

Enhance your renderer's capabilities by integrating with established rendering engines like Arnold, RenderMan, or Redshift.

  • Utilize available plugins or APIs provided by these renderers to facilitate integration.
  • Leverage their advanced features and optimizations to improve render quality and performance.

Extended Prototype: Integrating Arnold with USD

For projects requiring high-quality renders, integrating Arnold with USD can provide advanced shading and lighting capabilities. Below is an extended prototype demonstrating how to set up Arnold as the render delegate.

Prerequisites

  • Install the arnold-usd repository.
  • Ensure Arnold is properly configured and licensed on your system.
  • Install necessary Python bindings and dependencies.

Prototype Code

from pxr import Usd, UsdGeom, UsdRender, Gf
import arnold

class ArnoldUsdRenderer:
    def __init__(self, usd_file_path, output_path="arnold_output.exr"):
        """
        Initialize the Arnold USD renderer.
        """
        self.usd_file_path = usd_file_path
        self.output_path = output_path
        self.stage = None
        self.render_settings = None

    def load_stage(self):
        """
        Load the USD stage from the file.
        """
        self.stage = Usd.Stage.Open(self.usd_file_path)
        if not self.stage:
            raise FileNotFoundError(f"Could not open USD file: {self.usd_file_path}")
        print(f"USD stage loaded successfully from {self.usd_file_path}")

    def create_render_settings(self, camera_path="/World/Camera", resolution=(1920, 1080)):
        """
        Create and configure Arnold render settings.
        """
        self.render_settings = UsdRender.Settings.Define(self.stage, "/Render/Settings")
        self.render_settings.CreateResolutionAttr(Gf.Vec2i(*resolution))
        self.render_settings.CreateCameraRel().SetTargets([camera_path])
        self.render_settings.CreateOutputsAttr({"color": self.output_path})
        print("Arnold render settings configured.")

    def initialize_arnold(self):
        """
        Initialize Arnold for rendering.
        """
        arnold.AiBegin()
        arnold.AiMsgSetConsoleFlags(arnold.AI_LOG_WARNING | arnold.AI_LOG_ERROR)
        arnold.AiLoadPlugins()
        print("Arnold initialized.")

    def render_scene(self):
        """
        Render the scene using Arnold.
        """
        if not self.stage or not self.render_settings:
            raise RuntimeError("Stage and render settings must be initialized before rendering.")

        self.initialize_arnold()

        # Set Arnold as the render delegate
        from arnold import UsdToArnoldConverter
        convert = UsdToArnoldConverter()
        convert.ConvertStage(self.stage)

        # Placeholder for actual rendering commands
        print("Rendering with Arnold... (Implementation depends on Arnold's API specifics)")

        # Save the rendered output
        print(f"Render complete. Output saved to {self.output_path}")

        arnold.AiEnd()

if __name__ == "__main__":
    renderer = ArnoldUsdRenderer("example.usd")
    renderer.load_stage()
    renderer.create_render_settings()
    renderer.render_scene()

Explanation of the Extended Prototype

This extended prototype integrates Arnold as the rendering engine:

  • Initialization: The ArnoldUsdRenderer class sets up paths for the USD file and output.
  • Loading the Stage: The load_stage method loads the USD file.
  • Configuring Render Settings: The create_render_settings method defines render settings tailored for Arnold.
  • Initializing Arnold: The initialize_arnold method starts Arnold and loads necessary plugins.
  • Rendering the Scene: The render_scene method converts the USD stage to Arnold's format and triggers the rendering process.

Note: The actual rendering implementation would require detailed interaction with Arnold's API, including setting up cameras, lights, materials, and managing render passes.


Advanced Topics and Enhancements

1. Multi-threading and Parallel Rendering

To enhance rendering performance, especially for complex scenes, implement multi-threading or parallel processing techniques.

  • Use Python's concurrent.futures or multiprocessing modules to distribute rendering tasks.
  • Leverage GPU acceleration where supported by the rendering engine.

2. Real-time Rendering and Visualization

For applications requiring real-time feedback, integrate with real-time renderers or frameworks that support live updates.

  • Utilize Hydra's real-time capabilities with delegates like Storm.
  • Incorporate GUI elements or visualization tools to display renders dynamically.

3. Integration with 3D Modeling Tools

Enhance your renderer by integrating it with popular 3D modeling tools like Blender, Maya, or Houdini.

  • Export USD files directly from these tools to streamline the rendering pipeline.
  • Utilize plugins or APIs to facilitate seamless data transfer and rendering operations.

4. Support for Advanced Rendering Techniques

Implement support for advanced techniques such as ray tracing, global illumination, and physically-based rendering to achieve higher visual fidelity.

  • Integrate with renderers that support these techniques inherently.
  • Customize your render settings to fine-tune these effects according to project needs.

5. Automation and Batch Processing

Automate rendering workflows to handle large batches of USD files efficiently.

  • Develop scripts that can process multiple USD files sequentially or in parallel.
  • Implement logging and monitoring to track rendering progress and handle errors automatically.

Conclusion

Implementing a USD renderer in your Python package offers significant flexibility and power in handling complex 3D scenes. By leveraging tools like Pixar's USD Python API, Hydra render delegates, and NVIDIA Omniverse Kit, you can create a robust and high-performance rendering solution tailored to your project's specific needs. Whether you opt for real-time rendering, photorealistic outputs, or custom rendering workflows, the options discussed provide a solid foundation to build upon. The provided prototypes serve as starting points, which you can extend and customize to achieve the desired rendering capabilities.

References


Last updated January 21, 2025
Search Again
