Integrating YubiKey with BitLocker for Enhanced Drive Security

yubikey-arkiv • Cybersäkerhet och IT-säkerhet

Securing sensitive data is paramount in today's digital landscape, and BitLocker, Microsoft's built-in encryption tool, offers robust protection for your drives. Enhancing BitLocker's security with a YubiKey adds a physical layer of authentication, ensuring that only authorized users can access encrypted data. This comprehensive guide will walk you through the process of integrating a YubiKey with BitLocker, highlighting requirements, configuration steps, best practices, and key considerations to ensure a seamless and secure setup.

Understanding BitLocker and YubiKey

What is BitLocker?

BitLocker Drive Encryption is a full-disk encryption feature included with Microsoft Windows (available only in certain editions, such as Windows 10 Pro and Enterprise). It protects data by providing encryption for entire volumes, ensuring that data remains inaccessible without proper authentication, even if the physical drive is removed from the computer.

What is YubiKey?

YubiKey is a hardware authentication device produced by Yubico that supports one-time passwords, public key cryptography, and authentication protocols like FIDO2, U2F, and smart card (PIV) authentication. It acts as a second factor of authentication, providing an additional layer of security beyond traditional passwords.

Prerequisites for Integration

Hardware and Software Requirements

Operating System: Windows 10 Professional or higher editions (Windows 11 is also supported).
YubiKey Model: YubiKey 5 series or higher, which supports smart card functionality.
External Storage: An external hard drive, USB key, or a virtual hard drive for certificate storage.
Software Tools: YubiKey Manager and PowerShell for certificate generation and configuration.

Administrative Privileges

Ensure you have administrative rights on the Windows machine to access and modify BitLocker and Group Policy settings.

Step-by-Step Integration Guide

1. Configuring Your YubiKey

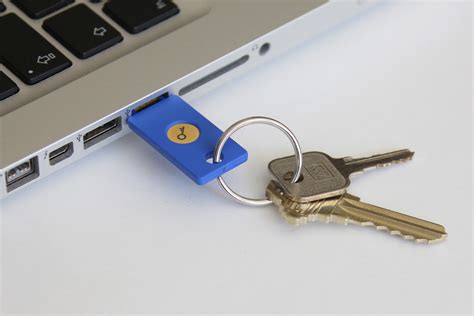

Insert YubiKey: Plug your YubiKey into an available USB port on your computer.
Open YubiKey Manager: Launch the YubiKey Manager application, which can be downloaded from the [Yubico website](https://www.yubico.com/product/yubikey-hardware/).
Configure PIV (Personal Identity Verification):
- Navigate to Applications → PIV → Configure Certificates → Card Authentication.
- Click Import and select the bitlocker-certificate.pfx file, which will be generated in the next step.
- Enter the password assigned to the certificate and enable the default management key by checking the corresponding box.

2. Generating a BitLocker Certificate

Open PowerShell: Launch PowerShell with administrative privileges.

Generate Certificate: Execute the following command to create a new certificate for BitLocker integration:

$cert = New-SelfSignedCertificate -Type Custom -Subject "CN=BitLocker YubiKey" -KeySpec Signature -KeyExportPolicy Exportable -HashAlgorithm sha256 -CertStoreLocation "Cert:\LocalMachine\My"

Export Certificate: Export the generated certificate to a .pfx file:

Export-PfxCertificate -Cert $cert -FilePath "C:\Path\To\bitlocker-certificate.pfx" -Password (ConvertTo-SecureString -String "YourStrongPassword" -Force -AsPlainText)

3. Configuring BitLocker to Use YubiKey

Access Local Group Policy Editor: Press Win + R, type gpedit.msc, and press Enter.
Navigate to BitLocker Settings: Go to Local Computer Policy → Administrative Templates → Windows Components → BitLocker Drive Encryption.
Enable Smart Card Certificate Validation:
- Double-click on Validate smart card certificate usage rule compliance.
- Set the policy to Enabled.
- Ensure the Object identifier is correctly set, typically to 1.3.6.1.4.1.311.67.1.1.

4. Encrypting the Drive with BitLocker

Initiate BitLocker: Open the BitLocker Drive Encryption interface via Control Panel or Settings.
Select Drive to Encrypt: Choose the drive you wish to encrypt (e.g., C: drive).
Choose Encryption Options: Select your preferred encryption mode (e.g., AES 128-bit or 256-bit).
Start Encryption: Follow the prompts to begin the encryption process.
Configure Unlock Method: After encryption, select Use smart card as the method to unlock the drive. This option enables the use of your YubiKey for authentication.

5. Verifying the Setup

Test Eject and Reinsert: Right-click the encrypted drive in File Explorer and select Eject. Remove the YubiKey, then reinsert it into the PC.
Unlock the Drive: Click on the encrypted drive in File Explorer. When prompted, select Use smart card and authenticate using your YubiKey.
Confirm Access: Ensure that the drive unlocks successfully, granting access to the encrypted data.

Alternative Methods and Enhancements

Using YubiKey with Windows Hello for Business

Beyond smart card integration, YubiKey can be utilized with Windows Hello for Business to provide multi-factor authentication. This setup enhances security by combining biometric authentication (like fingerprint or facial recognition) with the physical possession of the YubiKey.

Employing Third-Party Software

Certain third-party applications facilitate the use of YubiKey as an unlock method for BitLocker. These solutions may offer more streamlined integration or additional features, such as centralized management for enterprise environments.

Best Practices and Security Considerations

Ensure Compatibility

Not all YubiKey models support smart card functionality. Verify that your YubiKey 5 series or higher is compatible with the required authentication protocols and smart card operations.

Backup Your Certificates

Export and securely store backups of your BitLocker certificates. In the event of YubiKey loss or damage, these backups can be crucial for data recovery.

Maintain Updated Software

Regularly update both YubiKey firmware and Windows to ensure compatibility and security. Updates often include patches for vulnerabilities and enhancements for authentication protocols.

Protect Recovery Keys

BitLocker provides recovery keys that can be used to access encrypted drives if authentication methods fail. Store these keys in a secure, separate location to prevent unauthorized access while ensuring you can recover your data when needed.

Limit Physical Access

While YubiKey adds a robust layer of security, complementing it with physical security measures ensures that unauthorized individuals cannot access your device or the YubiKey itself.

Troubleshooting Common Issues

YubiKey Not Recognized

If your YubiKey isn't recognized by the system:

Ensure it's properly inserted into the USB port.
Try using a different USB port.
Update the YubiKey firmware using the [YubiKey Manager](https://www.yubico.com/products/services-software/download/yubikey-manager/).
Restart your computer to reset hardware connections.

BitLocker Encryption Issues

If BitLocker fails to encrypt the drive:

Verify that your system meets all BitLocker requirements.
Ensure that no other encryption tools are conflicting.
Check for sufficient disk space and system resources.
Review the event logs via Event Viewer for detailed error messages.

Certificate Errors

Encountering certificate-related errors may indicate issues with the certificate's validity or configuration:

Confirm that the certificate was correctly generated and imported.
Ensure that the certificate's object identifier (OID) is correctly set in Group Policy.
Re-import the certificate to the YubiKey if necessary.

Additional Resources

Conclusion

Integrating a YubiKey with BitLocker significantly enhances the security of your encrypted drives by adding a physical authentication factor. This setup ensures that even if an unauthorized party gains access to your password or PIN, they cannot decrypt your data without the physical YubiKey. By following the outlined steps and adhering to best practices, you can establish a robust defense against data breaches and unauthorized access, safeguarding your sensitive information effectively.
