Understanding Weak Perspective Projection

A comprehensive guide to theory and Python implementation without external libraries

Highlights

Concept: Weak perspective projection is an approximation that simplifies full perspective projection by assuming limited depth variation, treating all points as if they were at an average distance.
Mathematical Formulation: The technique involves scaling the X and Y coordinates using a factor derived from the average depth: s = f / z_avg, without performing individual perspective division.
Implementation in Python: You can program this projection using basic arithmetic operations and loops, efficiently mapping 3D points to 2D without relying on external libraries.

Introduction

Weak perspective projection is an essential tool in both computer graphics and computer vision, defined as a simplified version of the full perspective projection. Unlike full perspective projection where each 3D point is mapped using individual divisions by its depth coordinate (Z), weak perspective projection assumes that the depth variation in the object is minimal compared to the overall distance of the object from the camera. By doing so, it aggregates the perspective effect into a single uniform scaling factor.

This approach is particularly useful in scenarios where the camera’s field of view is narrow and the object in question is relatively distant, such that differences in Z coordinate for various points are negligible with respect to the average depth of the object. The practical benefit of using weak perspective projection lies in its computational efficiency and conceptual simplicity, making it ideal for rapid prototypes and situations where high-fidelity perspective details are not critical.

Conceptual Overview

Understanding the Basics

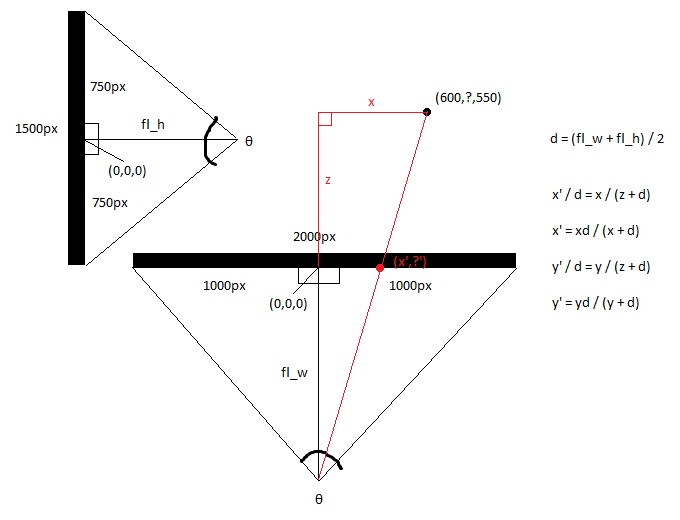

In the standard perspective projection model, specifically the pinhole camera model, a 3D point (X, Y, Z) is projected onto a 2D image plane using the equations:

u = f · (X / Z) and v = f · (Y / Z),

where f is the focal length of the camera. This model creates the realistic effect of objects appearing smaller as they are farther away. However, because each point requires a division by its individual Z value, the computations quickly become more complex, especially in scenes where a large number of points need rendering.

Weak perspective projection streamlines this process by substituting the variable Z with an average depth value z_avg. When the variation in the depth coordinate among the points is small, this approximation is valid and leads to:

$$ u = s \cdot X \quad \text{and} \quad v = s \cdot Y $$

where the scaling factor s is defined as:

$$ s = \\frac{f}{z_{avg}} $$

The key idea is that rather than performing a division on each coordinate using its specific depth, you compute a single s value based on the collective average depth of the object. This essentially transforms the perspective projection into an orthographic format with an additional scaling factor applied.

When and Why to Use Weak Perspective Projection

The method is ideally suited for:

Scenes where the depth variation (difference in Z values) is minor relative to the overall distance to the object.
Scenarios requiring computational efficiency where full perspective division for every point is impractical.
Applications in real-time graphics and initial stages of computer vision where a rough approximation of the object’s shape is sufficient.

As a direct consequence, weak perspective projection typically appears in cases involving face tracking, gesture recognition, and simplified rendering models where the computational cost must be minimized while still preserving a sense of depth.

Mathematical Formulation and Analysis

Formulating the Projection Equations

Consider a 3D point given by (X, Y, Z). In the context of weak perspective projection, one first computes the average depth z_avg for all points that constitute the object. The uniform scaling factor, s, is then calculated using the focal length f as:

$$ s = \\frac{f}{z_{avg}} $$

With this scaling factor, each point on the object is projected onto a 2D plane by simply applying:

$$ u = s \\cdot X \quad \\text{and} \\quad v = s \\cdot Y $$

In many practical applications, you might want to add translations to account for image coordinate system alignment. This introduces terms (u₀, v₀) as offsets:

$$ u = s \\cdot X + u_0 \\quad \\text{and} \\quad v = s \\cdot Y + v_0 $$

Here, (u₀, v₀) represent the principal point or any desired translation offset.

A Comparative Table: Full Perspective vs. Weak Perspective

Aspect	Full Perspective Projection	Weak Perspective Projection
Depth Variation	Uses individual Z values for each point	Assumes a near constant average depth (z_avg)
Computational Cost	Higher due to per-point division	Lower since only one scaling factor is used
Perspective Effect	Realistic depth cues	Simplified cues through uniform scaling
Application	High fidelity renderings in 3D	Real-time applications or shapes with limited depth variations

Step-by-Step Implementation in Python

Key Considerations for Implementation

When programming weak perspective projection without using any external libraries, you rely solely on Python’s built-in functions and constructs. The overall process can be encapsulated in the following steps:

1. Define Your Data Structure

Start by representing your 3D points. For simplicity, you could use a list of tuples or lists, where each 3D point is defined as (X, Y, Z).

2. Compute the Average Depth (z_avg)

Iterate through your 3D points to sum up the Z coordinates and then divide by the number of points. This provides the average depth, which is crucial for determining the scale factor.

3. Calculate the Scaling Factor

Use the formula:

$$ s = \\frac{f}{z_{avg}} $$

where f is your chosen focal length. This value might be based on camera specifications or an arbitrary value depending on the context.

4. Apply the Weak Perspective Projection

For each three-dimensional point (X, Y, Z), compute its projection onto the 2D plane by multiplying the X and Y coordinates by the scaling factor s. Optionally, you can add translation offsets (u₀, v₀) to adjust the position in the 2D coordinate system.

5. Store or Display the Result

Gather all computed 2D points for further processing such as display, rendering, or additional transformations.

Example Python Code for Weak Perspective Projection

Below is an example code snippet that demonstrates the implementation of weak perspective projection in Python without any external libraries. This code covers defining 3D points, computing the average depth, calculating the scaling factor, and projecting the points onto a 2D plane.


# Define a set of 3D points as a list of tuples (X, Y, Z)
points_3d = [
    (1.0, 2.0, 10.0),
    (2.0, 3.0, 10.0),
    (-1.0, 1.0, 10.0),
    (0.0, 0.0, 10.0)
]

# Step 1: Compute the average depth (z_avg)
total_z = 0.0
for point in points_3d:
    total_z += point[2]  # point[2] is the Z coordinate
num_points = len(points_3d)
z_avg = total_z / num_points

# Step 2: Define focal length and calculate the scaling factor s = f / z_avg
focal_length = 50.0  # focal length (can be chosen based on requirements)
s = focal_length / z_avg

# Optional: Define principal point translations (set to zero if not needed)
u0 = 0.0
v0 = 0.0

# Step 3: Project each 3D point using the weak perspective projection formula
projected_points = []  # List to store 2D projections
for point in points_3d:
    X, Y, Z = point
    u = s * X + u0
    v = s * Y + v0
    projected_points.append((u, v))

# Output the projected 2D points
print("Projected 2D points (u, v):")
for pt in projected_points:
    print(pt)

The above code performs these tasks simply by iterating through the list of 3D points, computing an average depth and scaling factor, and then projecting the X and Y coordinates accordingly. Notice that this implementation does not require any imports beyond Python’s built-in types and functions.

Detailed Breakdown of the Code

Data Definitions

The list of 3D points is defined as:

(1.0, 2.0, 10.0), (2.0, 3.0, 10.0), (-1.0, 1.0, 10.0), and (0.0, 0.0, 10.0)

In this scenario, all points share the same depth (Z = 10.0), which perfectly suits the weak perspective assumption. However, if minor variations in depth exist, the method will still hold provided the variations are small compared to the average depth value.

Computation of the Average Depth

The average depth, z_avg, is computed by summing the z-values of all points and dividing by the number of points. This average depth is a critical factor in determining the overall scaling effect.

Calculation of the Scaling Factor

The scaling factor, s, is computed as the ratio of the focal length to the computed average depth. By applying this scale uniformly across all points, you simulate the effect of projecting a 3D object onto a 2D plane.

Projection of Points

Each point (X, Y, Z) is then projected into 2D space by multiplying its X and Y values by s and adding any necessary translation values. The result is a list of 2D coordinates that maintain the relative spatial arrangement of the 3D points under the weak perspective approximation.

Advanced Considerations and Variations

Handling Depth Variations

While the basic assumption behind weak perspective projection is that depth variations are negligible, real-world data might contain small deviations. In such cases, you can still use weak perspective projection as an approximation, with the understanding that minor inaccuracies in spatial positioning may occur. For applications requiring higher accuracy, full perspective projection might be more appropriate, where the depth division is done individually for each point.

Adding Translation and Other Transformations

Beyond simple scaling, you can enhance the projection by adding translations that shift the entire set of points by fixed offsets (u₀, v₀). This is especially useful when you need to align the projected points with a specific image coordinate system. Additionally, you can introduce rotation matrices before or after the projection if the points need to be oriented differently.

Comparison with Other Projection Methods

Weak perspective projection serves as a bridge between the full perspective model, which offers hyper-realistic renderings at the expense of computational complexity, and orthographic projection, which offers a simple parallel projection without any perspective distortion. By implementing weak perspective, one strikes a balance, obtaining a semblance of depth without the need for complex per-point division.

Practical Applications

Computer Vision and Graphics

This projection technique is commonly used in areas where speed and computational simplicity are critical. Applications include:

Face detection and tracking, where the shape of the face is approximated using landmarks.
Gesture recognition systems that monitor the relative positioning of key points in the human body.
Initial object modeling and rendering tasks where full-blown perspective rendering is not necessary.

Real-Time Systems

In real-time systems, such as augmented reality or interactive simulations, the efficiency of weak perspective projection can be a significant advantage. Reducing the amount of arithmetic carried out per frame can lead to improved performance, especially on limited hardware.

Educational Use

Due to its simplicity and the way it bridges orthographic and perspective projections, this method is often introduced in academic courses focused on computer vision and graphics. It demonstrates important concepts like projection matrices, scaling factors, and translation, all of which are foundational to understanding more complex models in the field.

Conclusion

Weak perspective projection provides a practical, computationally efficient method to approximate depth in 3D to 2D transformations. By assuming that depth variations are minimal, the technique uses an average depth to compute a single scaling factor, which is then applied uniformly to all points in the scene. The approach, while less accurate than full perspective projection, offers a balance between simplicity and the need to preserve some depth information.

Programming weak perspective projection in Python without external libraries is straightforward: define your 3D points, compute the average depth, derive the scaling factor using the focal length, and project the X and Y coordinates of each point accordingly. This method is particularly useful in applications where full perspective effects are unnecessary or when computational resources are limited. The sample code provided serves as a template that can be further refined with additional features such as rotations or more complex transformations.

In summary, the weak perspective projection is both an instructive concept and a practical tool for many real-time applications, bridging simplicity and the need for a sense of dimensionality. Whether you are an educator, a student, or a practitioner in computer vision and graphics, understanding and implementing this projection model is a valuable exercise that opens doors to more advanced topics in spatial transformation and rendering.
