Zen 5 Microarchitecture Detailed Overview

An In-Depth Look at AMD's Ground-Breaking CPU Architecture

Highlights

Improved IPC and Execution Efficiency: Approximately 16% IPC enhancement, wider dispatch, and re-pipelined front-end.
Advanced Branch Prediction & Dual-Pipe Fetch: Enhanced branch prediction with dual decode pipelines ensuring reduced latency.
Integrated AI and Optimized Manufacturing: Inclusion of dedicated AI/ML optimizations and advanced 4nm/3nm fabrication techniques.

Introduction

The Zen 5 microarchitecture represents a pivotal evolution in AMD’s processor design strategy. Building on the successes of Zen 4, it introduces several key enhancements aimed at improving performance, efficiency, and versatility across AMD’s comprehensive product lineup. These improvements are not only a testament to AMD’s commitment to innovation but also a significant step towards meeting the increasing demands of applications in gaming, productivity, artificial intelligence, and data center workloads.

Core Architectural Enhancements

Fundamental Redesign and Improved IPC

One of the most significant achievements of Zen 5 is the reported 16% improvement in instructions per cycle (IPC) over its predecessor, Zen 4. This enhancement is pivotal as it translates to more instructions processed per clock cycle, thereby elevating overall performance without necessarily requiring higher clock speeds. AMD achieved this through several innovations including a re-pipelined front end and a widened execution engine.

The re-pipelined front end in Zen 5 allows for a more efficient way of fetching and decoding instructions. The wider front-end, when combined with enhanced execution units, ensures multiple instructions are dispatched and retired concurrently. This results in superior throughput, notably impacting applications that are sensitive to processing delays.

Dual-Pipe Fetch and Advanced Branch Prediction

Zen 5 introduces a dual-pipe fetch mechanism aimed at further optimizing the instruction pipeline. This design aids in preloading instructions from different paths, greatly reducing idle CPU cycles typically caused by mispredicted branches. Advanced branch prediction is further bolstered by integrating a two-ahead branch prediction system, which anticipates the next set of instructions more accurately and diminishes the penalty associated with branch misprediction.

The dual-pipe fetch not only speeds up the initiation of instructions but also pairs effectively with the enhanced branch prediction logic, ensuring that the execution units remain engaged. This careful orchestration improves performance in sequential as well as parallel computing tasks.

Enhanced Execution Engine and Data Paths

The execution engine in Zen 5 is significantly refined, featuring an 8-wide dispatch and retire system compared to the 6-wide system seen in its predecessors. This upgrade enables the architecture to handle more simultaneous tasks, effectively increasing computational throughput for compute-intensive operations.

Additionally, Zen 5 incorporates a full 512-bit AVX-512 datapath rather than merely combining two 256-bit paths. This particular enhancement is critical for floating-point operations, especially in tasks that rely on heavy numerical computations. The integrated datapath supports six pipelines with a two-cycle latency for floating-point addition (FADD), a critical metric for applications such as scientific simulations, video processing, and other data-intensive workloads.

Memory, Cache, and Integration Enhancements

Memory Support and Bandwidth

Alongside core improvements, Zen 5 supports high-performance memory configurations. It is compatible with DDR5 memory running at speeds up to 5600 MT/s in dual-channel mode, significantly boosting memory bandwidth and overall system responsiveness. High-speed memory ensures that data is fed rapidly to the processor, thereby reducing latency particularly in multi-threaded and high-demand applications.

Cache Architecture Innovations

Cache enhancements play a crucial role in modern microarchitectures, and Zen 5 is no exception. The design includes robust L1, L2, and L3 cache hierarchies with innovative configurations aimed at minimizing data access delays. For example, Zen 5 features an enlarged L1 data cache – up to 48 KB with a 12-way design – which effectively doubles the bandwidth available compared to previous generations. This cached data directly influences the speed of data retrieval, particularly in scenarios demanding high-frequency memory access.

The efficient handling of cached data facilitates an overall architecture that is more adept at managing both large data sets and highly iterative computations, enhancing both throughput and consistency in performance.

AI and Machine Learning Integration

A standout feature in Zen 5 is its integrated focus on AI and machine learning optimizations. This integration includes specialized processing units, such as a dedicated Neural Processing Unit (NPU), which are designed to accelerate AI computations. For instance, certain implementations of Zen 5 come with the XDNA 2 NPU providing significant TOPS (trillions of operations per second) performance, aligning with emerging requirements for real-time AI inference and complex data analysis.

These optimizations ensure that the processors are not only suited for traditional computing tasks but are also well prepared for the burgeoning fields of deep learning and machine learning, thereby maintaining competitive performance in evolving technological landscapes.

Fabrication Process and Efficiency

Advanced Process Technologies

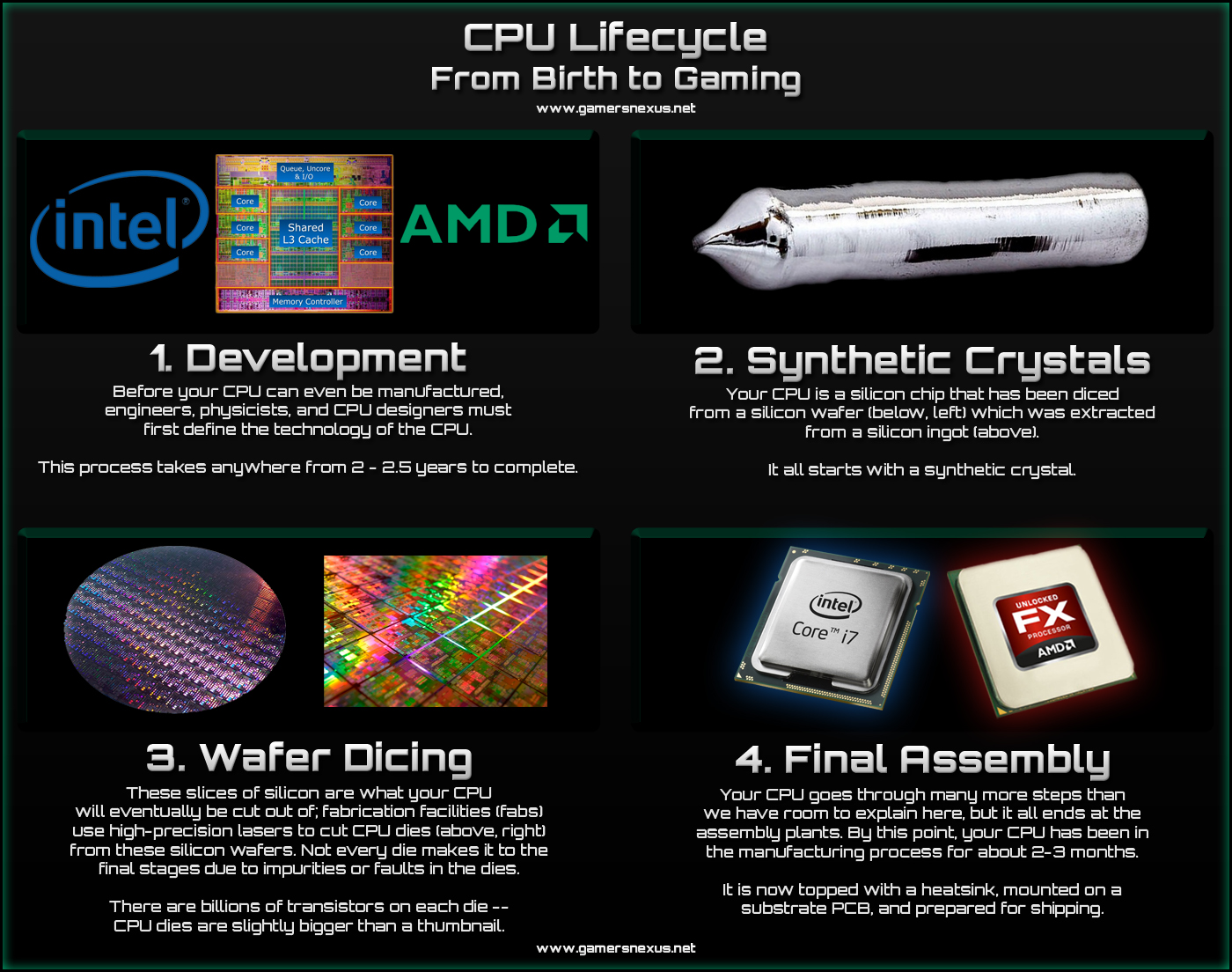

Fabrication process plays an instrumental role in the performance and efficiency of a microarchitecture. Zen 5 is fabricated using TSMC's N4X process, with plans to move to even smaller nodes such as 3 nm in future iterations. The transition to these advanced nodes is key to achieving both performance gains and power efficiency improvements.

The use of these refined process technologies allows for a higher transistor density and improved thermal properties. This not only paves the way for higher clock speeds but also significantly reduces power consumption—a vital consideration in today’s mobile and high-performance computing environments.

Hybrid Core Configurations

Zen 5 also leverages hybrid core configurations by incorporating both traditional performance cores and smaller, efficient cores known as Zen 5c. These compact cores are approximately 25% smaller than their standard counterparts. This approach facilitates a mixed core deployment strategy, where power-sensitive tasks can be handled by the efficient cores while resource-intensive tasks leverage the full performance cores.

This hybridization of cores is particularly beneficial in optimizing power usage across different workload types, ensuring that the architecture can dynamically adjust to varying performance demands without compromising on efficiency.

Product Integration and Market Applications

Desktop and Mobile Processor Lines

Zen 5 serves as the cornerstone for several new AMD product lines. The Ryzen 9000 series desktop processors, codenamed "Granite Ridge," are a flagship example of how this microarchitecture is being generatively applied to deliver performance leaps in consumer-grade computing.

In the mobile arena, the Ryzen AI 300 series—codenamed "Strix Point"—is tailored for laptops, combining high computational performance with integrated RDNA 3.5 graphics and AI-specific acceleration units. These mobile processors are engineered to tackle a diverse range of applications from high-end gaming to advanced productivity tasks, embodying a balance between power efficiency and raw performance.

Server-Class Performance

On the enterprise front, Zen 5 is also set to underpin AMD's 5th Generation EPYC server processors, codenamed "Turin." These processors are designed to address the rigorous demands of data centers and cloud computing environments, offering enhanced core counts and robust multi-threading capabilities.

The server implementations emphasize raw computational throughput and reliability, ensuring that data centers can run complex workloads efficiently while also benefiting from the improved power efficiency that Zen 5 offers.

Compatibility and Market Transition

An additional advantage of Zen 5 is its backward compatibility with existing AM5 motherboards. This forward-thinking design consideration allows users to upgrade to the new processors without overhauling their entire system infrastructure, thereby easing the transition for consumers and enterprises alike.

The market strategy behind Zen 5 underlines AMD’s commitment to balancing innovation with practical considerations, ensuring that the new microarchitecture not only sets new benchmarks in performance but also seamlessly integrates with existing ecosystems.

Detailed Specification Table

Feature	Description
IPC Improvement	Approximately 16% improvement over Zen 4 through a re-pipelined front end and wider dispatch system.
Branch Prediction	Advanced dual-pipe fetch and two-ahead branch prediction system to reduce latency.
Execution Engine	8-wide dispatch and retire system and full 512-bit AVX-512 datapath for enhanced floating-point operations.
Memory & Cache	Supports DDR5 at up to 5600 MT/s; enlarged L1 cache (48 KB, 12-way) and high-throughput L2/L3 caches.
AI Integration	Embedded AI and machine learning optimizations including dedicated NPUs (e.g., XDNA 2 NPU for enhanced TOPS performance).
Fabrication Process	Manufactured on TSMC’s 4nm (with a trajectory towards 3nm) technology for improved power efficiency and density.
Core Configurations	Supports both standard performance cores and compact Zen 5c cores, allowing for a hybrid approach to load optimization.
Product Lines	Ryzen 9000 Desktop (Granite Ridge), Ryzen AI 300 Mobile (Strix Point), 5th Gen EPYC Servers (Turin).

Implications for the Future of Computing

Technological Impact

The Zen 5 microarchitecture not only builds on the successes of previous generations but also lays a robust foundation for future technological advancements. With the integration of AI-specific hardware acceleration, advanced memory architectures, and improved efficiency at the silicon level, Zen 5 is engineered to cater to the demanding needs of next-generation computing paradigms.

Applications in high-performance computing (HPC), real-time data analytics, and cloud computing will greatly benefit from the increased throughput and efficiency provided by Zen 5. The combination of higher IPC and improved data handling also translates to more energy-efficient solutions—a key factor as the industry moves towards greener and more sustainable computing practices.

Market Competitiveness

In a fiercely competitive CPU market, Zen 5 positions AMD to maintain—if not extend—its competitive edge against rivals. With performance gains that are visible across desktop, mobile, and server segments, AMD’s strategy with Zen 5 is to offer a scalable and versatile solution. This approach allows them to address the varying requirements of different sectors while setting the stage for continued innovation in subsequent generations.

Moreover, the compatibility with existing AM5 platforms combined with efficient power management practices paves the way for smoother transitions for current users, ensuring that upgraded performance does not come at the expense of elevated power consumption.

Software and Ecosystem Optimization

Enhanced Software Support

Software optimization remains a critical part of fully leveraging hardware improvements. With Zen 5, developers find a platform that offers ample potential for parallel processing and enhanced multi-threaded performance. As software continues to evolve to take better advantage of these microarchitectural advances, applications across both consumer and professional markets can expect significantly higher performance and efficiency.

Many modern applications are already being optimized for operation on multi-core and multi-threaded environments, meaning that the architectural refinements in Zen 5 translate directly to smoother performance in real-world applications—from 3D rendering and video editing to gaming and scientific computing.

Security and Reliability

Alongside performance, Zen 5 incorporates design improvements focused on security and system integrity. Enhanced branch prediction and streamlined data pathways help safeguard against certain types of speculative execution vulnerabilities. Such measures are critical not only in personal computing but also in enterprise and server environments where data security is paramount.

The focus on robust and secure microarchitectural components meets industry needs and ensures that Zen 5 will be a foundational element in both consumer and enterprise technologies for years to come.
