Unlocking Material Secrets: How Lock-In Amplifiers Reveal dI/dV

Measuring the subtle changes in electrical conductance to probe the quantum world with enhanced precision.

Highlights

Probing Electronic States: Differential conductance (dI/dV) measurements, amplified by lock-in techniques, provide direct insights into the Density of States (DOS) of materials, crucial for understanding quantum phenomena.
Superior Signal Recovery: Lock-in amplifiers excel at extracting minuscule dI/dV signals buried in significant background noise by using phase-sensitive detection synchronized to a specific modulation frequency.

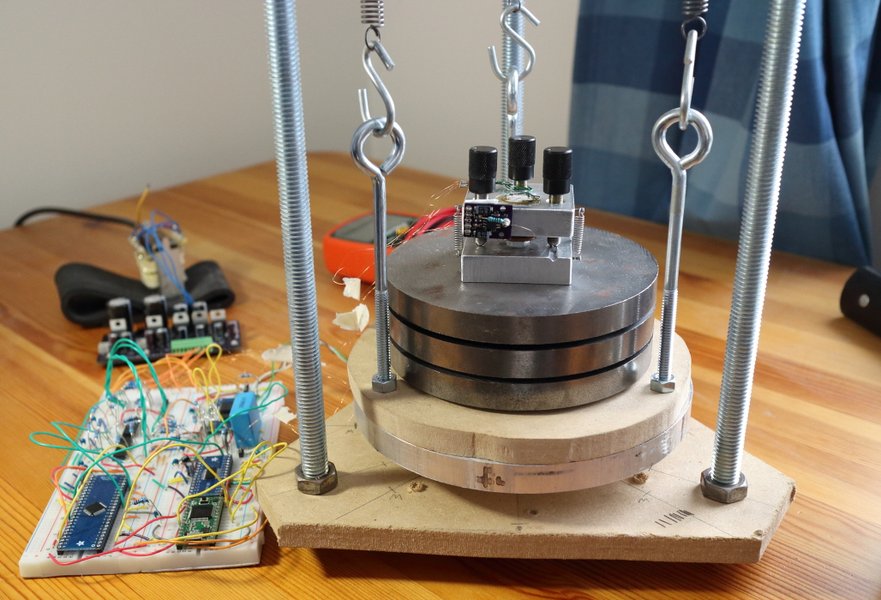

Nanoscale Characterization: This technique is indispensable in Scanning Tunneling Microscopy (STM) and Spectroscopy (STS) for mapping the electronic properties of surfaces and nanostructures with high spatial and energy resolution.

Understanding Differential Conductance (dI/dV)

What is dI/dV?

Differential conductance, mathematically represented as \(dI/dV\), describes the rate at which electrical current (I) changes in response to an infinitesimal change in applied voltage (V) across a material or device. It's essentially the derivative of the current-voltage (I-V) characteristic curve. Unlike simple resistance or conductance (\(I/V\)), which gives an average behavior over a voltage range, \(dI/dV\) provides a localized measure of how easily charge carriers can flow at a *specific* voltage or energy level.

Significance in Materials Science

In the realm of quantum mechanics and condensed matter physics, particularly in techniques like Scanning Tunneling Spectroscopy (STS), the differential conductance (\(dI/dV\)) measured at a specific bias voltage is directly proportional to the Local Density of States (LDOS) of the sample surface at the energy corresponding to that voltage (\(E = eV\), where \(e\) is the elementary charge). This makes \(dI/dV\) spectroscopy an incredibly powerful tool for:

Mapping the electronic structure of materials atom by atom.
Identifying energy gaps in semiconductors and superconductors.
Observing quantum confinement effects in nanostructures.
Characterizing molecular orbitals.

Measuring these subtle conductance changes accurately, however, often requires overcoming significant experimental noise.

The Role of Lock-In Amplification

Why Use a Lock-In Amplifier for dI/dV?

Measuring \(dI/dV\) directly can be challenging. A simple approach involves measuring a detailed I-V curve and then numerically calculating the derivative. However, this method is highly susceptible to noise, which gets amplified during the differentiation process. Experimental setups, especially those involving sensitive measurements like STM operating at cryogenic temperatures, are often plagued by various noise sources (thermal noise, environmental interference, 1/f noise).

Lock-in amplifiers are specifically designed to address this challenge. They function as sophisticated phase-sensitive detectors that can extract extremely small signals coherent with a reference frequency, even when those signals are deeply buried in noise far exceeding the signal amplitude.

Key Advantages:

Noise Rejection: By focusing only on the signal component at a specific modulation frequency and phase, the lock-in amplifier effectively filters out noise at all other frequencies.
High Sensitivity: They can detect signals that are orders of magnitude smaller than the background noise level, enabling the measurement of minute variations in conductance.
Phase Information: Dual-phase lock-in amplifiers can simultaneously measure the component of the signal in-phase and 90 degrees out-of-phase (quadrature) with the reference signal, providing amplitude and phase information. While phase is less commonly the primary focus in standard \(dI/dV\) spectroscopy, it can be relevant in certain advanced measurements.

How Lock-In Amplified dI/dV Measurement Works

The Core Principle: Modulation and Phase-Sensitive Detection

The lock-in technique for measuring \(dI/dV\) involves intentionally modulating the signal of interest and then selectively detecting only that modulation.

1. Signal Modulation

Instead of just applying a DC bias voltage (\(V_{DC}\)) across the sample or tunneling junction, a small, sinusoidal AC modulation voltage (\(V_{mod}\)) with a specific frequency (\(\omega\)) is superimposed onto the DC bias:

\[ V(t) = V_{DC} + V_{mod} \sin(\omega t) \]

Here, \(V_{mod}\) is typically kept small (e.g., a few millivolts in STM) to ensure it only probes a narrow energy range around \(E = eV_{DC}\) and doesn't significantly broaden the spectral features.

2. Current Response

This time-varying voltage induces a time-varying current \(I(t)\). Using a Taylor expansion of the I-V characteristic around \(V_{DC}\), assuming \(V_{mod}\) is small, the current response can be approximated as:

\[ I(t) \approx I(V_{DC}) + \left. \frac{dI}{dV} \right|_{V_{DC}} \cdot (V_{mod} \sin(\omega t)) + \frac{1}{2} \left. \frac{d^2I}{dV^2} \right|_{V_{DC}} \cdot (V_{mod} \sin(\omega t))^2 + \dots \]

The crucial term here is the one oscillating at the modulation frequency \(\omega\). Its amplitude is \( \left. \frac{dI}{dV} \right|_{V_{DC}} \cdot V_{mod} \). The current signal thus contains a DC component (\(I(V_{DC})\)), a component at the fundamental frequency \(\omega\) whose amplitude is proportional to \(dI/dV\), and components at higher harmonics (\(2\omega\), \(3\omega\), etc.) related to higher-order derivatives.

3. Lock-In Detection

The total current signal \(I(t)\) is fed into the lock-in amplifier. The amplifier uses the original modulation signal (\(\sin(\omega t)\)) as its reference.

Phase-Sensitive Detector (PSD): The core of the lock-in amplifier is the PSD, which multiplies the input signal \(I(t)\) by the reference signal. This mixing process shifts the signal component at \(\omega\) down to DC (0 Hz) and shifts other frequency components (noise, higher harmonics) to higher frequencies.
Low-Pass Filtering: The output of the PSD is passed through a steep low-pass filter with a specific time constant (\(\tau\)). This filter removes the high-frequency components, effectively isolating the DC component generated from the signal at \(\omega\).

The final DC output voltage (\(V_{out}\)) of the lock-in amplifier (when configured to measure the in-phase component, often denoted as 'X') is directly proportional to the amplitude of the input current component at the reference frequency \(\omega\), which in turn is proportional to the differential conductance:

\[ V_{out} \propto \left. \frac{dI}{dV} \right|_{V_{DC}} \cdot V_{mod} \]

By sweeping the \(V_{DC}\) bias and recording the lock-in output at each step, a spectrum of \(dI/dV\) versus \(V_{DC}\) (or energy) is obtained.

Video explaining the fundamental principles of how lock-in amplifiers extract signals from noise.

Experimental Setup and Considerations

A typical setup for lock-in amplified \(dI/dV\) measurements, especially in STM/STS, involves several key components and parameters.

Core Components

Component	Role	Details
DC Voltage Source	Provides the base bias voltage (\(V_{DC}\))	Swept to probe different energy levels. Stability is crucial.
AC Modulation Source	Generates the small sinusoidal voltage (\(V_{mod} \sin(\omega t)\))	Often a function generator or built into the lock-in amplifier. Provides the reference signal.
Signal Combiner	Adds the AC modulation to the DC bias	Can be a simple summing circuit or integrated into the STM electronics. Careful design needed to avoid signal distortion or loading.
Device Under Test (DUT)	The sample or junction being measured	e.g., STM tip-sample junction, molecular junction, quantum dot device.
Current Preamplifier	Amplifies the (often very small) tunneling current	Low-noise, high-bandwidth amplifier required (e.g., transimpedance amplifier).
Lock-In Amplifier	Performs phase-sensitive detection	Takes the amplified current signal and the reference frequency as inputs; outputs a DC voltage proportional to \(dI/dV\).
Data Acquisition System	Records the lock-in output as a function of \(V_{DC}\)	Computer controlled system synchronizing the voltage sweep and data logging.

Key Parameters and Challenges

Modulation Frequency (\(\omega\))

The choice of \(\omega\) is critical. It should be:

High enough to be above the dominant low-frequency (1/f) noise spectrum.
Low enough to avoid issues with the DUT's frequency response and cable capacitance (especially with long cables in cryostats, which can attenuate high-frequency signals and introduce phase shifts).
Chosen to avoid known interference frequencies (e.g., power line harmonics, mechanical vibration frequencies).
Typically in the range of a few hundred Hz to several kHz for STM.

Modulation Amplitude (\(V_{mod}\))

A trade-off exists:

Larger \(V_{mod}\) yields a stronger signal at the lock-in input, improving the signal-to-noise ratio (SNR) of the *measurement*.
However, larger \(V_{mod}\) averages the \(dI/dV\) over a wider energy range (\(eV_{mod}\)), leading to broadening of spectral features and loss of energy resolution. Thermal broadening (\(k_B T\)) sets a fundamental limit on resolution as well.
\(V_{mod}\) is typically chosen to be comparable to or smaller than the energy features of interest and thermal energy.

Lock-In Time Constant (\(\tau\))

This parameter controls the bandwidth of the final low-pass filter.

Longer \(\tau\) provides more averaging, reducing noise more effectively but slowing down the measurement speed (as the system needs time to settle after each change in \(V_{DC}\)).
Shorter \(\tau\) allows faster measurements but results in noisier data.
The choice depends on the required SNR and the speed at which \(V_{DC}\) is swept.

Calibration and Signal Mixing

Accurately combining the AC and DC signals without distortion and calibrating the system to convert the lock-in output voltage to absolute conductance units (e.g., Siemens or \(e^2/h\)) requires careful circuit design and measurement procedures. Measuring both AC and DC components of current and voltage might be necessary for precise calibration, especially if simple series resistors or blocking capacitors are used for signal mixing.

Cabling and Impedance Matching

Long cables, particularly in cryogenic setups, can introduce significant capacitance, forming an RC filter with the device impedance. This can limit the usable modulation frequency and introduce phase shifts that need to be accounted for, potentially requiring phase adjustments on the lock-in amplifier.

Comparison: Lock-In vs. Numerical Differentiation

This chart provides a qualitative comparison between using a lock-in amplifier and numerical differentiation of an I-V curve for obtaining dI/dV spectra.

As the chart illustrates, lock-in amplification offers significantly better sensitivity and noise rejection at the cost of increased complexity, cost, potentially slower acquisition (due to time constant), and greater susceptibility to frequency limitations imposed by the setup (e.g., cabling).

Applications

The technique of measuring \(dI/dV\) with lock-in amplification is pivotal in numerous areas of experimental physics and materials science:

Scanning Tunneling Microscopy/Spectroscopy (STM/STS): The primary application, used to map the LDOS of surfaces with atomic resolution, revealing band structures, defects, adsorbates, superconducting gaps, magnetic states, and molecular orbitals.
Characterization of Novel Materials: Essential for studying the electronic properties of superconductors, semiconductors, topological insulators, graphene, 2D materials, and other quantum materials.
Quantum Dots and Nanostructures: Used to probe discrete energy levels (Coulomb blockade peaks), electron-phonon interactions, and transport phenomena in quantum dots, nanowires, and single molecules.
Break Junction Experiments: Investigating conductance quantization and electronic properties of single-atom or single-molecule junctions.
Low-Temperature Transport Measurements: Measuring conductance features in mesoscopic devices at cryogenic temperatures where thermal noise is reduced but instrumentation noise can still be significant.
Atomic Force Microscopy (AFM): While primarily measuring force, lock-in techniques are also used in AFM modes like Kelvin Probe Force Microscopy (KPFM) to measure surface potential or in conductive AFM (c-AFM) for current mapping.

Frequently Asked Questions (FAQ)

What exactly does dI/dV represent physically?

dI/dV, the differential conductance, represents how easily electrons can flow through a material or junction at a specific energy level (determined by the applied DC voltage). In techniques like Scanning Tunneling Spectroscopy (STS), it is directly proportional to the sample's Local Density of States (LDOS) at the energy \(E = eV_{DC}\) and the location of the probe tip. A peak in the dI/dV spectrum indicates a high availability of electronic states at that energy.

Why can't I just calculate dI/dV by differentiating a measured I-V curve?

You can, but this method (numerical differentiation) is very sensitive to noise. Any noise present in the original I-V data gets amplified during the differentiation process, often obscuring the real dI/dV features, especially subtle ones. Lock-in amplification measures the response only at a specific frequency, effectively filtering out broadband noise before the differentiation equivalent is obtained, leading to a much cleaner signal.

What determines the energy resolution of a dI/dV measurement?

The energy resolution is primarily limited by two factors:
1. Modulation Amplitude (\(V_{mod}\)): The AC modulation voltage inherently averages the conductance over an energy range of approximately \(eV_{mod}\). Smaller \(V_{mod}\) gives better resolution but weaker signal.
2. Temperature (T): Thermal energy causes broadening of the electron energy distribution (Fermi-Dirac distribution) by approximately \(k_B T\), where \(k_B\) is the Boltzmann constant. This sets a fundamental limit, particularly at higher temperatures.
Ideally, \(eV_{mod}\) should be chosen to be smaller than or comparable to \(k_B T\) and the intrinsic width of the features being studied.

What are typical values for modulation frequency and amplitude in STM?

Typical values vary depending on the specific experiment and setup:
Modulation Frequency (\(f = \omega / 2\pi\)): Often between 500 Hz and 5 kHz. The choice aims to avoid 1/f noise at low frequencies and potential signal attenuation/phase shifts due to cable capacitance at high frequencies.
Modulation Amplitude (\(V_{mod}\)): Ranges from sub-millivolt levels (for high-resolution spectroscopy at low temperatures) up to tens of millivolts (for faster surveys or when energy resolution is less critical). Often given as RMS (Root Mean Square) or peak-to-peak voltage.
