Differential Equations for Electric Circuits
Understanding the Mathematical Foundations of Circuit Dynamics
Key Takeaways
- Essential Framework: Differential equations are fundamental in modeling the dynamic behavior of electric circuits involving resistors, inductors, and capacitors.
- Kirchhoff's Laws: Kirchhoff's Voltage Law (KVL) and Kirchhoff's Current Law (KCL) are pivotal in deriving the governing equations for various circuit configurations.
- Solution Techniques: Both analytical and numerical methods, such as Laplace transforms and Runge-Kutta methods, are employed to solve these differential equations, enabling the prediction of transient and steady-state responses.
1. Introduction to Differential Equations in Electric Circuits
Understanding the Role of Differential Equations
Differential equations serve as the mathematical backbone for analyzing electric circuits, particularly those that include reactive components like inductors (L) and capacitors (C). These equations describe how voltage and current evolve over time, allowing engineers and physicists to predict circuit behavior under various conditions (Differential Equations in Electric Systems).
2. Fundamental Principles

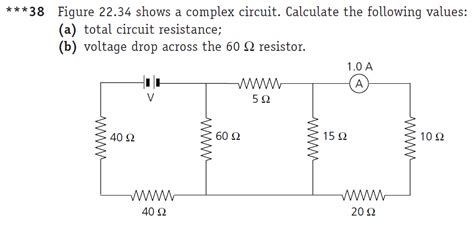

Kirchhoff's Laws
To formulate differential equations for electric circuits, Kirchhoff's Laws are indispensable:
- Kirchhoff's Voltage Law (KVL): States that the sum of all electrical potential differences around a closed loop equals zero. This law is crucial for establishing relationships between voltages in a circuit.
- Kirchhoff's Current Law (KCL): Asserts that the sum of currents entering a junction equals the sum of currents leaving it. KCL is essential for determining current distributions in complex circuits.
These laws form the foundation for setting up the governing differential equations for various circuit configurations.
3. Modeling Different Circuit Configurations
3.1 First-Order Circuits
First-order circuits contain a single energy storage element, either an inductor or a capacitor, leading to first-order linear differential equations.
3.1.1 RL Circuits (Resistor-Inductor)
In a series RL circuit, the application of KVL results in the following differential equation:
R \cdot i(t) + L \cdot \frac{di(t)}{dt} = V(t)Where:
- R: Resistance (Ohms)
- L: Inductance (Henries)
- i(t): Current as a function of time (Amperes)
- V(t): Voltage source as a function of time (Volts) (Series RL Circuit).
The solution to this equation, assuming a constant voltage source, is:
$$ i(t) = \frac{V}{R} \left(1 - e^{-\frac{R}{L}t}\right) $$
This describes how the current builds up over time, approaching the steady-state value of \( \frac{V}{R} \) as \( t \) approaches infinity.
3.1.2 RC Circuits (Resistor-Capacitor)
For a series RC circuit, applying KCL and Ohm's Law leads to the differential equation:
R \cdot \frac{dV(t)}{dt} + V(t) = V_s(t)Where:
- C: Capacitance (Farads)
- V(t): Voltage across the capacitor (Volts)
- V_s(t): Source voltage as a function of time (Volts) (Electrical Circuits | MAT 2680 Differential Equations).
The general solution involves the natural response and the particular solution, often resulting in an exponential charge or discharge curve.
3.2 Second-Order Circuits
Second-order circuits include two energy storage elements, typically resulting in more complex differential equations capable of modeling oscillatory behavior.
3.2.1 Series RLC Circuits
For a series RLC circuit, applying KVL yields:
L \cdot \frac{d^2i(t)}{dt^2} + R \cdot \frac{di(t)}{dt} + \frac{1}{C} \cdot i(t) = \frac{dV(t)}{dt}This second-order linear differential equation captures the interplay between resistance, inductance, and capacitance, leading to phenomena such as resonance and damping (MIT OpenCourseWare).
3.2.2 Parallel RLC Circuits
In parallel RLC circuits, applying KCL gives:
C \cdot \frac{d^2V(t)}{dt^2} + \frac{1}{R} \cdot \frac{dV(t)}{dt} + \frac{V(t)}{L} = I(t)This equation models the voltage dynamics across the parallel RLC components, similarly exhibiting oscillatory behavior and resonance effects.
4. Solution Techniques for Differential Equations in Circuits
4.1 Analytical Methods
Analytical solutions provide exact expressions for current and voltage over time. Common techniques include:
- Homogeneous Solutions: Solving the equation when the external source is zero, focusing on the natural response of the circuit.
- Particular Solutions: Finding solutions that account for the external driving sources, representing the forced response.
- Characteristic Equations: Deriving characteristic polynomials to determine the system's behavior based on the roots (real or complex).
- Laplace Transforms: Transforming differential equations into algebraic equations in the Laplace domain, simplifying the solving process (First-order Linear Equations - Mathematics LibreTexts).
4.2 Numerical Methods
For complex or non-linear circuits where analytical solutions are intractable, numerical methods are employed:
-
Euler's Method: A simple iterative procedure for approximating solutions.
- Section 11 - Applications of Differential Equations: Circuits, Part 1
-
Computational Software: Tools like MATLAB, Mathematica, and Python libraries (e.g., SciPy) facilitate numerical solutions and simulations.
5. Applications of Differential Equations in Electric Circuits
5.1 Transient Analysis
Transient analysis examines how circuit variables change immediately after a switch operation or during the initial charging/discharging phase. This involves solving differential equations to understand the short-term behavior before reaching steady-state (Engineering Math - Differential Equation - ShareTechnote).
5.2 Steady-State Analysis
Steady-state analysis focuses on the long-term behavior of circuits under continuous or periodic inputs. Solutions in this context often involve sinusoidal functions for AC circuits, where differential equations model steady oscillations and power dissipation.
5.3 Oscillatory Behavior and Resonance
Second-order circuits, particularly RLC configurations, can exhibit oscillatory responses. Depending on the damping ratio, circuits can be underdamped (oscillatory), overdamped (non-oscillatory), or critically damped (boundary case). Understanding these responses is crucial for designing filters, oscillators, and tuning circuits to specific frequencies (MIT OpenCourseWare).
6. Practical Examples
6.1 Solving a Series RL Circuit
Consider a series RL circuit with a constant voltage source \( V \). The governing differential equation is:
R \cdot i(t) + L \cdot \frac{di(t)}{dt} = VTo solve, we rearrange the equation:
\frac{di(t)}{dt} + \frac{R}{L} \cdot i(t) = \frac{V}{L}Using an integrating factor \( \mu(t) = e^{\frac{R}{L}t} \), we multiply both sides:
e^{\frac{R}{L}t} \cdot \frac{di(t)}{dt} + \frac{R}{L} e^{\frac{R}{L}t} \cdot i(t) = \frac{V}{L} e^{\frac{R}{L}t}This simplifies to:
\frac{d}{dt} \left( e^{\frac{R}{L}t} \cdot i(t) \right) = \frac{V}{L} e^{\frac{R}{L}t}Integrating both sides:
e^{\frac{R}{L}t} \cdot i(t) = \frac{V}{R} e^{\frac{R}{L}t} + CSolving for \( i(t) \):
$$ i(t) = \frac{V}{R} \left(1 - e^{-\frac{R}{L}t}\right) $$
This solution illustrates how the current increases exponentially from zero to its steady-state value of \( \frac{V}{R} \) with a time constant \( \tau = \frac{L}{R} \).
6.2 Analyzing a Series RLC Circuit
In a series RLC circuit subjected to a sinusoidal voltage source \( V(t) = V_0 \sin(\omega t) \), the governing equation is:
L \cdot \frac{d^2i(t)}{dt^2} + R \cdot \frac{di(t)}{dt} + \frac{1}{C} \cdot i(t) = \omega V_0 \cos(\omega t)Assuming a steady-state solution of the form \( i(t) = I_0 \sin(\omega t + \phi) \), we substitute and solve for amplitude \( I_0 \) and phase angle \( \phi \). This process reveals the resonance condition where the circuit exhibits maximum current when \( \omega = \frac{1}{\sqrt{LC}} \).
Such analyses are vital for designing circuits in applications like radio tuning, where resonance is exploited to select specific frequencies.
7. Advanced Topics and Computational Methods
7.1 Laplace Transforms in Circuit Analysis
Laplace transforms convert differential equations into algebraic equations, simplifying the process of solving for circuit responses, especially with initial conditions. By transforming the time domain equations into the s-domain, complex circuit behaviors can be analyzed more manageably (Mathematics LibreTexts).
7.2 Numerical Simulation Tools
Tools like MATLAB, Simulink, and Python's SciPy library enable the numerical solving of differential equations, allowing for the simulation of complex circuits that may not have straightforward analytical solutions. These tools offer functions like ode45 in MATLAB or odeint in SciPy for integrating ordinary differential equations.
7.3 Stability and Control in Circuits
Analyzing the stability of circuit responses, especially in feedback systems, involves examining the roots of the characteristic equations derived from differential equations. Stability criteria ensure that the circuit behaves predictably without undesired oscillations or divergences.
8. Educational and Resource Materials
For those seeking a deeper understanding of differential equations in electric circuits, the following resources provide comprehensive explanations, examples, and problem sets:
These materials are invaluable for students, educators, and professionals aiming to master the application of differential equations in the context of electrical engineering and physics.
9. Conclusion
Integrating Mathematics with Electrical Engineering
Differential equations provide a robust framework for modeling and analyzing the dynamic behavior of electric circuits. By leveraging Kirchhoff's Laws and applying appropriate solution techniques, complex circuits can be understood and designed with precision. Whether dealing with simple RL and RC circuits or more intricate RLC configurations, the principles of differential equations bridge the gap between theoretical mathematics and practical engineering applications, enabling advancements in technology and innovation.
