High-Level Synthesis of Iterative Data Flow Graphs

Optimizing Loop-Based Hardware Designs with Overlapped Scheduling

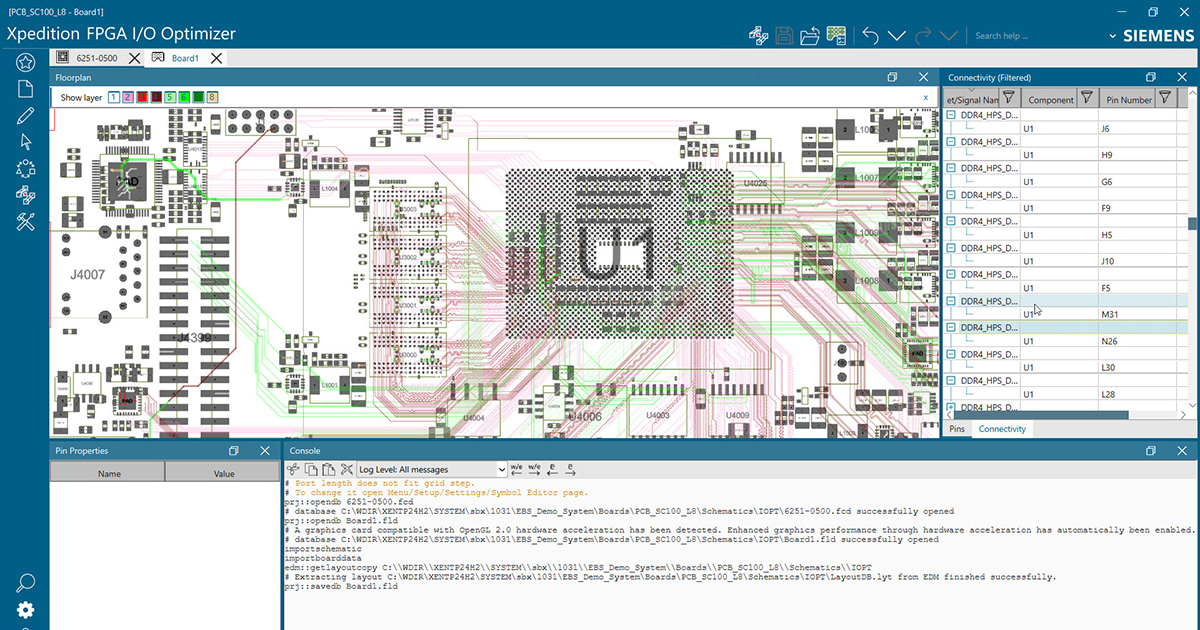

digital hardware schematics, circuit boards, FPGA layouts

Key Highlights

Efficient Transformation: HLS converts high-level behavioral code into register-transfer level implementations while managing complex iterative data dependencies.
Overlapped Scheduling: A critical technique that overlaps computation between iterations to boost hardware performance.
Optimization & Resource Utilization: Advanced scheduling algorithms, pipelining strategies, and resource sharing design choices drive efficiency in digital system design.

Introduction

High-level synthesis (HLS) is a transformative process that automates the design of digital hardware from high-level programming languages such as C, C++, or SystemC. This approach not only accelerates the design cycle but also abstracts the complexity of hardware design by allowing designers to focus on algorithm development. When it comes to iterative data flow graphs (IDFGs), this method handles designs with inherent looping structures, common in digital signal processing (DSP) and other signal-intensive applications.

In these designs, each iteration of the loop can be modeled as a collection of operations that communicate with each other in a data-centric manner. This style of representation is well-suited to showcase the inherent parallelism within algorithms. One of the most powerful techniques used in this domain is overlapped scheduling, also referred to as loop pipelining. This technique allows successive iterations of a loop to overlap, significantly enhancing throughput and reducing latency by executing operations concurrently across iterations.

High-Level Synthesis Process

Core Steps

The HLS process transforms algorithmic descriptions into an RTL implementation through several crucial steps:

1. Behavioral Specification

The specification of the algorithm is given in a high-level language such as C/C++ or SystemC. The design captures functionality without explicit details of cycle-by-cycle operations, allowing designers to focus on what the design should do rather than how it should be physically implemented.

2. Scheduling

Scheduling is the process used to assign operations to specific clock cycles, while respecting data and control dependencies. In the context of iterative data flow graphs, scheduling must consider both intra-iteration and inter-iteration dependencies. The result is a sequence of control steps (often manifested as a finite-state machine) that orchestrates the execution of operations.

3. Allocation

Allocation determines the hardware resources (such as arithmetic units, multiplexers, registers) required to execute the operations defined by the schedule. This step is about matching the computational workload to a set of physical resources efficiently.

4. Binding and Assignment

The binding phase involves mapping the scheduled operations to the allocated hardware resources. For instance, a specific arithmetic operation might be bound to a dedicated digital signal processing (DSP) block. The assignment also maps intermediate variables to registers and ensures that the data paths are correctly implemented.

These stages work in tandem to produce an RTL description of the hardware that can later be synthesized into a gate-level implementation using conventional logic synthesis tools.

Iterative Data Flow Graphs

Understanding Iterative Data Dependencies

Iterative data flow graphs model algorithms containing loops by explicitly representing data dependencies between successive iterations. In such graphs, nodes represent computational tasks (operations), while edges denote the flow of data between these tasks. There are two prevalent forms:

Explicit Iteration

In explicit iterative data flows, iterations are represented by adding specialized nodes such as selectors and distributors that manage token flow, ensuring correct loop initialization and control.

Implicit Iteration

In contrast, implicit iterative models rely on a continuous stream of tokens where the iteration boundaries are determined by the data flow itself rather than explicit loop constructs. Delay elements or buffers may be used to synchronize the iterations.

Both approaches require HLS tools to carefully orchestrate the scheduling of operations, especially when different iterations share common resources or have dependencies between them.

Overlapped Scheduling

Concept and Benefits

Overlapped scheduling, often synonymous with loop pipelining, is a powerful technique in high-level synthesis designed to enhance the utilization of hardware resources and improve overall throughput. The main objective is to start the execution of a new iteration before the previous one has completely finished. This overlap maximizes concurrency, thereby reducing the overall iteration period – the number of clock cycles needed to begin consecutive iterations.

The primary benefits of overlapped scheduling include:

Increased Throughput: By simultaneously managing multiple iterations, the hardware can process more data per clock cycle.
Better Resource Utilization: Hardware components are kept busy by overlapping operations, reducing idle cycles.
Reduced Latency: Critical operations are initiated earlier, meaning that the time from input to output is minimized.

The schedule produced by HLS tools using overlapped scheduling must enforce data dependencies, particularly managing hazards such as read after write (RAW) conflicts. Tools employ various scheduling optimization algorithms including integer linear programming (ILP) and heuristic searches like tabu search, to determine the most effective overlapping while respecting constraints like communication delays and resource sharing.

Key Characteristics

When designing overlapped scheduling strategies, several parameters and strategies are critical to ensuring the hardware meets performance and correctness criteria:

Parameter	Description	Impact
Initiation Interval (II)	The number of clock cycles between the start of two consecutive iterations.	Lower II indicates better performance by allowing faster re-iteration.
Latency	Total cycles taken to complete a single iteration of the loop.	Reduced latency often correlates with increased throughput.
Resource Utilization	Extent to which hardware resources are active concurrently.	Improved utilization ensures minimal idle time, enhancing efficiency.
Data Dependencies	Constraints requiring certain operations to complete before others begin.	Proper management avoids hazards and ensures correct operation.

Implementation Techniques

Pipelining

Pipelining breaks down the computation into discrete stages that can operate concurrently. Each stage completes a part of the computation, and while one stage is processing data from one iteration, other stages may be processing data from other iterations simultaneously. The effectiveness of pipelining heavily depends on the careful scheduling of instructions to avoid conflicts.

Resource Sharing and Buffering

Efficient overlapped scheduling takes advantage of resource sharing across operations. Functional units like adders, multipliers, and memory blocks can be reused across multiple operations in different iterations provided that their usage does not conflict. Additionally, strategically placed FIFOs (First-In-First-Out buffers) or latency-balancing buffers help in aligning the data flow, mitigating the effect of communication delays and preventing pipeline stalls.

Dependency Analysis

A thorough dependency analysis is crucial. The HLS tool must inspect both intra-iteration and inter-iteration dependencies to create a schedule that minimizes the initiation interval without violating precedence constraints. Techniques such as data flow graph analysis help in identifying opportunities for overlapping while ensuring that hazards such as read-after-write or write-after-write are avoided.

Advanced algorithms, such as those based on integer linear programming (ILP) or heuristic search methods, are typically employed to solve this complex optimization problem. These approaches systematically explore the design space, balancing the trade-offs between throughput, resource utilization, and latency.

Challenges and Considerations in Overlapped Scheduling

Managing Data Dependencies

One of the primary challenges in overlapped scheduling is managing the data dependencies that span across different iterations. As operations from multiple iterations can be active concurrently, care must be taken to ensure that the read and write operations do not create data hazards. This involves:

Ensuring Correct Order: The schedule must enforce the correct order of operations so that dependent computations access valid data.
Handling Communication Delays: In multi-processor or distributed architectures, communication delays between processing elements can affect the overlapping scheduling. Advanced scheduling techniques incorporate these delays as constraints, ensuring that the performance gains from overlapping are not negated by waiting times.

Optimization Techniques

A number of optimization strategies can be applied in the context of overlapped scheduling:

Integer Linear Programming (ILP): One common approach is formulating the scheduling problem as an ILP task. This method allows the designer to minimize the iteration period while respecting resource constraints and data dependencies.
Heuristic Algorithms: Techniques like tabu search or genetic algorithms provide alternative means to explore the scheduling space, especially when the problem size precludes exhaustive search.
Graph-based Methods: Data flow graphs are employed to visualize and analyze dependencies. This graphical representation assists in identifying independent operations that can be scheduled concurrently.

Practical Applications

Overlapped scheduling is particularly valuable in domains where high throughput is essential. Some key areas include:

Digital Signal Processing (DSP): Many DSP algorithms involve repetitive computations and data streaming. Overlapped scheduling ensures that these loops run at maximum efficiency, critical for real-time processing tasks.
Image and Video Processing: Algorithms in these fields are also highly iterative and data-intensive. By overlapping iterations, hardware designers can achieve significant performance improvements which are vital for real-time video streaming and high-resolution image processing.
Artificial Intelligence Hardware: Emerging AI architectures benefit from efficient scheduling. Iterative tasks such as convolution operations in neural networks can be optimized by overlapping computations, thus enhancing overall throughput.

Design Considerations for Robust Implementation

Balancing Trade-offs in Hardware Implementation

When implementing overlapped scheduling in high-level synthesis, designers face several trade-offs that must be balanced for an optimal design:

Performance vs. Resource Utilization: While aggressive overlapping can lead to higher throughput, it may also require additional hardware resources. Designers need to ensure that the hardware cost does not outweigh the performance benefits.
Latency vs. Complexity: Reducing the initiation interval to its minimum possible value may lead to a more complex scheduling problem, which in turn might require more sophisticated and computationally expensive algorithms to resolve.
Simplicity vs. Flexibility: A straightforward schedule is easier to validate and debug. However, less rigid scheduling might be necessary for designs that need to adapt to varying data rates or unpredictable external conditions.

Designers typically rely on simulation and iterative refinement to strike the right balance. Simulation models help predict the behavior of different scheduling approaches under realistic workloads, thereby guiding the final design decisions.

Overlap Methodologies in Practice

Several methodologies can be used to implement overlapped scheduling in practice:

Static Overlap

In static overlapping, the schedule is determined during the synthesis process and remains fixed during runtime. The advantage is determinism and predictability, which are important for applications with stringent real-time constraints.

Dynamic Scheduling

Conversely, dynamic or adaptive scheduling allows the system to adjust to runtime conditions. This approach can provide performance benefits in scenarios where workloads are highly variable. However, it requires sophisticated control logic to manage the dynamic injection of operations from new iterations while ensuring that all data dependencies are met.

Advanced Concepts and Future Directions

Emerging Trends in HLS and Overlap Scheduling

The forefront of research in HLS and overlapped scheduling is continually evolving, with several promising directions:

Enhanced Dependency Resolution: New methods leverage machine learning to predict and resolve data dependencies, potentially automating parts of the scheduling process that were traditionally manual.
Scalable Multi-Core Architectures: As processor architectures become more parallel, overlapped scheduling techniques are being refined to handle larger scales with many processing elements, ensuring optimal throughput across distributed hardware.
Integration with High-Level Design Frameworks: Seamless integration of HLS tools with system-level design frameworks allows engineers to simulate, verify, and optimize both hardware and software concurrently, leading to more robust system designs.

Additionally, the trend toward heterogeneous computing architectures—combining CPUs, GPUs, and dedicated accelerators—places further emphasis on efficient scheduling strategies that can evaluate and balance workloads across different types of processing units.

Research and Optimization Challenges

As designers push the boundaries of what overlapped scheduling can achieve, several challenges remain:

Scalability: Efficiently scaling the scheduling algorithms for increasingly complex and deep iterative graphs is an ongoing challenge.
Tool Support: There is a growing need for HLS tools that provide intuitive visualizations and robust debugging supports specifically tailored for overlapped scheduling scenarios.
Verification: Given the complexity of overlapping iterations, ensuring that the synthesized hardware behaves correctly under all operating conditions is non-trivial and requires advanced formal verification methods.

Performance Evaluation and Comparison

Empirical Benchmarks

To assess the impact of overlapped scheduling on hardware performance, designers perform empirical evaluations comparing traditional sequential scheduling with overlapped approaches. Key metrics include:

Iteration Period (II): Lower values indicate more aggressive overlapping, which in turn suggests higher throughput.
Throughput: Measured in operations per second, effective overlapped scheduling directly contributes to higher throughput by ensuring a steady flow of data across the pipeline.
Resource Utilization: This metric tracks how efficiently the available hardware resources (ALUs, DSP blocks, register files) are used. Overlapped scheduling generally improves overall utilization by minimizing idle cycles.
Latency: Although overlapping helps reduce the time between iterations, the latency for a single data token traversing the pipeline might increase due to the pipeline depth. Balancing throughput with acceptable latency is a key design goal.

Designers often rely on simulation models to evaluate these metrics comprehensively before committing to physical implementation.

Conclusion

In summary, high-level synthesis of iterative data flow graphs is a pivotal process that bridges high-level algorithmic design and detailed hardware implementation. Overlapped scheduling, through its method of loop pipelining, plays a central role in transforming iterative operations into a high-throughput hardware design. By overlapping operations across iterations, designers can significantly reduce the iteration period, thereby increasing processing throughput while ensuring efficient hardware utilization.

The process involves a careful balance between scheduling, allocation, and binding, which together guarantee that data dependencies are respected and that the synthesized hardware meets performance metrics such as throughput, latency, and resource utilization. Advanced scheduling techniques, including integer linear programming and various heuristic methods, have enabled designers to push the efficiency limits of digital circuits.

As technology evolves and heterogeneous architectures become widespread, the challenges around scalability and dynamic scheduling will likely stimulate further innovations in HLS methodologies. Ongoing research continues to refine these techniques, integrating improved dependency analysis, automated resource management, and enhanced simulation tools. Overall, the synergy between high-level synthesis techniques and overlapped scheduling is transforming design practices in complex digital systems, making them more robust, flexible, and efficient.
