Decoding Mathematical Notation: What Does s(x, y) with x ∈ R and (x, y) ∈ R² Mean?

Key Insights at a Glance

Function of Two Variables: The notation s(x, y) signifies a function named 's' that depends on two independent inputs, x and y.
Domain in the 2D Plane: The conditions x ∈ R and (x, y) ∈ R² specify that the inputs are ordered pairs of real numbers, essentially points from the two-dimensional Cartesian plane.
Incomplete Definition: While the notation defines the function's name and its input domain, the part with 'y' written below 'x' is non-standard and does not clearly define the rule for calculating the function's output.

What is s(x, y)? Understanding Functions of Two Variables

The Core Idea: Mapping Inputs to Outputs

In mathematics, notation like s(x, y) represents a function. Think of a function as a rule or a machine: you provide specific inputs, and it produces a corresponding output. Here, 's' is the name given to this particular function, and it requires two inputs, denoted by the variables x and y, to determine its output.

Inputs: The Variables x and y

The variables x and y inside the parentheses (x, y) are the independent variables. The value of the function s depends on the specific values chosen for both x and y. Unlike functions of a single variable (like f(x)), where the output depends only on x, here the output depends on the pair (x, y). Examples of such functions include calculating the area of a rectangle (which depends on length and width) or determining the temperature at a specific geographical coordinate (which depends on latitude and longitude).

Deciphering the Domain: Where Do x and y Live?

The notation following s(x, y) specifies the allowed inputs, known as the function's domain.

The Realm of Real Numbers: x ∈ R

The statement $x \in \mathbb{R}$ means that the variable 'x' must be an element of the set of real numbers. The symbol ∈ signifies "is an element of" or "belongs to," and \mathbb{R} represents the set containing all real numbers (including integers, rational numbers like fractions, and irrational numbers like $ \pi $ or $ \sqrt{2} $). So, 'x' can be any number you typically encounter on a number line.

The Cartesian Plane: (x, y) ∈ R²

The notation $(x, y) \in \mathbb{R}^2$ specifies that the input to the function s is an ordered pair (x, y) belonging to the set \mathbb{R}^2. The set \mathbb{R}^2 (read as "R squared" or "R two") represents the two-dimensional Cartesian plane. It's the set of all possible ordered pairs where both components are real numbers. Essentially, each input (x, y) corresponds to a unique point on a standard x-y graph.

Defining the Domain

Taken together, x ∈ R and (x, y) ∈ R² establish that the function s accepts inputs that are points in the two-dimensional real plane. Since (x, y) ∈ R² already implies that both x and y are real numbers, the condition x ∈ R is somewhat redundant but reinforces this fact. Unless further restrictions are given (like avoiding division by zero or square roots of negative numbers in the function's definition), the domain of s(x, y) is typically assumed to be the entire \mathbb{R}^2 plane.

The Output: What Does the Function Produce?

A function maps inputs from its domain to outputs in its codomain or range. For functions like s(x, y), the output is usually a single real number. This relationship is often denoted as $s: \mathbb{R}^2 \to \mathbb{R}$, meaning the function s maps elements from the 2D plane ($\mathbb{R}^2$) to the set of real numbers ($\mathbb{R}$).

The Ambiguous Notation: x over y

The final part of your query, where 'y' is written below 'x' after the domain specification, is not standard mathematical notation for defining the output rule of a function s(x, y). Standard notation would explicitly state how s(x, y) is calculated, for example, s(x, y) = x^2 + y^2 or s(x, y) = \frac{x}{y}.

Without additional context, the meaning of placing 'x' above 'y' in this manner is unclear. It might be:

A typographical error or an incomplete expression.
Shorthand specific to a particular textbook, course, or field (e.g., representing a vector $\begin{pmatrix} x \ y \end{pmatrix}$ or some transformation), but it's not universally understood.
An attempt to emphasize the variables involved, though not in a conventional way.

Crucially, this part of the notation does not define how to compute the output value of the function s based on the inputs x and y. It only describes the nature of the inputs.

Visualizing Functions of Two Variables

A World in 3D: Graphing s(x, y)

While functions of one variable (y = f(x)) are graphed as curves on a 2D plane, functions of two variables (z = s(x, y)) are visualized as surfaces in three-dimensional space. The x and y axes form the horizontal plane (representing the domain $\mathbb{R}^2$), and the vertical z axis represents the output value s(x, y) corresponding to each input point (x, y). The collection of all points (x, y, z) such that z = s(x, y) forms the surface graph of the function.

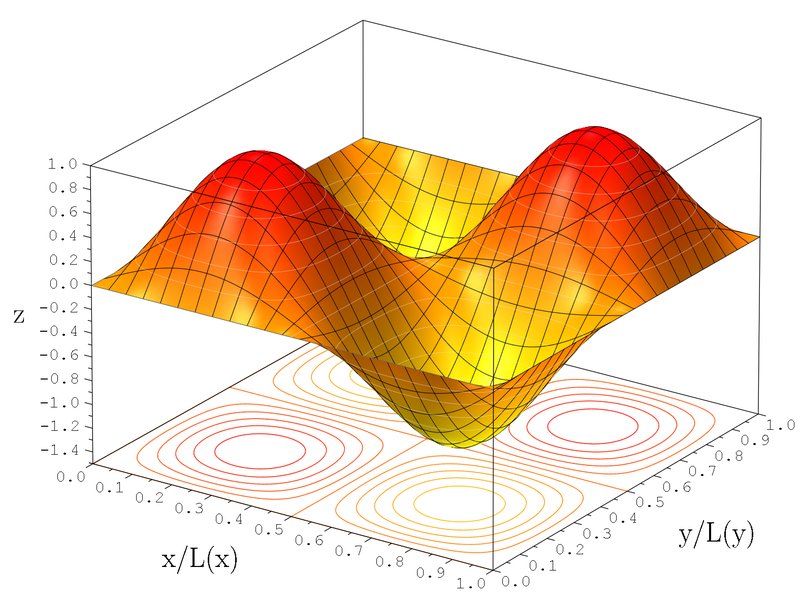

3D surface plot of a function z = s(x,y)

Example of a 3D surface plot with contour lines, representing a function z = s(x, y).

Illustrative Examples

To make the concept more concrete, let's consider hypothetical definitions for s(x, y), assuming it maps to a real number:

If $s(x, y) = x^2 + y^2$, the function takes two real numbers, squares them, and adds the results. For input (2, 3), the output would be $s(2, 3) = 2^2 + 3^2 = 4 + 9 = 13$. The graph of this function is a paraboloid opening upwards.
If $s(x, y) = x + y$, the function simply adds the two input numbers. For input (-1, 5), the output is $s(-1, 5) = -1 + 5 = 4$. The graph of this function is a flat plane in 3D space.
If $s(x, y) = \sin(x) \cos(y)$, the output depends trigonometrically on the inputs. The graph would be an undulating surface.

Remember, the notation in your query (s(x, y) : x ∈ R, (x, y) ∈ R² followed by x over y) doesn't specify which rule s follows; it only sets up the type of function and its inputs.

Comparing Single vs. Two-Variable Functions

Functions of one and two variables share the core concept of mapping inputs to outputs but differ in several key aspects, such as the dimensionality of their inputs and graphs. The radar chart below visually compares these aspects.

Mapping the Concepts: A Notation Breakdown

The following mind map breaks down the components of the notation s(x, y) : x ∈ R, (x, y) ∈ R² to clarify the role of each symbol.

mindmap root["Interpreting s(x, y) : x ∈ R, (x, y) ∈ R²
(+ ambiguous x/y part)"] id1["Function Notation: s(x, y)"] id1a["'s' is the function name"] id1b["'(x, y)' are the inputs (arguments)"] id1c["Indicates dependence on two variables"] id2["Domain Specification"] id2a["':' means 'such that' or 'defined for'"] id2b["'x ∈ R' specifies x is a Real Number"] id2b1["R = Set of Real Numbers"] id2b2["∈ = 'is an element of'"] id2c["'(x, y) ∈ R²' specifies the input pair is from the 2D Plane"] id2c1["R² = Cartesian Plane (all pairs of real numbers)"] id2c2["(x, y) = Ordered Pair"] id2d["Overall Domain: Points in the 2D plane R²"] id3["Function Output (Implicit/Missing)"] id3a["Typically maps to Real Numbers (R)"] id3b["Formal notation: s: R² → R"] id3c["The rule (e.g., x²+y²) is NOT given by the query notation"] id4["Ambiguous Part: x over y"] id4a["Non-standard notation in this context"] id4b["Meaning unclear without context"] id4c["Does NOT define the output calculation"] id4d["Possible interpretations (speculative): Vector? Typo? Emphasis?"]

Notation Summary Table

This table summarizes the key mathematical symbols used in the expression s(x, y) : x ∈ R, (x, y) ∈ R².

Symbol	Meaning	Example/Context in the Query
`s(x, y)`	Function Notation	Represents a function named 's' with two input variables, `x` and `y`.
`:`	Such that / Defined for	Separates the function notation from the conditions defining its domain.
`x`, `y`	Variables	Represent the independent input values for the function `s`.
`∈`	Is an element of / Belongs to	Indicates membership in a set (e.g., `x` belongs to the set `R`).
`$\mathbb{R}$`	Set of Real Numbers	Specifies that `x` must be a real number.
`$\mathbb{R}^2$`	Set of Ordered Pairs of Real Numbers (Cartesian Plane)	Specifies that the input `(x, y)` is a point in the 2D plane.
`(x, y)`	Ordered Pair	Represents a single input point for the function `s`, consisting of two real numbers in a specific order.

Why Understanding This Notation Matters

Functions of two (or more) variables are fundamental tools across many fields. In physics, they can describe temperature or pressure distributions across a surface (x, y). In economics, they model production output based on inputs like labor (x) and capital (y). In engineering, they are used to analyze stress on materials or design complex surfaces. Being able to correctly interpret the notation defining these functions is the first step towards applying them to solve real-world problems.

Foundational Concepts: What is a Function?

At its core, a mathematical function is a specific type of relationship between inputs and outputs. For every valid input, a function produces exactly one output. This concept is crucial whether dealing with one variable or multiple variables. The video below provides a great introduction to the general idea of functions.
