Influence of Max Datapath Fanout in VLSI Design
Understanding the Impact on Speed, Cell Density, and Routing Congestion
Key Highlights
- Speed Optimization: Reduced fanout minimizes signal delay.
- Standard Cell Density: Fanout affects cell placement and clustering.
- Routing Congestion Management: Proper fanout control eases routing overhead.
Overview
In advanced digital designs, especially those related to VLSI and FPGA architectures, the concept of "max datapath fanout" plays a crucial role in defining the performance of a circuit. Max datapath fanout determines the maximum number of destinations or loads that a signal (typically originating from a logic gate or flip-flop) is allowed to drive. As the number of connected loads increases, the overall performance of the circuit can be compromised. This impact on performance manifests in multiple ways: speed degradation, variations in standard cell density, and higher routing congestion during the design.
Impact on Circuit Speed
Signal Delay and Load Capacitance
One of the primary concerns when configuring the max datapath fanout is its influence on the speed of a circuit. Each digital signal encounters a time delay as it travels through a circuit. This delay is primarily due to the capacitive load that the driver (the circuit element delivering the signal) has to charge and discharge.
Conceptual Understanding
In digital circuits, every connected gate introduces additional load capacitance. Given a fixed drive strength, the incremental delay due to additional capacitance can be characterized by the equation:
\( \text{\( T_{delay} \propto C_{load} \)} \)
where \( \text{\( C_{load} \)} \) increases with fanout. Therefore, excessive fanout results in greater delay, slowing down the overall speed, particularly in timing-critical paths. This slowdown directly limits the maximum operating frequency (fMAX) of the system.
Practical Implications
Engineers often face the challenge of balancing the drive strength of logic gates with the number of loads they can drive effectively. While a high fanout may seem beneficial for connecting multiple components, it inadvertently increases the load capacitance, leading to slower signal transition times and higher power dissipation. To mitigate these delays, designers might incorporate buffers or replicate registers to re-drive the signals, thereby isolating the primary driver from the heavy load. This multistep process helps to maintain a high speed even when the original signal must ultimately control multiple loads.
Influence on Standard Cell Density
Cell Placement and Signal Clustering
The layout of a digital circuit, especially in VLSI designs, involves the careful placement of standard cells. Standard cell density refers to how closely these cells can be packed together on a silicon die. When a signal drives many loads—i.e., when it has a high max datapath fanout—the placement of these connected cells becomes a significant challenge. This configuration can force the place and route tools to cluster cells together.
Effect of High Fanout
High fanout results in extensive clustering of driven cells around the source cell. Such dense clustering is necessary to limit the extra parasitic capacitance that would be introduced if these cells were dispersed across a larger area. However, this very clustering may lead to increased physical interference among cells, limit routing flexibility, and induce additional delays due to proximity effects.
Optimizing Cell Density
In contrast, managing the fanout to lower levels allows for a more balanced spread of standard cells. This balanced spread optimizes the overall design by enhancing the routing possibilities without excessively congesting any one area of the chip. In practice, techniques like cell replication (using buffers or duplicate drivers) help manage the fanout by distributing the load across multiple smaller clusters rather than forcing a single highly congested area.
The relationship between fanout and cell density is vital during the synthesis and physical design stages. While reducing fanout improves speed, it may force the design to use more cells to achieve the same connectivity, which can initially seem counterintuitive. The trade-off, however, is often favorable; the gains in performance and reduced delays outweigh the cost of slightly higher cell count and layout expansion.

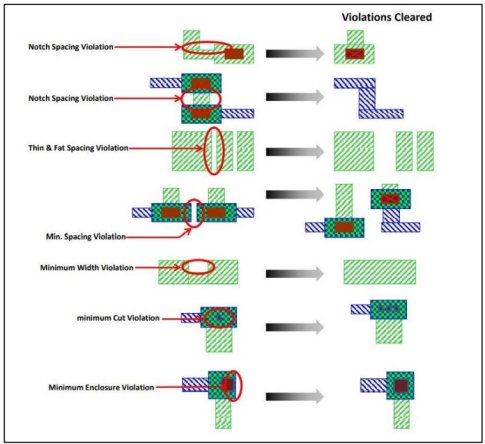

Impact on Routing Congestion
Understanding Routing Challenges
Routing congestion is a major bottleneck in VLSI design. It occurs when too many nets (or interconnections) congest a specific area on the chip, making it harder to route signals efficiently. High max datapath fanout directly contributes to congestion because the signal's need to fan out to many destinations requires a large number of routing tracks and channels.
Mechanisms Behind Increased Congestion
Every connection that a driver makes requires routing resources, including wires and vias, to traverse the silicon die. When multiple cells are densely packed due to high fanout, the absolute number of interconnections increases. This creates potential hotspots where routing resources are deeply oversubscribed. The complexity is compounded by the fact that modern designs often push the physical limits of chip area, necessitating extremely efficient routing strategies.
Alleviating Routing Bottlenecks
Designers utilize several techniques to manage routing congestion. One common approach is to limit the maximum fanout of individual signals, ensuring that no single driver is responsible for connecting too many destinations. Other techniques include:
- Buffer insertion to split heavy fanout nets into multiple paths.
- Duplicate driver cells to offload the heavy load from a single source.
- Intelligent net ordering and routing optimization during the place and route phases.
- Congestion-driven placement where cells are strategically positioned to minimize dense clusters.
These strategies collectively work to keep routing channels clear, thereby reducing the risk of routing congestion which may otherwise lead to signal integrity issues and timing violations.
Techniques to Manage Max Datapath Fanout
Buffer Insertion
Buffer insertion is one of the primary mitigation techniques employed in modern digital design. A buffer, often with a controlled drive strength, is inserted between the high-fanout source and its loads. This decouples the original load from the direct burden of driving multiple endpoints. The brief delay introduced by a buffer is usually offset by the overall gain in signal speed, since the effective load seen by the next stage is significantly reduced.
Gate Sizing
Another method to manage fanout effects is by adjusting the sizes of the logic gates. By carefully selecting a gate's size, designers can optimize its drive strength. Larger gates can handle more load but consume more power and area, whereas smaller gates are faster but may struggle with larger loads. Finding the optimal gate size to balance performance metrics is crucial in achieving the desired fanout and overall circuit performance.
Net Ordering and Routing Strategies
Net ordering refers to the process of prioritizing the routing sequence based on the criticality and congestion level of the nets. In designs where certain nets have a high max fanout, proper net ordering can alleviate congestion by ensuring that high-criticality paths are routed with priority. This method, coupled with innovative routing algorithms, can also help distribute the load more evenly across the chip.
Comparative Analysis Table
| Aspect | High Fanout Impact | Low Fanout Benefits |
|---|---|---|
| Speed | Increased capacitance causing higher delays, reduced fMAX | Reduced delay and improved signal integrity |
| Standard Cell Density | Cell clustering and dense placement often required; potential placement conflicts | Better dispersal of cells, balanced layouts, enhanced routability |
| Routing Congestion | Higher routing resource demands leading to congestion hotspots | Eased routing with fewer wires per driver; more efficient use of channels |
| Mitigation Techniques | Buffer insertion, gate sizing, driver replication | Simpler routing strategies and improved placement with less congestion |
Detailed Practical Examples
High-Fanout in Large-Scale Designs
In any large-scale datapath, designers encounter the challenge of balancing performance and physical layout. For example, consider a complex microprocessor where a single control signal may need to reset or trigger multiple modules simultaneously. A high max datapath fanout in this scenario inevitably means the driving signal must handle numerous loads, often spread across different regions of the chip. Without intervention, this could lead to significant propagation delays and eventual timing violations in critical paths.
To manage this scenario, designers might opt to duplicate the fanout driver into several copies, each responsible for a portion of the routed loads. This division ensures that no single driver is overburdened, and the signals reach associated modules with reduced delay. Furthermore, strategic clustering and the use of buffers help ensure that the dictionary of signals is both robust and timely, upholding the performance standards required for high-speed operations.
Cell Density Adjustments and Congestion
In another practical context, consider a high-performance FPGA where various logic blocks are interconnected. In such a design, high fanout not only affects signal propagation but also forces the placement tools to pack the cells into smaller regions to maintain connectivity. This density can lead to localized routing congestion, where too many wires compete for limited physical space. The consequences include increased delays, potential crosstalk, and compromised signal integrity.
To alleviate these issues, a holistic approach is adopted. Designers integrate strategies that include sophisticated placement algorithms and routing optimizations which actively redistribute cells. Buffer insertion becomes especially relevant in these contexts, ensuring that long guided paths do not deteriorate performance. Additionally, careful manipulation of the maximum fanout constraint during synthesis allows for a more controlled and manageable cell density, enabling both high performance and lower congestion.
Best Practices for Managing Max Datapath Fanout
Balancing Trade-Offs
Every design decision in digital circuits entails trade-offs. Managing the "max datapath fanout" is no exception. Reducing fanout improves speed and lowers routing congestion, but it might necessitate additional driver circuits and increase the total area occupied by the design. Therefore, design engineers must balance these trade-offs:
- Optimizing Drive Strength: Select appropriate drive strengths for drivers depending on the load distribution. Increasing drive strength can mitigate delay, yet it must be balanced against potential power consumption issues.
- Using Hierarchical Buffering: An effective technique is to establish a hierarchical buffering strategy that segments long fanout nets into manageable sub-nets, each optimized individually.
- Design Partitioning: Partitioning the design into smaller functional blocks can distribute the fanout load more evenly and reduce localized congestion.
Impact of Timing Optimization
Timing optimization remains a core part of managing max datapath fanout. By setting constraints on signal fanout early in the design process, engineers guide the synthesis and place-and-route tools to prioritize critical timing paths. This proactive approach reduces the risk of timing violations and ensures that the signal propagation remains within acceptable limits. The interplay between timing constraints and routing optimizations is fundamental; while fanout reduction improves signal speed, it simultaneously enhances the reliability of the chip under varying environmental and operational conditions.
Final Considerations in Modern VLSI
Holistic Design Approaches
Modern VLSI design necessitates a holistic approach that takes into account multiple factors, including speed, power, area, and reliability. The max datapath fanout is particularly influential because it intertwines these factors. For instance, a design that aggressively minimizes fanout might achieve superior timing but could inadvertently increase the transistor count or the overall chip area, affecting cost-effectiveness and yield.
Designers must, therefore, weigh the benefits of reduced fanout such as improved signal speed and reduced routing complexity against potential impacts on cell density and power consumption. Leveraging simulation tools and iterative design methodologies, many engineers adopt feedback loops that refine fanout constraints based on real-world performance metrics, ensuring that the final design meets its intended specifications.
By carefully managing max datapath fanout through techniques like buffer insertion, gate sizing, and intelligent placement strategies, modern digital systems achieve a balanced optimization that caters to both high-performance operations and feasible, manufacturable layouts. The design methodologies continue to evolve, integrating advanced algorithms that further automate and enhance these optimizations.
