Common Misconceptions in Ohm's Law
Debunking Myths to Enhance Electrical Understanding
Key Takeaways
- Ohm's Law is not universally applicable and has specific conditions for its validity.
- Resistance is not the sole factor influencing electrical current; voltage plays a critical role as well.
- Misunderstandings often arise from conflating Ohm's Law with its mathematical expression, leading to incorrect applications.

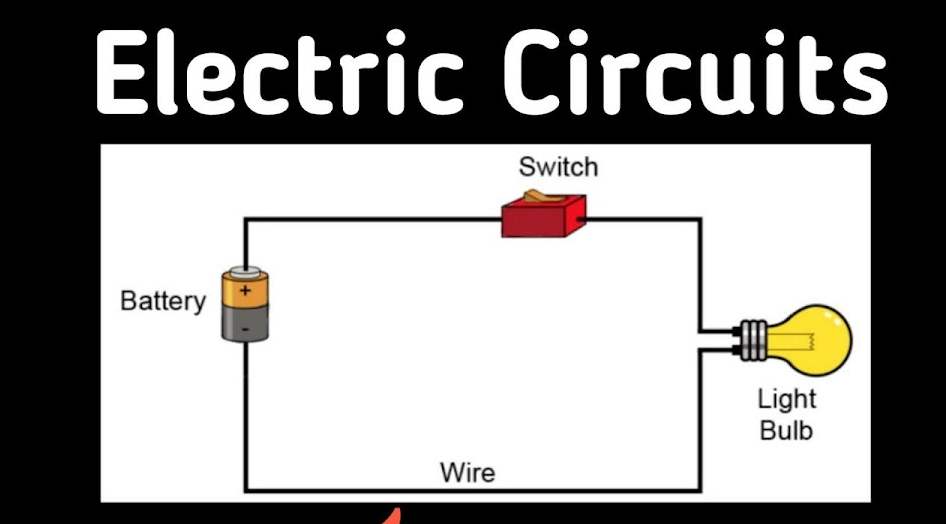

Introduction to Ohm's Law
Ohm's Law is a fundamental principle in electrical engineering and physics, expressing the relationship between voltage (V), current (I), and resistance (R) in an electrical circuit. It is commonly represented by the equation V = IR. Despite its simplicity and widespread use, several misconceptions about Ohm's Law persist, which can lead to misunderstandings and errors in both theoretical and practical applications.
Common Misconceptions About Ohm's Law
1. Ohm's Law Only Applies to Direct Current (DC) Circuits
One prevalent misconception is that Ohm's Law is exclusively relevant to DC circuits. While Ohm's Law was initially formulated for DC scenarios, it is also applicable to alternating current (AC) circuits with appropriate considerations. In AC circuits, impedance, which encompasses both resistance and reactance, replaces pure resistance in the Ohm's Law equation, adjusting the relationship to V = IZ, where Z is the impedance.
2. Ohm's Law Applies Universally to All Materials and Conditions
Many believe that Ohm's Law is a universal law of nature applicable to all materials under any condition. In reality, Ohm's Law is empirical and holds true only for ohmic materials, where the current-voltage relationship is linear and resistance remains constant within specific operational limits. Non-ohmic materials, such as semiconductors, diodes, and certain resistors, exhibit non-linear current-voltage characteristics and do not adhere to Ohm's Law.
Understanding Ohmic vs. Non-Ohmic Materials
Ohmic materials, like metals, have a constant resistance over a range of voltages, making their I-V relationship linear. Non-ohmic materials, on the other hand, have resistance values that change with voltage or current, resulting in a non-linear relationship. This distinction is crucial for accurately applying Ohm's Law in various electrical components.
3. Resistance is the Sole Factor Determining Current Flow
A common misunderstanding is that resistance alone dictates the flow of electrical current. According to Ohm's Law, both voltage and resistance play critical roles in determining the current: I = V/R. Ignoring the effect of voltage can lead to incomplete or inaccurate analyses of electrical circuits.
4. Misconstruing Ohm's Law as a Fundamental Physical Law
Some perceive Ohm's Law as a fundamental physical law akin to the conservation of energy. However, Ohm's Law is an empirical relationship derived from observation and experimentation. Unlike fundamental laws, it does not govern all electrical phenomena but serves as a useful approximation under specific conditions.
5. Confusion Between Ohm's Law and its Mathematical Expression (V = IR)
There is often confusion between Ohm's Law itself and the equation V = IR. Ohm's Law fundamentally states that current is directly proportional to voltage and inversely proportional to resistance, applicable only when resistance remains constant. The equation V = IR is a representation derived from Ohm's Law under the assumption of constant resistance, and using it indiscriminately without considering the underlying conditions can lead to errors.
6. Resistance is Always Constant Regardless of External Factors
Another misconception is that resistance in a circuit remains fixed regardless of external influences. In reality, resistance can vary with factors such as temperature, voltage, and material properties. For example, in conductive materials like metals, resistance typically increases with rising temperature. This variability means that Ohm's Law applies only when resistance is stable under the given conditions.
7. Electrons and Current Misconceptions
Misunderstandings about the behavior of electrons and the nature of electrical current often lead to faulty interpretations of Ohm's Law. Common misconceptions include the belief that batteries produce electrons, electrons move at near-light speeds, or that electrons are consumed in a circuit. In reality, batteries provide energy to drive electrons through a circuit, electrons drift at much slower speeds, and they are not consumed but continue to circulate within the conductive path.
8. Mixing Up Units and Variables
Practical application errors often stem from incorrect unit conversions or inconsistent use of units. Ohm's Law requires voltage in volts (V), current in amperes (A), and resistance in ohms (Ω). Mixing units or failing to convert them appropriately can result in inaccurate calculations and misunderstandings of circuit behavior.
9. Ohm's Law is Only Relevant for Resistors
There is a misconception that Ohm's Law applies solely to resistors. While resistors are the primary components where Ohm's Law is directly applicable, other components like some capacitors and inductors can also obey Ohm's Law under specific conditions. However, in non-linear components such as diodes, the relationship between voltage and current does not follow Ohm's Law.
Summary of Misconceptions
| Misconception | Clarification |
|---|---|
| Ohm's Law Only Applies to DC Circuits | Applicable to both DC and AC circuits with impedance considerations. |
| Ohm's Law is Universal | Only holds for ohmic materials under specific conditions. |
| Resistance Solely Determines Current | Both voltage and resistance influence current flow. |
| Ohm's Law is a Fundamental Physical Law | It's an empirical relationship valid under certain conditions. |
| V = IR is Ohm's Law | It's a mathematical representation assuming constant resistance. |
| Resistance is Always Constant | Resistance can vary with temperature, voltage, and material properties. |
| Electrons are Produced or Consumed in Circuits | Electrons are driven by energy from the power source and continue to circulate. |
| Ohm's Law Only Relevant for Resistors | Applies to any component that maintains a constant resistance under operating conditions. |
Implications of Misconceptions
Misunderstanding Ohm's Law can lead to significant errors in designing and analyzing electrical circuits. For students and professionals alike, accurate comprehension is crucial for troubleshooting, optimizing circuit performance, and ensuring safety. Misconceptions may result in improper component selection, miscalculations of current and voltage levels, and potential circuit failures.
Addressing Misconceptions in Education
Educators play a vital role in mitigating misconceptions about Ohm's Law through effective teaching strategies:
1. Practical Demonstrations
Hands-on experiments and demonstrations help bridge the gap between theoretical concepts and real-world applications. By observing Ohm's Law in action, students can better grasp the relationship between voltage, current, and resistance.
2. Blended Teaching Methods
Incorporating virtual simulations, interactive models, and reference materials can enhance understanding. Diverse teaching tools cater to different learning styles and reinforce the correct application of Ohm's Law.
3. Emphasizing Conceptual Understanding
Focusing on the underlying principles rather than rote memorization of formulas encourages deeper comprehension. Explaining how and why Ohm's Law works under specific conditions helps prevent surface-level misunderstandings.
4. Addressing Common Errors
Identifying and discussing frequent misconceptions allows students to recognize and correct their misunderstandings. Providing example problems that highlight these errors can reinforce correct application.
Conclusion
Ohm's Law is a cornerstone of electrical engineering and physics, offering a straightforward relationship between voltage, current, and resistance. However, its simplicity belies the complexity of its applications and the potential for widespread misconceptions. Understanding the limitations and proper contexts of Ohm's Law is essential for accurate circuit analysis and design. By addressing these common misconceptions through effective education and practical application, a more robust and accurate comprehension of electrical principles can be achieved.
