Exploring the Radial System in Electrical Distribution
Insights from Turan Gören's "Electrical Power Distribution Engineering"
Key Takeaways
- Tree-Structure Layout: The radial system is designed with a single power source that feeds electrical loads in a unidirectional, tree-like structure.
- Cost-Effectiveness: This configuration is recognized for its lower initial investment, making it attractive for light to medium load areas.
- Reliability Concerns: Despite its simplicity, the absence of redundant paths means that a fault on a feeder results in a widespread outage downstream.
Understanding the Radial System

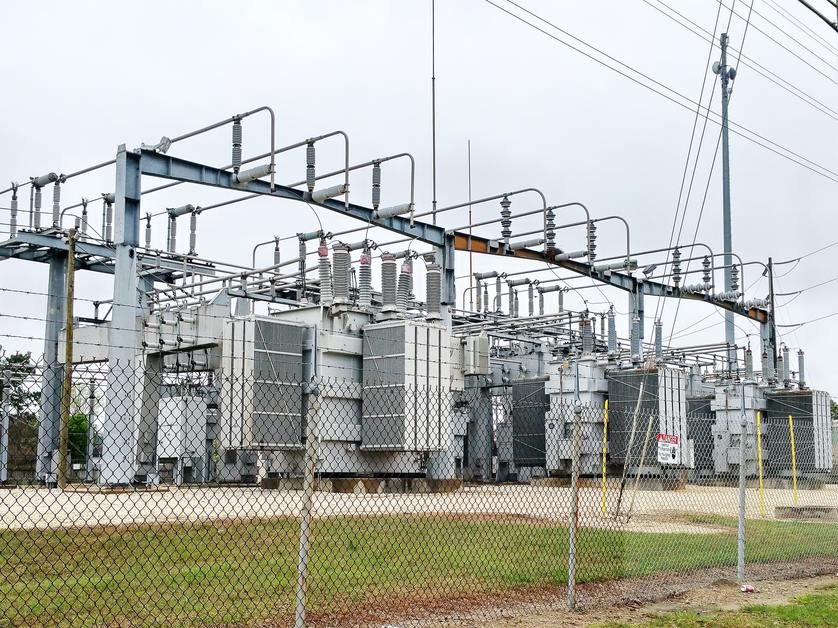

The radial system, as discussed in Turan Gören's "Electrical Power Distribution Engineering," is a foundational design in electrical power distribution. According to this conceptualization, the radial system is characterized by a single source or substation that emanates power through one or more feeders, forming a tree-like network. Each branch of the system extends outward from the main feeder, ensuring that every end customer is supplied directly by a unique path from a common node.
In practical terms, this design implies that the distribution of electric power follows a unidirectional flow: from the substation to the load points along a single route without the possibility of alternate paths. The benefits of such a configuration are most notable in areas where establishing multiple pathways or loops would be economically or geographically unfeasible. For instance, in sparsely populated suburban or rural areas, the single feeder design optimizes investment by keeping construction and maintenance costs low.
It is important to note that the primary strength of the radial system lies in its cost efficiency and simplicity of design. The ease of implementation means that power distribution companies can deploy such systems rapidly where demand is moderate, thereby reaching areas that might otherwise be uneconomical to connect using more complex network structures.
Technical Characteristics
Single Feeders and Branching
At the heart of the radial system is the concept of single feeders. These feeders are the main lines that originate from a substation and carry power outwards. From these primary feeders, smaller branch lines or laterals extend to serve customers. Within the framework of Turan Gören's discussion, this approach creates a structure that is both easy to design and maintain. The fundamental configuration resembles that of a tree, with a clear root (the substation) and leaves (the customer endpoints).
Unidirectional Power Flow
A distinguishing feature of the radial system is its unidirectional flow of electricity. This means that power is transmitted exclusively from the source toward the consumers with no provision for reverse flow. Such a single-direction system simplifies the electrical network, making it less complicated in terms of protection schemes and system monitoring. Additionally, the lack of alternative power pathways greatly reduces the complexity of load management and fault detection.
Cost Efficiency and Economic Considerations
From an economic standpoint, the radial system is among the most cost-effective configurations available for distribution networks. The minimized requirement for additional infrastructure (compared to looped or mesh networks) results in lower initial investment and reduced ongoing maintenance costs. This is especially advantageous in regions where load demand is moderate, as the radial system provides a pragmatic balance between performance and cost.
Vulnerability and Reliability Issues
Despite its many advantages, the radial system is not without its challenges. One of the most critical issues described in Turan Gören's text is the vulnerability to fault conditions. Since the design relies on a single path to deliver power, any fault or break in a feeder will interrupt electrical service to all loads downstream from the fault location. Such an outage can result in significant inconvenience and operational disruptions until repairs are made. Consequently, while the radial configuration is economically appealing, it necessitates careful planning and rapid fault-responsive measures to mitigate potential reliability concerns.
Further, consumers located at the farther ends of the radial system might experience issues such as voltage drops and fluctuations under varying load conditions. These technical challenges require continuous monitoring and sometimes supplementary voltage regulation measures to ensure that even the remote endpoints receive stable power.
Design and Operational Considerations
When implementing a radial distribution system, engineers must pay close attention to various design factors. Turan Gören’s work emphasizes the importance of strategic planning, particularly:
Feeder Sizing and Load Balancing
Feeder sizing is critical to accommodate the specific load demands without incurring significant voltage drop issues. The branch lengths must be carefully calculated and balanced to ensure each feeder can handle the maximum expected load efficiently.
Fault Detection and Protection Schemes
Given the inherent vulnerability of radial systems to outages from feeder faults, robust fault detection mechanisms are essential. Protective devices such as circuit breakers and fuses are strategically positioned throughout the network to isolate faults rapidly and minimize the impact on customers.
Maintenance and Monitoring
Continuous monitoring and regular maintenance contribute to the overall reliability of the radial systems. With the advent of advanced supervisory control and data acquisition (SCADA) systems, power distribution companies can now detect faults more quickly, and remedial actions can be taken before significant power interruptions occur.
Comparative Overview: Radial vs. Alternative Systems
To better grasp the unique aspects of the radial system, it is helpful to understand how it compares to other power distribution configurations such as loop (ring main) systems. The table below provides a comparative overview:
| Aspect | Radial System | Loop/Ring Main System |
|---|---|---|
| Configuration | Single-source feeder with tree-like branches. | Multiple interconnected feeders forming a closed loop. |
| Cost | Lower initial investment; simpler to build. | Higher cost due to additional wiring and infrastructure. |
| Reliability | Less reliable; any fault can disrupt service for downstream customers. | More reliable; alternate pathways can supply power if one feeder fails. |
| Maintenance | Simpler maintenance, but fault isolation can be challenging. | Complex maintenance due to network redundancy. |
| Usage | Typically used in light to medium-density load areas; rural and suburban. | Commonly used in urban areas where load demand is high. |
The above table illustrates that while the radial system is favored for its simplicity and cost-effectiveness, the lack of redundancy can be a serious disadvantage, especially in areas with higher load densities.
Interpretation in Turan Gören's Framework
In Turan Gören's "Electrical Power Distribution Engineering," the radial system is presented not merely as an architectural choice but as a pragmatic solution tailored to meet specific economic and operational demands. Gören underscores the inherent trade-offs between cost and reliability:
On one hand, the simplicity of the radial system makes it an ideal candidate for deployments where budget constraints are a primary consideration. The layout minimizes both capital expenditure and long-term maintenance costs, making it particularly attractive for areas with moderate power requirements. On the other hand, the design's lack of redundancy leaves it vulnerable in the event of a fault. Gören’s analysis points out that ensuring high reliability in a radial system may require supplementary systems—such as rapid fault detection and automatic isolation techniques—to mitigate the effects of any single point of failure.
Furthermore, Gören discusses the importance of proper system planning and fault management. Advanced monitoring tools and protective relays are critical in ensuring that any fault or overload condition is promptly addressed. This balance of cost, simplicity, and operational security is central to Gören's treatment of dynamic distribution paradigms, where each network design is evaluated based on its fit for the intended application environment.
Practical Applications and Real-World Examples
In practical applications, radial distribution systems have been widely utilized. For instance, many rural and suburban power grids utilize radial configurations due to their straightforward planning and lower infrastructure costs. This is particularly highlighted in regions where the population density does not justify the expense of more complex looped systems.
However, when implementing such systems in areas with variable load demands or anywhere that service continuity is critically paramount, engineers often incorporate technological enhancements. These improvements might include:
Smart Grid Technologies
The incorporation of smart grid technologies helps in monitoring feeder conditions and facilitating rapid response to faults. By integrating sensors and automated controls, utilities can minimize service interruptions even in a typically vulnerable radial setup.
Voltage Regulation Mechanisms
In order to counteract potential voltage drops at the farthest reaches of the network, utilities might deploy voltage regulation devices. These devices adjust the voltage supply dynamically in response to varying load conditions, ensuring a stable power supply throughout the distribution network.
Overall, the success of a radial distribution system depends on a fine balance between cost efficiency, ease of implementation, and the strategic integration of modern fault management and load balancing techniques.
Implementation and Future Directions
While the traditional radial system continues to serve many regions effectively, the modern evolution of power distribution is gradually introducing hybrid configurations that blend the simplicity of radial systems with enhanced reliability features drawn from loop or mesh systems. This evolution is driven by the increasing demand for both cost-effective solutions and superior service reliability.
Future improvements may involve the integration of distributed energy resources (DERs), which can provide local power generation capabilities to minimize the impact of a feeder fault. These advancements aim to reduce vulnerability in a radial system by incorporating decentralized sources that can provide backup power in the event of an outage.
Turan Gören’s analysis in his book remains a pivotal reference for understanding these systems, as it lays the groundwork upon which future innovations are built. He provides the theoretical framework necessary for appreciating not only the operational mechanics but also the economic and practical efficiencies of the radial configuration.
