Highlights

Understand the Core: SPARQL is the standard query language for RDF (Resource Description Framework) data, which represents information as interconnected triples (subject-predicate-object).
Query Graph Data: Unlike SQL for relational tables, SPARQL is designed to query graph databases, navigating relationships and retrieving linked data across diverse sources.
Versatile Query Forms: Learn different ways to query, including retrieving specific data (SELECT), checking for patterns (ASK), building new graphs (CONSTRUCT), and describing resources (DESCRIBE).

Demystifying SPARQL: The Language of Linked Data

Welcome to the world of SPARQL! Pronounced "sparkle," SPARQL stands for SPARQL Protocol and RDF Query Language. It's the standard language and protocol, recognized by the W3C, designed specifically for querying and manipulating data stored in the Resource Description Framework (RDF) format. Think of it like SQL, but instead of querying rows and columns in relational databases, SPARQL queries graph-structured data, often called "triple stores" or knowledge graphs.

The power of SPARQL lies in its ability to navigate and retrieve information from complex, interconnected datasets. As data becomes increasingly linked across the web and within organizations (think Wikidata, scientific databases, or enterprise knowledge graphs), SPARQL provides the means to ask intricate questions and extract meaningful insights that traditional query methods might struggle with.

The Foundation: Understanding RDF Triples

Before diving into SPARQL queries, it's essential to grasp the fundamental concept of RDF. RDF models information as a collection of triples. Each triple consists of three parts:

Subject: The resource being described (e.g., a person, place, concept). Often represented by a URI.
Predicate: The property or relationship connecting the subject and object (e.g., 'has name', 'is located in', 'plays instrument'). Also typically a URI.
Object: The value of the property or another resource linked to the subject (e.g., a name like "Alice", another resource like ':TheBeatles', or a literal value). Can be a URI or a literal (like a string or number).

For example, a simple statement like "Paul McCartney played the Bass Guitar" can be represented as an RDF triple:

<http://example.org/person#PaulMcCartney> <http://example.org/vocab#playedInstrument> <http://example.org/instrument#BassGuitar> .

Collections of these triples form a directed graph, where subjects and objects are nodes, and predicates are the labeled edges connecting them. SPARQL is designed to query these graph structures effectively.

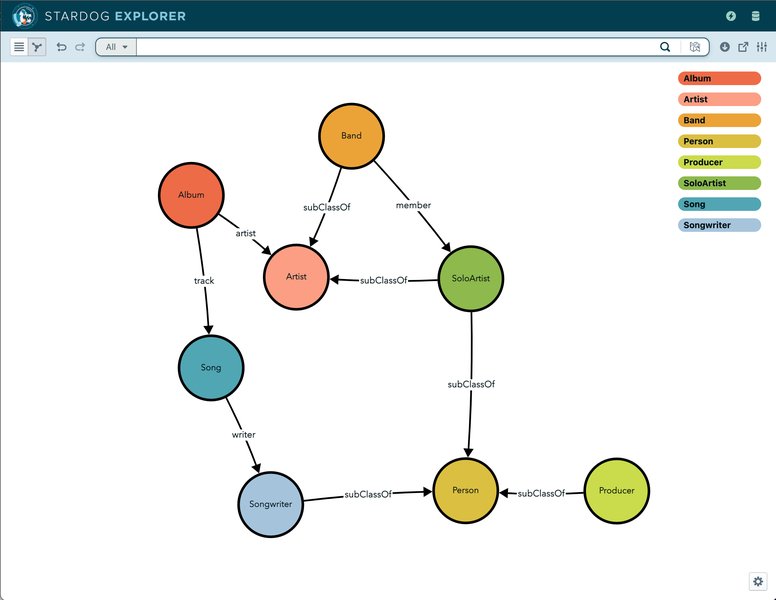

Diagram illustrating an RDF graph structure for music data

An example RDF graph visualizing relationships between musical artists, albums, and songs.

Crafting Your First SPARQL Queries

A SPARQL query allows you to specify patterns you want to find within the RDF graph. Let's break down the structure of a typical query.

Anatomy of a SPARQL Query

Most SPARQL queries share a common structure:

Prefix Declarations (`PREFIX`): These act as shortcuts for long URIs, making queries more readable. For instance, `PREFIX foaf: <http://xmlns.com/foaf/0.1/>` allows you to write `foaf:name` instead of the full URI.
Query Form (`SELECT`, `ASK`, `CONSTRUCT`, `DESCRIBE`): This determines the type of result you want. We'll explore these below.
Dataset Clause (Optional - `FROM`, `FROM NAMED`): Specifies the RDF graph(s) to query.
Query Pattern (`WHERE`): This is the core of the query, containing one or more triple patterns. Triple patterns look like RDF triples but can include variables.
Solution Modifiers (Optional - `ORDER BY`, `LIMIT`, `OFFSET`, `GROUP BY`, `HAVING`): These refine, sort, limit, or aggregate the results.

Example: Finding Names

Here’s a basic `SELECT` query to find the names of all entities identified as people in a dataset using the FOAF (Friend of a Friend) vocabulary:


PREFIX foaf: <http://xmlns.com/foaf/0.1/>  # Define the FOAF prefix

SELECT ?personName  # Select the variable ?personName
WHERE {
  ?person a foaf:Person .       # Find things that are a foaf:Person, bind to ?person
  ?person foaf:name ?personName . # Find the foaf:name of those things, bind to ?personName
}

Let's break this down:

`PREFIX foaf: ...`: Defines a shortcut for the FOAF namespace URI.
`SELECT ?personName`: Specifies that we want the values bound to the `?personName` variable in our results. Variables in SPARQL typically start with `?` or `$`.
`WHERE { ... }`: Contains the graph patterns to match against the RDF data.
`?person a foaf:Person .`: This is a triple pattern. `?person` is a variable representing any resource. `a` is shorthand for the predicate `rdf:type`. `foaf:Person` is the object (the type we're looking for). This pattern finds all resources that are of type `foaf:Person`.
`?person foaf:name ?personName .`: This pattern shares the same subject (`?person`) as the previous pattern (indicated implicitly by the structure, often explicitly linked using `;` if the subject is the same for multiple predicates). It looks for the `foaf:name` property of those persons and binds the literal value (the name) to the variable `?personName`.

The result of this query would be a table with a single column (`personName`) listing all the names found.

Exploring Different SPARQL Query Forms

SPARQL offers several query forms to suit different needs:

1. SELECT Queries

The most common form, `SELECT`, returns a table of results, similar to SQL. You specify the variables you want to retrieve.

Example: Get people and their email addresses


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT ?person ?email  # Select both the person resource and their email
WHERE {
  ?person a foaf:Person .
  ?person foaf:mbox ?email . # foaf:mbox is commonly used for email addresses
}

This would return a table with two columns: `?person` (containing URIs of people) and `?email` (containing their email addresses).

2. ASK Queries

`ASK` queries return a simple boolean (`true` or `false`) indicating whether the specified query pattern matches *anything* in the dataset.

Example: Check if anyone named "Alice" exists


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

ASK WHERE {
  ?person foaf:name "Alice" . # Does any resource have the name "Alice"?
}

This returns `true` if at least one match is found, `false` otherwise.

3. CONSTRUCT Queries

`CONSTRUCT` queries generate a *new* RDF graph based on the results of the `WHERE` clause. You provide a template for the triples to be included in the resulting graph.

Example: Create a graph of people and their names


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

CONSTRUCT {
  ?person foaf:name ?name . # Template for the output graph
}
WHERE {
  ?person a foaf:Person .
  ?person foaf:name ?name . # Pattern to find the data
}

This query finds all people and their names and constructs a new RDF graph containing only those `foaf:name` triples.

4. DESCRIBE Queries

`DESCRIBE` queries return an RDF graph that describes one or more specified resources. The exact information returned (which triples about the resource) is determined by the SPARQL processor implementation, but it typically includes triples where the resource is the subject or object.

Example: Describe the resource representing Alice


DESCRIBE <http://example.org/person#Alice>

This would return an RDF graph containing various known triples about the resource identified by the URI ``.

Refining Your Queries: Modifiers and Filters

SPARQL provides several clauses to control and refine the results of your queries.

Filtering Results (`FILTER`)

The `FILTER` clause allows you to add constraints to the solutions based on conditions evaluated on variables. It's similar to the `WHERE` clause in SQL but operates within the SPARQL `WHERE` block.

Example: Find people older than 30


PREFIX foaf: <http://xmlns.com/foaf/0.1/>
PREFIX xsd: <http://www.w3.org/2001/XMLSchema#>

SELECT ?name ?age
WHERE {
  ?person foaf:name ?name .
  ?person foaf:age ?age .
  FILTER (?age > 30) # Keep only results where age is greater than 30
}

You can use various functions within `FILTER`, such as comparison operators (`>`, `<`, `=`), logical operators (`&&`, `||`, `!`), string functions (`STRSTARTS`, `REGEX`), and type checks (`isLiteral`, `isURI`).

Handling Optional Information (`OPTIONAL`)

Sometimes, you want to retrieve information if it exists, but not exclude results if it doesn't. The `OPTIONAL` clause is perfect for this.

Example: Get names and optionally homepages


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT ?name ?homepage
WHERE {
  ?person foaf:name ?name .
  OPTIONAL { ?person foaf:homepage ?homepage . } # Include homepage if available
}

This query returns all names. If a person has a `foaf:homepage` defined, the `?homepage` variable will be bound; otherwise, it will be unbound for that result row.

Combining Alternatives (`UNION`)

The `UNION` clause combines results from two or more different graph patterns.

Example: Find people who have an email OR a homepage


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT ?person ?contact
WHERE {
  { ?person foaf:mbox ?contact . } # Pattern 1: Find email
  UNION
  { ?person foaf:homepage ?contact . } # Pattern 2: Find homepage
}

This returns people and either their email or homepage, binding the found value to `?contact`.

Ordering, Limiting, and Offsetting Results

`ORDER BY`: Sorts the results based on one or more variables (e.g., `ORDER BY ?name` or `ORDER BY DESC(?age)`).
`LIMIT`: Restricts the number of results returned (e.g., `LIMIT 10` returns the top 10 results).
`OFFSET`: Skips a specified number of results before starting to return them (e.g., `OFFSET 20 LIMIT 10` returns results 21-30).

Example: Get the 5 youngest people


PREFIX foaf: <http://xmlns.com/foaf/0.1/>

SELECT ?name ?age
WHERE {
  ?person foaf:name ?name .
  ?person foaf:age ?age .
}
ORDER BY ASC(?age) # Order by age, ascending
LIMIT 5           # Return only the first 5

Aggregation (`GROUP BY`, `COUNT`, `SUM`, `AVG`, `MIN`, `MAX`)

SPARQL supports aggregation functions, similar to SQL, often used with `GROUP BY`.

Example: Count the number of people in each city


PREFIX foaf: <http://xmlns.com/foaf/0.1/>
PREFIX vcard: <http://www.w3.org/2006/vcard/ns#>

SELECT ?city (COUNT(?person) AS ?numberOfPeople) # Count people, alias as ?numberOfPeople
WHERE {
  ?person a foaf:Person .
  ?person vcard:adr ?address . # Assuming vcard ontology for addresses
  ?address vcard:locality ?city . # Get the city from the address
}
GROUP BY ?city # Group results by city
ORDER BY DESC(?numberOfPeople) # Order by count, descending

Key SPARQL Clauses and Functions Summary

This table provides a quick reference to some of the most common SPARQL clauses and functions discussed:

Clause/Function	Purpose	Example Use
`PREFIX`	Declare namespace shortcuts	`PREFIX foaf: <http://xmlns.com/foaf/0.1/>`
`SELECT`	Retrieve variables and their bindings	`SELECT ?name ?age`
`WHERE`	Specify graph patterns to match	`WHERE { ?s ?p ?o . }`
`ASK`	Check if a pattern exists (returns true/false)	`ASK { ?person foaf:name "Alice" . }`
`CONSTRUCT`	Create a new RDF graph from results	`CONSTRUCT { ?s ?p ?o . } WHERE { ... }`
`DESCRIBE`	Return an RDF graph describing a resource	`DESCRIBE <resource_uri>`
`FILTER`	Constrain results based on conditions	`FILTER (?age > 18)`
`OPTIONAL`	Include patterns if they match, without failing the query	`OPTIONAL { ?person foaf:homepage ?hp . }`
`UNION`	Combine results from alternative patterns	`{ ?s a :Type1 . } UNION { ?s a :Type2 . }`
`ORDER BY`	Sort results	`ORDER BY DESC(?score)`
`LIMIT`	Restrict the number of results	`LIMIT 100`
`OFFSET`	Skip a number of results	`OFFSET 50`
`GROUP BY`	Group results for aggregation	`GROUP BY ?category`
`COUNT`, `SUM`, `AVG`, `MIN`, `MAX`	Aggregation functions	`SELECT (COUNT(?item) AS ?count)`
`GRAPH`	Query named graphs within a dataset	`GRAPH <graph_uri> { ?s ?p ?o . }`

Comparing SPARQL Query Forms

Different SPARQL query forms serve distinct purposes. This radar chart visualizes a relative comparison of the main query forms (`SELECT`, `ASK`, `CONSTRUCT`, `DESCRIBE`) based on common use cases and characteristics. The scores are subjective, intended to illustrate relative strengths:

As shown, `SELECT` excels at retrieving structured data, `ASK` is best for existence checks, `CONSTRUCT` is designed for building new graphs, and `DESCRIBE` focuses on providing information about specific resources. Simplicity and flexibility vary, with `ASK` often being the simplest and `SELECT` or `CONSTRUCT` offering more flexibility through modifiers.

Visualizing SPARQL Concepts

This mind map illustrates the key components and concepts surrounding the SPARQL query language, providing a visual overview of how different elements relate to each other.

mindmap root["SPARQL Tutorial"] id1["Core Concepts"] id1a["RDF (Resource Description Framework)"] id1a1["Triples (Subject, Predicate, Object)"] id1a2["Graph Data Model"] id1a3["URIs & Literals"] id1b["SPARQL Query Language"] id1b1["Purpose: Querying RDF"] id1b2["Protocol: Accessing Endpoints"] id2["Query Structure"] id2a["PREFIX Declaration"] id2b["Query Form (SELECT, ASK, CONSTRUCT, DESCRIBE)"] id2c["WHERE Clause"] id2c1["Graph Patterns"] id2c2["Triple Patterns"] id2c3["Variables (? or $)"] id2d["Solution Modifiers"] id2d1["ORDER BY"] id2d2["LIMIT / OFFSET"] id2d3["GROUP BY / HAVING"] id3["Key Clauses & Functions"] id3a["FILTER"] id3b["OPTIONAL"] id3c["UNION"] id3d["GRAPH"] id3e["Aggregation (COUNT, SUM, AVG, MIN, MAX)"] id3f["String Functions (REGEX, STRSTARTS)"] id3g["Type Checking (isURI, isLiteral)"] id4["Advanced Topics"] id4a["Federated Queries (SERVICE)"] id4b["SPARQL Update (INSERT, DELETE)"] id4c["Named Graphs"] id4d["Reasoning / Inference"] id5["Learning & Practice"] id5a["Tools (Jena, Stardog, GraphDB)"] id5b["Public Endpoints (Wikidata, DBpedia)"] id5c["Online Tutorials"] id5d["Best Practices"]

Watch and Learn: SPARQL Explained

Visual learning can be very effective. This video provides an introduction to the four main SPARQL query forms (`ASK`, `CONSTRUCT`, `DESCRIBE`, `SELECT`), giving you a foundational understanding of what each form does and when you might use it. It's a great starting point before diving into writing complex queries.

SPARQL Tutorial 1 - Introducing SPARQL (Source: YouTube)

Advanced SPARQL Features

Beyond the basics, SPARQL offers capabilities for more sophisticated querying:

Federated Queries (`SERVICE`): SPARQL allows querying across multiple SPARQL endpoints (different RDF datasets hosted separately) within a single query. This is powerful for integrating distributed linked data.
SPARQL Update: This is a companion specification to the query language that defines operations for modifying RDF graphs (e.g., `INSERT DATA`, `DELETE DATA`, `DELETE/INSERT`).
Named Graphs: RDF datasets can be organized into multiple named graphs, plus one default graph. The `GRAPH` keyword allows queries to target specific graphs within the dataset.
Property Paths: Allow concisely expressing paths of predicates between resources (e.g., finding grandchildren without multiple triple patterns).
Reasoning/Inference: Some SPARQL endpoints can perform reasoning (based on RDFS or OWL ontologies) over the data before executing the query, allowing you to query for inferred knowledge not explicitly stated in the triples.

Tips for Learning and Using SPARQL Effectively

Start Simple: Begin with basic `SELECT` queries on small, understandable datasets. Gradually add complexity with `FILTER`, `OPTIONAL`, and other clauses.
Understand Your Data: Explore the structure (ontologies, common predicates) of the RDF data you are querying. Knowing the schema helps formulate effective patterns.
Use Prefixes: Always declare prefixes for namespaces to keep queries readable and maintainable.
Leverage Tools: Use SPARQL editors with syntax highlighting and auto-completion (like those in Stardog Studio, GraphDB Workbench, or online tools).
Test Incrementally: Build complex queries step-by-step, testing each part to ensure it returns the expected results before adding more patterns or clauses.
Practice on Real Data: Use public SPARQL endpoints like the Wikidata Query Service or DBpedia to practice querying large, real-world knowledge graphs. Interactive tutorials are also highly beneficial.
Consult Documentation: Refer to the official W3C specifications or documentation for specific SPARQL implementations when needed.

Tools and Platforms for Practice

Hands-on practice is crucial. Here are some popular tools and platforms:

Wikidata Query Service: An excellent online platform for running SPARQL queries against the massive Wikidata knowledge graph. It includes many examples and a user-friendly interface.
Apache Jena: A popular open-source Java framework for building Semantic Web and Linked Data applications. It includes the Fuseki SPARQL server for hosting RDF data and providing a SPARQL endpoint.
Stardog: A commercial enterprise Knowledge Graph platform that includes a powerful SPARQL engine, Stardog Studio (an IDE for SPARQL), and interactive tutorials.
GraphDB: Another commercial RDF database (triplestore) with extensive SPARQL support, reasoning capabilities, and a management workbench.
data.world: A platform for data collaboration that includes support for RDF datasets and SPARQL querying, along with tutorials.
Public SPARQL Endpoints: Many linked data projects provide public endpoints (e.g., DBpedia, LinkedGeoData) for exploration.
