Case Study on TCP/IP Offloading Hardware
An in-depth exploration of hardware acceleration in network communications
Key Highlights
- Reduced CPU Utilization: Offloading TCP/IP processing diminishes CPU load, freeing resources for other tasks.
- Enhanced Network Throughput: Hardware offload engines boost data transfer rates and lower latency.
- Implementation Complexity: Integrating network protocols into specialized hardware presents both opportunities and challenges.
Understanding TCP/IP Offloading
In today’s high-speed networking environments, TCP/IP offloading hardware—often implemented as TCP Offload Engines (TOEs)—plays a pivotal role in mitigating the processing burden placed on host CPUs. Traditionally, the full TCP/IP stack is processed by the central processing unit, which can lead to performance bottlenecks in data centers, enterprise networks, and high-speed communications systems. The development of specialized hardware to assume these duties has revolutionized network performance by efficiently handling protocol-specific tasks.
Overview of TCP/IP Offloading Technologies
TCP/IP offloading involves shifting the responsibility of processing the TCP/IP stack from the software running on the host to a network interface card (NIC) with dedicated hardware. These offload engines streamline tasks such as segmentation, checksum calculation, packet assembly, and error handling. By doing so, they enable higher data throughput and reduced latency, which is essential for modern applications that demand high performance.
Conceptual Framework
Traditional network systems handle each layer of the TCP/IP stack in software, which burdens the CPU, especially under high network traffic conditions. With TCP/IP offloading, tasks are transferred to a specialized chip embedded within the NIC. This chip is designed for efficient and parallel processing, enabling networks to benefit from faster data handling and reduced processing delays. Offloading mechanisms such as Large Send Offload (LSO) and Large Receive Offload (LRO) further improve efficiency by reducing the number of interrupts and context switches required in packet processing.
Historical Evolution
Over the years, network performance has increasingly relied on hardware acceleration techniques. Early implementations explored software optimizations; however, as network speeds surged to gigabit and 10-gigabit Ethernet rates, the need for specialized hardware became clear. Case studies from both academia and industry have demonstrated that offloading TCP/IP tasks to hardware not only alleviates CPU load but also significantly improves overall network scalability and performance. The evolution from software-based solutions to dedicated hardware offload devices marks a major milestone in achieving high-performance networking.
In-Depth Analysis of the Case Study
Technical Implementation
Hardware-based TCP/IP offloading solutions integrate into existing network infrastructures primarily through specialized NICs. These devices incorporate a dedicated processor or FPGA (Field-Programmable Gate Array) that executes network protocol functions. The architecture typically comprises three elements:
- Network Interface Card (NIC): A NIC embedded with offloading capabilities can process network packets independently of the host CPU by handling segmentation, checksum computations, and packet reassembly.
- TCP/IP Offload Engine (TOE): This is a specialized hardware module within the NIC that manages the protocol stack, substantially reducing the number of interrupts the host system must process.
- Hardware/Software Hybrid Solutions: Some implementations utilize a combination of hardware acceleration and embedded software processing, allowing for adaptive performance improvements while maintaining a level of flexibility for protocol updates.
Such implementations can be seen in advanced configurations like FPGA-based TOEs, which customize processing pathways to achieve targeted performance gains, or through programmable gigabit Ethernet controllers that dynamically manage offloading tasks.
Benefits and Performance Gains
Reduced CPU Utilization and Energy Efficiency
One of the most significant advantages of TCP/IP offloading hardware is the dramatic reduction in CPU load. Offloading routine network tasks means that central processors are free to execute other critical applications, which is particularly advantageous in high-demand environments like data centers. This not only improves overall system performance but also leads to lower energy consumption as fewer cycles are spent on intensive network computation.
Improved Throughput and Lower Latency
By delegating TCP/IP processing to dedicated hardware, network throughput is significantly enhanced. This is especially evident in scenarios where data transfer rates approach multi-gigabit speeds. Key tasks such as TCP segmentation and checksum calculations are executed faster, reducing latency and allowing more efficient data transmission. Results from case studies have shown increases in throughput by up to 50% when compared to software-only implementations.
Enhanced Scalability for Future Networks
The scalability offered by TCP/IP offloading hardware is critical for modern networks that face exponential growth in data traffic. In data centers and enterprise networks, where multiple servers and storage systems interact simultaneously, the ability to manage high-speed links without burdening the CPU is invaluable. TOEs promote hardware scalability that directly correlates with the increasing demands on network performance.
Challenges and Limitations
Implementation Costs and Complexity
Despite their promising benefits, implementing TCP/IP offloading hardware comes with its share of challenges. The design and development of a TOE require significant investment in both time and financial resources. Integrating critical TCP/IP functions—such as congestion control, flow management, and error recovery—directly into hardware can be complex, given the inherently flexible nature of these protocols. As such, organizations must balance the cost of development and deployment against the performance benefits.
Flexibility versus Specialized Hardware
Another challenge associated with hardware offloading is the trade-off between performance and flexibility. Hardware implementations of TCP/IP protocols, though efficient at handling standardized tasks, tend to be less adaptive than their software counterparts. With the continuous evolution of network protocols and security standards, significantly updating hardware TOEs to accommodate new requirements can be cumbersome. This rigidity may limit the ability of organizations to adapt swiftly to changing technological landscapes.
Integration with Existing Systems
The integration of offloading hardware into established network systems is another critical challenge. Compatibility issues can arise with legacy systems where the existing software architecture does not immediately support hardware acceleration. Successful integration demands thorough planning and often a hybrid approach where both software and hardware solutions coexist, ensuring seamless operation during the transition period.
Real-World Deployment Scenarios

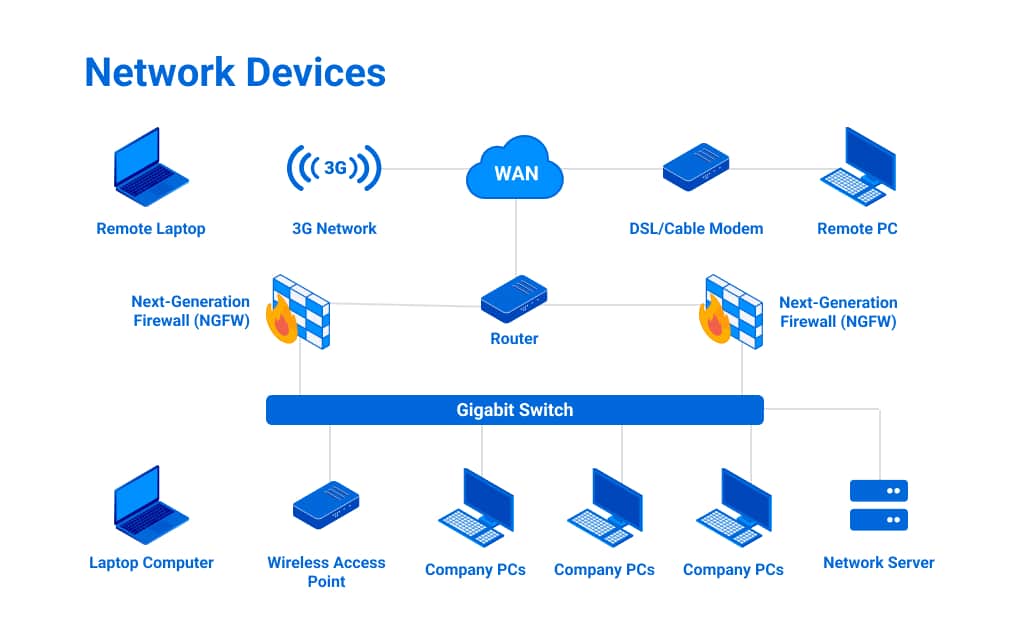

Data Centers and Enterprise Environments
In high-performance data centers that manage colossal volumes of data, the benefits of TCP/IP offloading are particularly compelling. Here, every millisecond of CPU time saved can translate into significant performance gains. Offloading reduces bottlenecks, enabling servers to handle more connections and larger data packets, which is crucial for applications like iSCSI, network file systems, and cloud computing services.
Case Study Example – Hybrid Offload Load Balancer
Consider a scenario where a hybrid NIC-offloading load balancer is employed. This system capitalizes on dedicated hardware to process TCP/IP traffic directly on the NIC, bypassing the CPU for routine tasks. Observations from field implementations indicate that such systems can achieve up to a 50% increase in throughput while significantly reducing CPU utilization. The load balancer in this case not only manages incoming network traffic more efficiently but also demonstrates lower latency, thereby enhancing the overall user experience.
Embedded Systems and IoT Devices
In the realm of embedded systems and IoT (Internet of Things) devices, optimizing resources is critical. Many of these devices operate with limited processing power and memory resources. Offloading TCP/IP operations to specialized hardware like those provided by WIZnet significantly simplifies the connectivity process in these systems. By handling network tasks in dedicated hardware, embedded devices avoid overloading their main processors, leading to enhanced reliability in network communications.
High-Speed Trading and Financial Services
Financial and trading systems operate in environments where every microsecond counts. In these scenarios, network latency can have profound financial implications. TOEs, by reducing processing delays, improve the rapid transmission of data packets, thereby ensuring that trading systems maintain a competitive edge. In addition to performance gains, these systems benefit from increased reliability and lower error rates due to the efficient offloading of protocol management.
Comparative Analysis Table
The table below provides a comparative analysis of TCP/IP offloading benefits, challenges, and implementations observed in various case studies:
| Aspect | Description | Case Study Example |
|---|---|---|
| CPU Utilization | Reduction in processing load by offloading TCP/IP tasks to dedicated hardware | Hybrid NIC-offloading load balancer showing up to 50% increased throughput |
| Network Throughput | Enhanced performance through faster packet processing and offloaded checksum computations | 10GbE TCP Offload Engine achieving maximum performance without host system bottlenecks |
| Latency | Decreased packet handling time leading to lower network latency | HL-TCP model delivering near-zero latency in high-speed network scenarios |
| Implementation Complexity | Cost and challenges related to encoding TCP protocols into hardware logic | FPGA-based TOEs balancing performance with design complexity |
| Scalability | Ability to support high-density network environments with minimal CPU overhead | Deployment in data centers managing large volumes of network traffic |
Emerging Trends and Future Directions
With burgeoning data demands and technological advancements, TCP/IP offloading hardware continues to evolve. Future innovations are expected to enhance integration capabilities, allowing seamless upgrades in response to emerging protocol standards and security challenges. Manufacturers are increasingly focusing on hybrid models that combine the reliability of hardware processing with the flexibility of embedded software. These models aim to strike a balance between high performance and adaptability, ensuring that network systems remain robust against evolving internet traffic complexities.
Innovative Technologies
The integration of Field-Programmable Gate Arrays (FPGAs) with TCP/IP offload engines represents a significant step in this evolution. FPGAs offer a reconfigurable platform that can adapt to changes in network protocols without the necessity to replace hardware completely. Moreover, developments in network processor units (NPUs) and the introduction of machine learning algorithms for dynamic packet processing stand to further optimize the performance of offloading hardware.
Standardization and Interoperability
As TCP/IP offloading technologies mature, industry standards are being established to ensure compatibility between different implementations. Standardization not only facilitates smoother integration of offloading devices with existing network infrastructures but also promotes interoperability among diverse systems. This is particularly important in global networks where compatibility issues can hinder the widespread adoption of advanced offloading solutions.
