Comprehensive Analysis of Thermodynamic Energy Requirements for Electrolysis Processes

Detailed calculations for CO₂ and H₂O splitting and syngas production

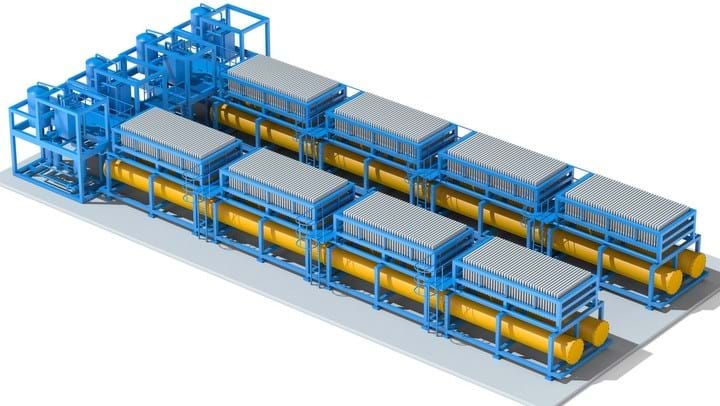

industrial electrolysis plant

Key Takeaways

  • Energy Efficiency: Splitting CO₂ to CO requires significantly less energy per kilogram compared to splitting H₂O to H₂.
  • Syngas Production: Combining CO and H₂ to produce syngas with a 2:1 ratio demands a balanced energy input for optimal synthesis.
  • Industrial Implications: Understanding these energy requirements is crucial for designing efficient industrial electrolysis systems and optimizing energy consumption.

1. Thermodynamic Energy Requirements for Splitting CO₂ to CO via Electrolysis

1.1. Chemical Reaction Overview

The electrolysis of carbon dioxide (CO₂) to carbon monoxide (CO) involves the following chemical reaction:

\( \text{CO}_2 \rightarrow \text{CO} + \frac{1}{2} \text{O}_2 \)

1.2. Gibbs Free Energy Change

The standard Gibbs free energy change (\( \Delta G^\circ \)) for this reaction under standard conditions (25°C, 1 atm) is approximately 257.2 kJ/mol CO. This value represents the minimum thermodynamic energy required to drive the reaction.

1.3. Conversion to Energy Units

1.3.1. Energy per Mole of CO

To convert the Gibbs free energy from kJ/mol to kWh/mol:

\[ \Delta G^\circ = 257.2 \, \text{kJ/mol} \times \frac{1 \, \text{kWh}}{3600 \, \text{kJ}} = 0.0714 \, \text{kWh/mol CO} \]

1.3.2. Energy per Kilogram of CO

Considering the molar mass of CO is 28.01 g/mol, we calculate the energy per kilogram:

\[ \text{Energy per kg} = \frac{0.0714 \, \text{kWh/mol}}{0.02801 \, \text{kg/mol}} = 2.55 \, \text{kWh/kg CO} \]

1.4. Summary of CO₂ to CO Electrolysis

  • Energy per mole of CO: 0.0714 kWh/mol CO
  • Energy per kilogram of CO: 2.55 kWh/kg CO

2. Thermodynamic Energy Requirements for Splitting H₂O to H₂ via Electrolysis

2.1. Chemical Reaction Overview

The electrolysis of water (H₂O) to produce hydrogen gas (H₂) involves the following reaction:

\( \text{H}_2\text{O} \rightarrow \text{H}_2 + \frac{1}{2} \text{O}_2 \)

2.2. Gibbs Free Energy Change

The standard Gibbs free energy change (\( \Delta G^\circ \)) for this reaction under standard conditions (25°C, 1 atm) is approximately 237.2 kJ/mol H₂.

2.3. Conversion to Energy Units

2.3.1. Energy per Mole of H₂

Converting Gibbs free energy from kJ/mol to kWh/mol:

\[ \Delta G^\circ = 237.2 \, \text{kJ/mol} \times \frac{1 \, \text{kWh}}{3600 \, \text{kJ}} = 0.0659 \, \text{kWh/mol H}_2 \]

2.3.2. Energy per Kilogram of H₂

With the molar mass of H₂ being 2.016 g/mol, we calculate the energy per kilogram:

\[ \text{Energy per kg} = \frac{0.0659 \, \text{kWh/mol}}{0.002016 \, \text{kg/mol}} = 32.69 \, \text{kWh/kg H}_2 \]

2.4. Summary of H₂O to H₂ Electrolysis

  • Energy per mole of H₂: 0.0659 kWh/mol H₂
  • Energy per kilogram of H₂: 32.69 kWh/kg H₂

3. Combined Thermodynamic Energy for Producing Syngas (2:1 H₂:CO Molar Ratio)

3.1. Syngas Composition and Requirements

Syngas, a mixture of hydrogen (H₂) and carbon monoxide (CO), is commonly produced with a molar ratio of 2:1 (H₂:CO) for various industrial applications. This composition requires:

  • 2 moles of H₂ (from water electrolysis)
  • 1 mole of CO (from CO₂ electrolysis)

3.2. Energy Calculations for Syngas Production

3.2.1. Energy for Hydrogen Production

The energy required to produce 2 moles of H₂:

\[ 2 \times 0.0659 \, \text{kWh/mol} = 0.1318 \, \text{kWh} \]

3.2.2. Energy for Carbon Monoxide Production

The energy required to produce 1 mole of CO:

\[ 1 \times 0.0714 \, \text{kWh/mol} = 0.0714 \, \text{kWh} \]

3.2.3. Total Energy for Syngas Production

Summing the energy requirements:

\[ 0.1318 \, \text{kWh} + 0.0714 \, \text{kWh} = 0.2032 \, \text{kWh} \]

3.2.4. Molar Mass of Syngas

Calculating the molar mass for the syngas mixture:

\[ 2 \times 2.016 \, \text{g/mol} + 28.01 \, \text{g/mol} = 32.042 \, \text{g/mol} \]

3.2.5. Energy per Kilogram of Syngas

Converting the total energy to per kilogram basis:

\[ \frac{0.2032 \, \text{kWh}}{0.032042 \, \text{kg}} = 6.34 \, \text{kWh/kg syngas} \]

3.3. Summary of Syngas Production

  • Energy for 2 moles of H₂: 0.1318 kWh
  • Energy for 1 mole of CO: 0.0714 kWh
  • Total energy for syngas: 0.2032 kWh
  • Energy per kilogram of syngas: 6.34 kWh/kg syngas

3.4. Comprehensive Overview

The following table provides a consolidated view of the thermodynamic energy requirements for each process:

Process Energy per Mole Energy per Kilogram
CO₂ to CO Electrolysis 0.0714 kWh/mol CO 2.55 kWh/kg CO
H₂O to H₂ Electrolysis 0.0659 kWh/mol H₂ 32.69 kWh/kg H₂
Syngas (2:1 H₂:CO) 0.2032 kWh/mol syngas 6.34 kWh/kg syngas

4. Implications and Considerations

4.1. Energy Efficiency Comparison

The energy required to produce CO via CO₂ electrolysis (2.55 kWh/kg) is substantially lower than that required for H₂ production via H₂O electrolysis (32.69 kWh/kg). This significant difference underscores the higher energy demands associated with hydrogen production, primarily due to the lower molecular weight of hydrogen gas.

4.2. Syngas Production Efficiency

Producing syngas with a 2:1 ratio of H₂ to CO at 6.34 kWh/kg syngas presents an efficient energy utilization pathway compared to producing hydrogen alone. Syngas serves as a versatile intermediate in various industrial processes, including the Fischer-Tropsch synthesis for liquid fuels and as a precursor for methanol production.

4.3. Industrial Applications

Understanding these thermodynamic energy requirements is crucial for optimizing industrial electrolysis systems. By balancing the energy inputs for CO and H₂ production, industries can achieve more efficient synthesis processes, reduce energy consumption, and lower operational costs.

4.4. Environmental Impact

Efficient electrolysis processes contribute to the reduction of greenhouse gas emissions by providing pathways to convert CO₂ into valuable chemicals like CO and H₂, which can be used in various applications, including the synthesis of more complex hydrocarbons. This conversion aligns with global efforts to mitigate climate change by recycling CO₂ emissions into economically viable products.

4.5. Technological Advancements

Advancements in electrolysis technologies, such as the development of high-efficiency catalysts and improved reactor designs, hold the potential to further reduce the energy requirements for these splitting processes. Innovations in renewable energy integration for powering electrolysis can also enhance the sustainability and economic viability of these processes.


Conclusion

The thermodynamic energy calculations for splitting CO₂ to CO and H₂O to H₂ via electrolysis reveal significant differences in energy demands. Producing CO is notably more energy-efficient on a per kilogram basis compared to hydrogen production. However, the combined production of syngas with a 2:1 molar ratio of H₂ to CO offers a balanced and efficient energy pathway suitable for various industrial applications. These insights are pivotal for designing optimized electrolysis systems that balance energy consumption, economic feasibility, and environmental sustainability.
