Understanding Trivial Instructions in HW/SW Codesign Using SystemC
A detailed exploration and example for simple operations in SystemC
Key Highlights
- Definition: A trivial instruction in HW/SW codesign using SystemC is a basic operation that demonstrates fundamental processing without incurring high complexity.
- Purpose: These instructions are often used for educational purposes and initial functional verification in simulation environments.
- Example: Trivial instructions include operations like simple arithmetic (e.g., addition) or basic counter operations that illustrate hardware behavior in a software-like simulation.
Introduction to Trivial Instructions
In the realm of hardware/software (HW/SW) codesign, especially using SystemC—a library built upon C++ designed for system-level modeling—designers often begin with simple, fundamental operations known as "trivial instructions." These instructions are not part of a standardized set, but rather they refer to minimum complexity operations that help in understanding and verifying the behavior of a simulated design.
Trivial instructions typically involve very basic operations such as data movement, simple arithmetic, or control flow actions. They serve two primary purposes:
- Illustrative Purposes: They help educators, students, and novice designers grasp the underlying concepts of processor design, instruction flow, and HW/SW interaction.
- Verification: They are employed in simulation environments to verify that the system's basic operations execute as expected before moving towards more complex designs.
In many simulation scenarios, a trivial instruction might be a no-operation (NOP), a simple arithmetic addition, or a basic counter update. The emphasis is on ensuring that the computational elements respond correctly to input signals and that the flow of control in the simulation behaves predictably.
Trivial Instruction Defined and Its Role
Although the phrase “trivial instruction” is not universally defined in the literature of HW/SW codesign using SystemC, it has come to represent any operation that is straightforward in terms of computational overhead and control flow. Typically the instructions classified under this term do not entail complex branching, looping, or data manipulation. Instead, they focus on one or two basic arithmetic or data transfer operations.
Consider, for instance, a trivial instruction that performs a simple addition of two numbers. This operation is elementary in nature and ensures that basic functionalities like reading input values, performing arithmetic operations, and writing outputs are correctly implemented in the simulation environment.
Role in HW/SW Codesign
HW/SW codesign integrates both hardware and software aspects of system design into a unified process. SystemC provides a platform where these integration efforts are made more coherent. Trivial instructions, though simple, are important in verifying:
- The correct instantiation of modules and components.
- The proper synchronization with clock signals and other temporal events.
- The integrity of data transfers between simulated hardware registers and memory elements.
Simplicity in initial module testing allows engineers to isolate and debug individual components before layering on increased complexity.
Example 1: Simple Addition Operation
A common example of a trivial instruction in a SystemC module is a simple arithmetic operation, such as addition. Below is an example demonstrating how you might implement such an operation in SystemC:
Code Example: Addition of Two Numbers
// Include the SystemC header file
#include <systemc.h>
// Define a simple processor module
SC_MODULE(SimpleProcessor) {
sc_in<bool> clk; // Clock input
sc_in<bool> start; // Signal to start the operation
sc_in<sc_uint<8>> inA; // 8-bit input A
sc_in<sc_uint<8>> inB; // 8-bit input B
sc_out<sc_uint<8>> result; // 8-bit result output
// Process that performs the addition instruction
void process() {
while (true) {
wait(); // Wait for the next clock cycle
if (start.read() == true) {
result.write(inA.read() + inB.read());
}
}
}
// Constructor for the module
SC_CTOR(SimpleProcessor) {
SC_CTHREAD(process, clk.pos()); // Register the process for positive edge of clock
}
};
// Entry point for the simulation
int sc_main(int argc, char* argv[]) {
sc_signal<bool> clk; // Clock signal
sc_signal<bool> start; // Start signal for operation
sc_signal<sc_uint<8>> inA, inB; // 8-bit input signals
sc_signal<sc_uint<8>> result; // 8-bit output result
// Instantiate the processor module
SimpleProcessor processor("Processor");
processor.clk(clk);
processor.start(start);
processor.inA(inA);
processor.inB(inB);
processor.result(result);
// Initialize signals and start simulation for a short duration
sc_start(10, SC_NS);
return 0;
}
This example defines a module called "SimpleProcessor," where a trivial addition instruction is implemented. When the simulation is running, the module waits for the clock signal and, upon receiving a 'start' signal, carries out the simple addition of two 8-bit inputs.
Example 2: Basic Counter Implementation
Another trivial operation in HW/SW codesign is the implementation of a counter. Such a module is useful for demonstrating the fundamental concept of sequential logic in hardware design.
Code Example: Simple Counter Module
// Include the SystemC header
#include <systemc.h>
// Define a simple counter module
SC_MODULE(Counter) {
sc_in<bool> clk; // Clock input
sc_out<int> count_out; // Output signal for the count value
int count; // Internal variable for counter
// Process that increments the counter at every positive clock edge
void count_process() {
count++;
count_out.write(count);
}
// Module constructor: setting process sensitivity
SC_CTOR(Counter) : count(0) {
SC_METHOD(count_process);
sensitive << clk.pos(); // Trigger the process on the positive edge of the clock
}
};
// Main function for SystemC simulation
int sc_main(int argc, char* argv[]) {
sc_signal<bool> clk; // Clock signal
sc_signal<int> count_out; // Signal to display the counter output
// Instantiate the Counter module
Counter counter_module("Counter");
counter_module.clk(clk);
counter_module.count_out(count_out);
// Run the simulation over a specified time duration
sc_start(10, SC_NS);
return 0;
}
Here, the "Counter" module is designed to increment an internal variable each time a positive clock edge is detected. This operation is trivial by nature and provides a clear example of sequential logic, which is paramount during the initial stages of system and module verification in a codesign environment.
Comparative Overview of Trivial Instructions
To better understand the role and capabilities of trivial instructions in SystemC, it is helpful to compare the types of operations commonly implemented as trivial instructions. The following table outlines a comparative overview of two typical examples:
| Example | Description | Key Components | Purpose |
|---|---|---|---|
| Simple Addition | A module that adds two 8-bit inputs | Clock signal, start signal, arithmetic operation, and result output port. | Demonstrates basic arithmetic operations and data movement. |
| Basic Counter | A module that increments a counter on each clock signal | Clock signal, counter variable, output port. | Illustrates sequential logic and synchronization with clock events. |
The above table summarizes the two examples discussed. Both examples qualify as trivial instructions because of their low complexity in control flow and computational output, yet they remain crucial in verifying that individual hardware components function correctly before integrating them into a more extensive system.
Further Discussion on HW/SW Codesign Using SystemC
Advantages of Using Trivial Instructions
When initiating HW/SW codesign projects with SystemC, trivial instructions offer several advantages:
- Ease of Debugging: With minimal processing complexity, designers can quickly isolate errors during simulation, streamlining the debugging process.
- Educational Insights: Simple instructions help learners understand the fundamentals of processor design and the role of each component in a hardware setup.
- Modularity: Since trivial instructions are self-contained, they are useful for verifying individual components before integrating them to form complex systems.
- Rapid Prototyping: In a simulation environment, employing trivial instructions allows for rapid development and iteration, ensuring foundational elements are robust.

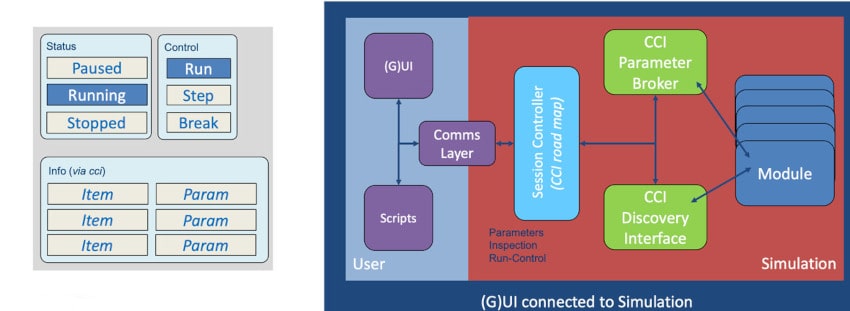

Application in Integrated Design Environments
SystemC bridges the gap between high-level design and low-level hardware implementation by enabling a mixed simulation of hardware and software components. Within such environments:
- Functional Verification: Trivial instructions help verify that simulation models are correctly synthesizing desired operations.
- Testing Communication: Simple data transfers and arithmetic operations validate the communication paths between modules in a system.
- Incremental Development: By starting with trivial instructions, designers can gradually incorporate additional functionalities with confidence in their baseline performance.
These benefits underline the importance of starting with small, manageable instructions that can be rigorously tested and then scaled up to more complex operations.
