Unlocking 3D Worlds: How Vanishing Points and Masks Reconstruct Cuboids from 2D Images

Understanding how we perceive and reconstruct three-dimensional objects from two-dimensional images is a cornerstone of computer vision and art. This exploration focuses on cuboid-shaped objects, their relationship with vanishing points, and the process of 3D reconstruction using 2D masks and image segmentation.

Key Insights: The Building Blocks of 3D Perception

Vanishing Points Dictate Orientation: 3D objects shaped like cuboids, when viewed in perspective, have sets of parallel edges that appear to converge towards up to three distinct vanishing points in a 2D image. These points are crucial for understanding the object's orientation in 3D space.
Reconstruction is Feasible: A 3D cuboid can indeed be reconstructed from a 2D object mask (which defines its silhouette) and the three corresponding vanishing points. This process leverages geometric constraints imposed by perspective projection.
Segmentation Provides Boundaries, Not VP Organization: Image segmentation identifies and isolates objects or regions within an image. While the segmented boundaries of a cuboid will reflect its perspective-distorted shape, the segmentation process itself doesn't inherently organize segments according to vanishing points; rather, VPs can be used to interpret these segments for 3D understanding.

The Dance of Lines: Cuboids and Vanishing Points

Perspective's Guiding Hand

When we look at the world around us or a photograph, our brains (and computer algorithms) interpret depth and form from a flat image. A fundamental concept in this interpretation is the **vanishing point (VP)**. In perspective drawing and imaging, a vanishing point is a point on the image plane where parallel lines in three-dimensional space appear to converge.

For an object shaped like a cuboid (a rectangular prism, like a box or a building), which has three sets of mutually orthogonal parallel edges (representing length, width, and height):

Each set of parallel edges, if not parallel to the image plane, will converge to its own vanishing point.
Thus, a cuboid viewed obliquely can be associated with up to **three vanishing points**. This is often referred to as three-point perspective.
If one set of edges is parallel to the image plane, you'll have two vanishing points (two-point perspective). If two sets are parallel, you'll have one vanishing point (one-point perspective).

The orientation of the cuboid in 3D space directly influences the location of these vanishing points in the 2D image. Detecting these VPs is a critical first step in understanding the object's geometry and pose.

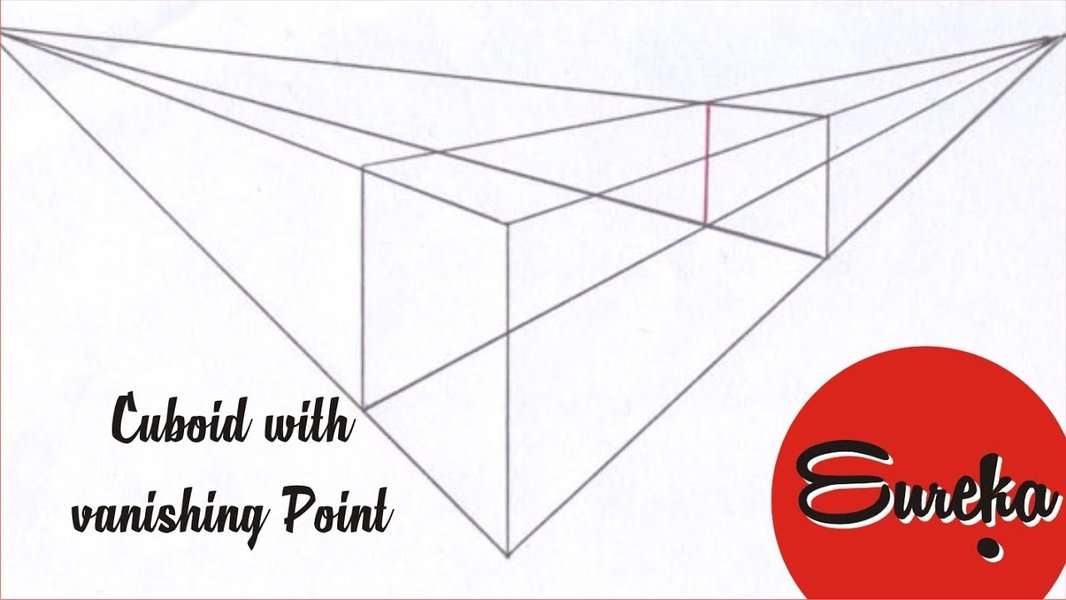

Drawing of a cuboid showing lines converging to vanishing points

A cuboid drawn in perspective, illustrating how parallel edges converge towards vanishing points.

The "Manhattan World" Assumption

In many urban scenes or indoor environments, objects and structures are often aligned with three mutually perpendicular directions. This is sometimes called the "Manhattan world" assumption. In such scenes, detecting the three orthogonal vanishing points can provide strong cues about the camera's orientation and the layout of the scene.

From Flat Mask to 3D Form: The Reconstruction Process

Leveraging 2D Information for 3D Understanding

Yes, it is theoretically and practically possible to reconstruct a 3D cuboid from a 2D object mask and its three associated vanishing points. Here's a conceptual breakdown of how this works:

2D Object Mask: This is a binary image (or a set of contours) that precisely outlines the cuboid object in the 2D image. It tells you where the object is located and its 2D shape. This mask can be obtained through image segmentation techniques.
Vanishing Points (VPs): As discussed, the three VPs provide crucial information about the 3D orientation of the cuboid's principal axes. They tell you how the object is oriented in 3D space relative to the viewer.
Geometric Constraints: The edges of the 2D mask, particularly those corresponding to the projected edges of the cuboid, must be consistent with lines that pass through the object's corners and converge at the respective VPs.
3D Model Fitting: Algorithms can then fit an ideal 3D cuboid model to this 2D data. This involves finding the 3D dimensions (length, width, height) and 3D position of the cuboid such that its projection onto the 2D image plane optimally matches the given mask, with its edges aligning with the VPs. Camera calibration parameters (like focal length) are also important for accurate reconstruction. If the camera intrinsics are unknown, VPs can help in their estimation.

This process essentially reverses the perspective projection. By knowing the 2D footprint (the mask) and the directions of convergence (the VPs), one can infer the 3D structure that would produce such a projection.

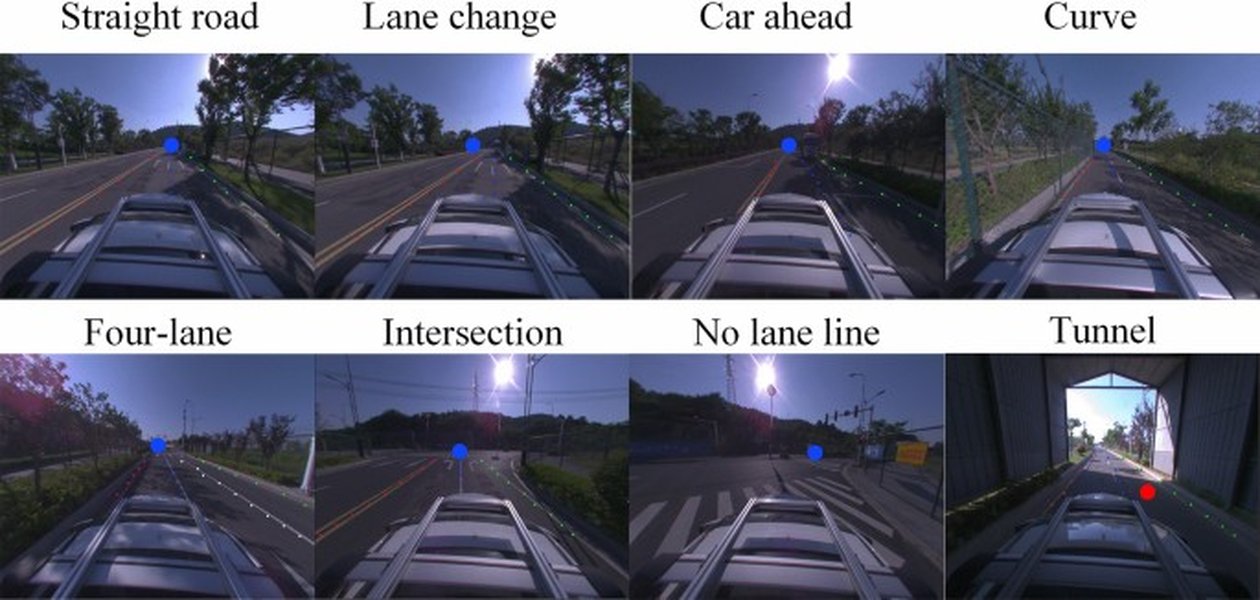

Illustration of vanishing point estimation in a street scene

Visual representation of vanishing point estimation, crucial for 3D reconstruction.

Segmentation's Role: Defining the Object in 2D

Isolating the Cuboid in a Complex Scene

Image segmentation is the process of partitioning a digital image into multiple segments (sets of pixels, also known as image objects). The goal of segmentation is to simplify or change the representation of an image into something more meaningful and easier to analyze. In the context of 3D reconstruction of a cuboid:

Object Segmentation: Techniques like instance segmentation (e.g., using Mask R-CNN) can identify and delineate the specific cuboid object of interest from the background and other objects in the image. This provides the 2D object mask mentioned earlier.
No Intrinsic VP Organization: Segmentation algorithms primarily operate based on pixel properties like color, texture, intensity, and spatial coherence. They do not inherently organize the resulting segments according to vanishing points. The segments (e.g., the mask of the cuboid) are simply regions of pixels.
Implicit Reflection of Perspective: However, the boundaries of the segmented cuboid will naturally reflect the perspective distortion present in the image. If the object is a cuboid, its segmented edges will appear to converge towards the VPs, even though the segmentation algorithm itself wasn't explicitly using VPs as an organizational principle.
VP-Guided Segmentation: In some advanced scenarios, vanishing point information can be used to guide or refine the segmentation process, especially for segmenting planar faces of objects or structured environments like roads and buildings. This can help in separating different faces of the cuboid if they have distinct appearances.

So, while segmentation provides the crucial 2D outline, the understanding of 3D orientation comes from the subsequent analysis involving vanishing points. The segments are a result of 2D image properties, but their shapes, when representing a cuboid, are governed by perspective geometry, which is linked to VPs.

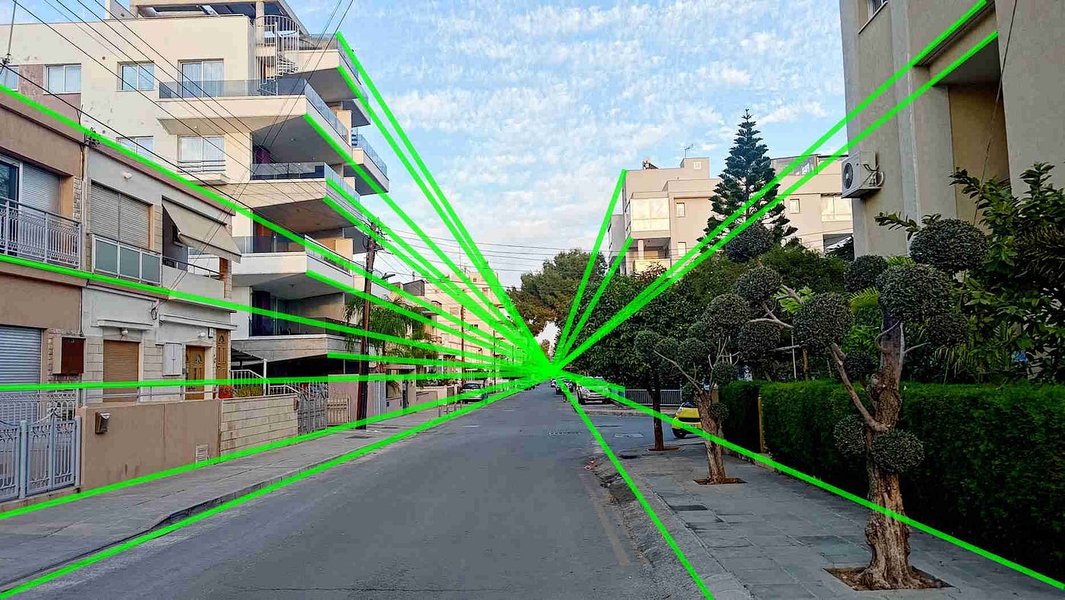

Image showing line segment detection which can be used for VP estimation and relates to object boundaries

Line segments detected in an image. Such lines, forming the boundaries of segmented objects, converge towards vanishing points.

Visualizing the Interconnections: A Mindmap

Mapping the Concepts from 3D to 2D and Back

This mindmap illustrates the relationships between a 3D cuboid, its 2D image representation, the key elements used for understanding its geometry (vanishing points and masks), and the process of 3D reconstruction. Image segmentation plays a crucial role in obtaining the 2D mask.

mindmap root["3D Cuboid Reconstruction"] id1["Real-World 3D Cuboid"] id1a["3 Sets of Parallel Edges"] id1b["Defined 3D Dimensions"] id2["Perspective Projection"] id2a["Camera Model & Viewpoint"] id3["2D Image Representation"] id3a["Object Mask (Silhouette)"] id3aa["Obtained via Image Segmentation"] id3aaa["Pixel-based Grouping (Color, Texture)"] id3aab["Boundary reflects perspective"] id3b["Vanishing Points (VPs)"] id3ba["Convergence of Projected Parallel Lines"] id3bb["Up to 3 VPs for a Cuboid"] id3bc["Indicate 3D Orientation"] id3c["Apparent Distortion of Edges & Faces"] id4["3D Reconstruction Process"] id4a["Input: 2D Mask & VPs"] id4b["Geometric Constraints"] id4c["Camera Calibration (Optional but helpful)"] id4d["Algorithm to Estimate 3D Pose & Dimensions"] id5["Result: Estimated 3D Cuboid Model"]

The mindmap highlights how information flows from the physical 3D object to its 2D projection, from which key features are extracted (mask and VPs). These features then serve as inputs for algorithms that aim to reconstruct the original 3D form.

Factors Influencing Reconstruction Success

A Balancing Act of Information and Algorithms

The success of reconstructing a 3D cuboid from a 2D image is not guaranteed and depends on several factors. This radar chart visualizes the relative importance of some key elements. A higher value indicates greater impact on achieving accurate reconstruction. These are qualitative assessments.

As shown, highly accurate vanishing points and a precise 2D mask are paramount. The absence of occlusion (the object not being hidden by other objects) is also critical. While sophisticated algorithms and known camera parameters help significantly, even with simpler approaches, good input data (VPs, mask, resolution) can yield reasonable results. Object texture aids in feature detection, which can support VP estimation and segmentation.

Understanding Vanishing Points in Computer Vision

A Deeper Dive into Perspective Cues

Vanishing points are not just an artistic tool; they are a powerful concept in computer vision for inferring 3D structure from 2D images. This video provides a clear explanation of vanishing points and their significance in how machines "see" and interpret scenes, which is directly relevant to reconstructing objects like cuboids.

The video elaborates on how parallel lines in the 3D world converge at vanishing points in the 2D image plane. It explains different types of perspective (one-point, two-point, three-point) and how these relate to the orientation of objects. For cuboids, understanding these concepts is key to identifying the VPs that define their structure in the image, which in turn enables their 3D reconstruction.

Key Components and Their Roles in 3D Cuboid Reconstruction

The following table summarizes the primary function of each component discussed in the context of reconstructing a 3D cuboid from a 2D image:

Component	Primary Role in Reconstruction	How it's Obtained/Used
Vanishing Points (VPs)	Define the 3D orientation of the cuboid's principal axes.	Detected from converging lines in the image, often corresponding to the cuboid's edges. Up to three VPs define the directions of the cuboid's length, width, and height in 3D space.
2D Object Mask	Provides the 2D silhouette or boundary of the cuboid in the image.	Typically generated by image segmentation techniques (e.g., Mask R-CNN). It delineates the pixels belonging to the object.
Image Segmentation	Process of isolating the object of interest (the cuboid) from the background or other objects.	Algorithms analyze pixel properties (color, texture, etc.) to create segments. The output for a specific object is its 2D mask.
Camera Parameters	Define how the 3D world is projected onto the 2D image plane (e.g., focal length, principal point).	Can be known beforehand (calibrated camera) or estimated (sometimes with the help of VPs). Crucial for metrically accurate reconstruction.
Reconstruction Algorithm	Integrates all information to estimate the 3D pose and dimensions of the cuboid.	Uses geometric constraints (VPs, mask boundaries, camera model) to fit a 3D cuboid model to the 2D evidence.

Each component plays a distinct yet interconnected role. Accurate vanishing points and a high-quality mask are fundamental inputs, while the algorithm and camera parameters determine the fidelity of the final 3D model.
