Building a Distributed, Secure, and Centrally Maintained Web Functionality

An in-depth look at architecture design, embedding strategies, and API security methods

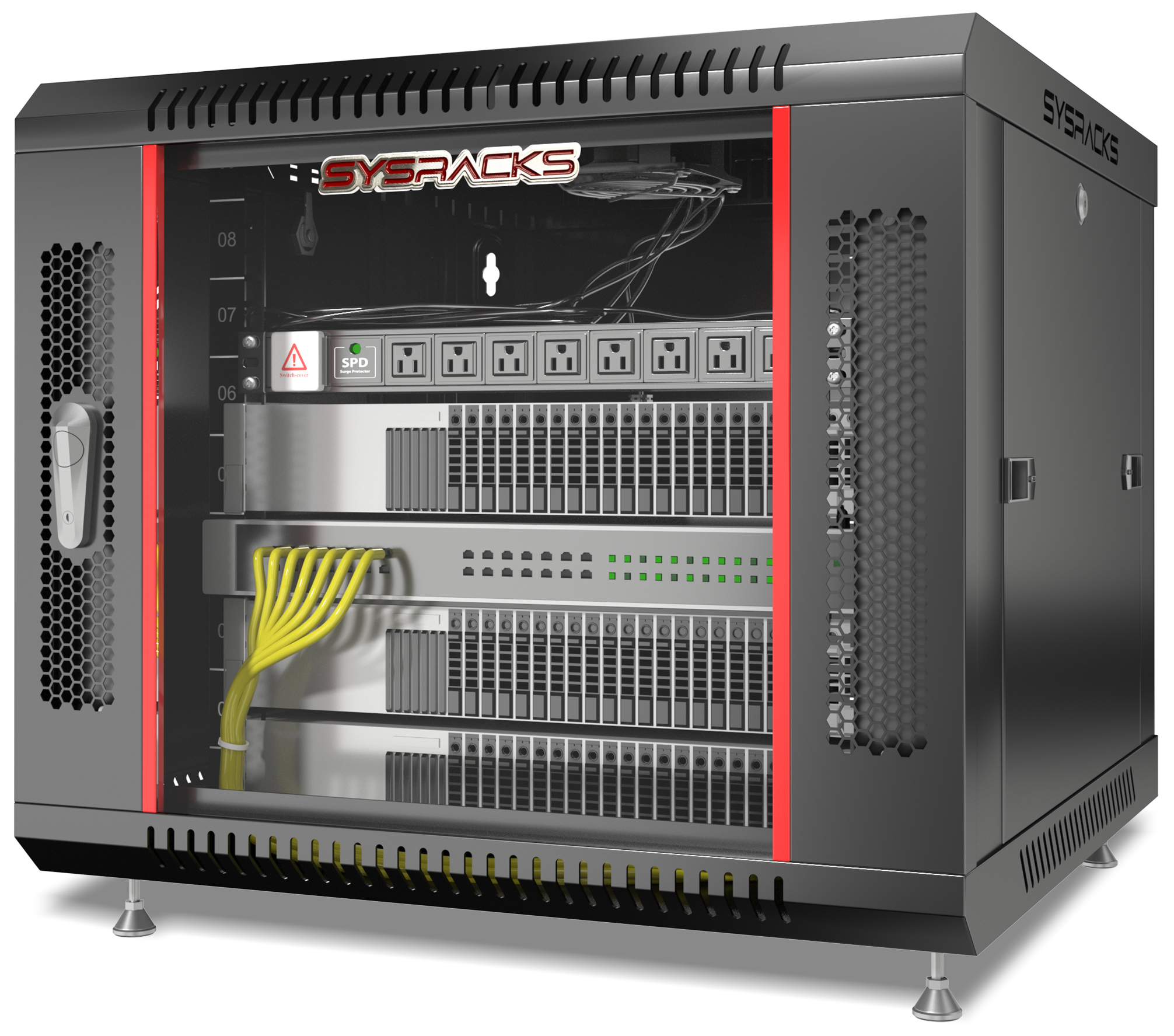

modern server racks and digital network connections

Key Insights

Central Codebase & Microservices: Maintain functionality in one secure location while serving multiple websites.
Embedding Strategies: Utilize iframes or API-driven JavaScript integration to display content across various domains.
Robust API Security: Implement OAuth 2.0, JWT, and API Gateway techniques to manage who calls the API and block unwanted usage.

Overview

Creating a web functionality that can be embedded across various websites while ensuring centralized maintenance and API security is a common goal for modern developers. The primary challenge is to balance easy and consistent distribution of the functionality with a robust strategy for managing and securing your API. In other words, you want to deploy a single version of your code that many sites can access while knowing exactly who is calling your API and being able to take action against unauthorized use.

Architectural Components

Embedding Mechanisms

Using Iframes

The simplest method to embed your functionality is through iframes. When you embed functionality via an iframe, you simply load your centrally hosted page within another website by using HTML's <iframe> tag. This not only ensures that the latest update is always available but also maintains a clean separation between the host and your functionality. An example usage is:


<iframe src="https://yourdomain.com/functionality" width="100%" height="500"></iframe>

However, modern security practices such as the X-Frame-Options header may sometimes complicate iframe embedding. Therefore, it is important to consider website policies and adjust server settings accordingly.

API Driven Integration

Alternatively, you might choose to provide an API endpoint that delivers the required HTML, CSS, and JavaScript for integration. With this method, third-party websites actively fetch the complete resources required to render the functionality on their pages. This approach typically involves a higher setup cost on the consuming website's part, but provides more flexibility in terms of integration and seamless adoption of your updates.

Ensuring API Security

Since the functionality communicates with your server's API, ensuring that this API is secure is paramount. Your API must authenticate requests, track which entity is making the request, and take action against unwanted or malicious use.

Authentication Methods

API Keys

API Keys are a foundational mechanism where each client (i.e., each website embedding your functionality) is issued a unique token. Every request to your API includes this token in the HTTP header. While API keys are simple to implement, they are best used only in low-risk environments or in combination with more secure protocols because they are static and might be intercepted if proper transport layer security is not implemented.

OAuth 2.0 with JWT

For a more robust and secure architecture, OAuth 2.0 teamed with JSON Web Tokens (JWT) is advised. Using OAuth 2.0 ensures that third-party websites can access your API without needing to share sensitive credentials. JWTs are used to encapsulate metadata that includes client details and token validity. They allow you to implement granular access control as well as track which API consumers are making requests.

The OAuth flow typically involves these steps:

Register each third-party client (website) and assign unique credentials.
Redirect users as necessary to an authorization server that validates their access.
Upon successful authentication, issue an access token (JWT) with an expiration.
The client includes this token with every API call.
The API server validates the token, logs the client identity, and processes the request.

In addition, employing short-lived tokens with refresh mechanisms and using PKCE (Proof Key for Code Exchange) in the OAuth process further fortifies your API security by mitigating interception risks.

API Gateway and Microservices

A key architectural decision is to strike a balance between centralized code management and secure API access. The following components are central to this design:

Microservice for Shared Functionality: Build a microservice that encapsulates the core functionality of your website. This component is responsible for processing business logic and must be maintained in one location. It communicates with your API, which is secured as described.
API Gateway: An API Gateway is designed to manage all incoming API requests. It serves as a facade that can handle authentication (by verifying OAuth tokens or API keys), perform rate limiting to block abuse, and log API calls for further analysis. Platforms like NGINX, AWS API Gateway, or Azure API Management can be configured to handle these responsibilities.

API Gateway Benefits

The API Gateway acts as an intermediary between your microservice and the end-user requests. Its primary advantages include:

Feature	Benefits
Authentication & Token Validation	Ensures that only valid and authorized requests reach the backend
Rate Limiting	Prevents abuse by limiting the number of requests from any given client
Logging & Monitoring	Helps track which websites called your API and detect suspicious activity
IP Whitelisting/Blacklisting	Adds an additional layer of security to restrict access from unauthorized IP ranges

An illustrative equation representing rate limiting might look like:

$$ R_{limit} = \frac{N}{T_{window}} $$

Here, R_limit represents the maximum allowed requests per time window T_window (e.g., 100 requests per minute), and N is the allowed number of requests. Rate limiting can be dynamically adjusted based on detected usage patterns.

Implementation Examples

Example 1: Iframe Embedding with API Key Authentication

For a basic implementation, you may prefer iframes paired with API key validation. In this scenario, websites embed your hosted functionality using an iframe, and the JavaScript running within it communicates with your API securely by including an API key.

Step 1: Embed the functionality:


<iframe src="https://yourdomain.com/yourfunctionality?apikey=YOUR_API_KEY" width="100%" height="500"></iframe>

Step 2: Server-side API key validation:


// Example in Node.js using Express
const express = require('express');
const app = express();

app.use(express.json());

const validApiKeys = ['YOUR_API_KEY'];

app.post('/api/data', (req, res) => {
    const apiKey = req.headers['authorization'];
    if (!validApiKeys.includes(apiKey)) {
        return res.status(401).json({ error: 'Unauthorized access' });
    }
    // Process the API request securely
    res.json({ data: "Secure data from server" });
});

app.listen(3000, () => console.log('Server running on port 3000'));

Example 2: OAuth 2.0 with JWT Using an API Gateway

For enhanced security, especially when sensitive information is involved, combine OAuth 2.0 with JWTs. In this illustrated flow, websites must first obtain a token from your authorization server before calling your API.

Step 1: Client obtains an access token by authenticating via OAuth 2.0. This step usually involves redirecting the user to your login page and then receiving an authorization code, which is exchanged for a JWT:


// Simplified pseudocode for token generation
function authenticateUser(request, response) {
    // Validate the user's credentials and generate an auth code
    const authCode = generateAuthCode();
    // Client exchanges auth code for access token
    const accessToken = jwt.sign({ user: request.user, scopes: ['read', 'write'] }, 'secret', { expiresIn: '1h' });
    response.json({ accessToken: accessToken });
}

Step 2: Using the API Gateway to validate tokens and enforce rate limits:


// Express middleware for JWT validation
const jwt = require('jsonwebtoken');

function authenticateJWT(req, res, next) {
    const token = req.headers['authorization'];
    if (!token) {
        return res.status(401).send('Access denied. No token provided.');
    }
    jwt.verify(token, 'secret', (err, decoded) => {
        if (err) {
            return res.status(400).send('Invalid token.');
        }
        req.user = decoded;
        next();
    });
}

app.post('/api/secure-data', authenticateJWT, (req, res) => {
    // Logic to process secure API request
    res.send('Secure data processed with verified JWT.');
});

Example 3: Microservices Architecture with API Gateway

By implementing a microservices architecture, you can isolate the shared functionality into an independent service that communicates with your backend API via an API Gateway. This architectural approach provides additional scalability and fault tolerance.

The API Gateway not only handles authentication (using either API keys or OAuth 2.0 with JWT) but also manages rate limiting, logging, and monitoring.


// Simplified Express example with an API Gateway pattern
const express = require('express');
const app = express();

// API Gateway middleware function
function apiGateway(req, res, next) {
    // Add general functions like logging and rate limiting here
    console.log(`API call from: ${req.headers.host}`);
    // Implement rate limiting logic as needed
    next();
}

app.use(apiGateway);

// Microservice endpoint serving shared functionality
app.get('/shared-functionality', (req, res) => {
    res.send('This content is served centrally and maintained in one location.');
});

app.listen(3000, () => console.log('API Gateway running on port 3000'));

Best Practices & Additional Security Measures

Secure Communication

Regardless of the chosen embedding strategy or authentication method, all communications between the client, your API, and backend services should occur over HTTPS/TLS to prevent data interception and man-in-the-middle attacks.

Logging and Monitoring

Detailed logging of API requests is critical. This includes not only successful calls but also any failed attempts or suspicious activities. Comprehensive logs allow you to identify usage patterns, detect abuse, and quickly disable API keys or tokens if necessary.

Rate Limiting

Implement rate limiting both at the API Gateway and on the backend microservices to mitigate the risk of overuse or denial-of-service attacks. Rate limiting is generally calculated using:

$$ R_{limit} = \frac{N}{T_{window}} $$

where R_limit is the maximum allowed number of requests in a time window T_window. Adjust these parameters based on typical load and observed usage patterns.

Integration Flow Diagram

Below is a high-level flow diagram representing the entire system:

Component	Role
Embedded Client (Iframe or JS Integration)	Displays interface and communicates with the API
API Gateway	Manages authentication, rate limiting, and logging
Shared Functionality Microservice	Hosts centrally maintained code that processes business logic
Authorization Server	Issues OAuth 2.0 tokens and validates client credentials
Backend API	Processes secure requests based on validated tokens/API keys

Conclusion

In summary, to build a website functionality that is centrally maintained yet available across multiple websites, you should adopt an architecture that leverages either iframe embedding or API-based integration. The core functionality should reside in a single microservice, ensuring consistency and ease of updates. Secure communication with your API is paramount, and using mechanisms such as OAuth 2.0 with JWT or API keys, along with an API Gateway, offers a robust solution. This approach not only supports the central codebase strategy but also ensures that detailed logging, rate limiting, and secure token management allow you to identify, monitor, and block unwanted API usage. Maintaining HTTPS communication, logging all accesses, and employing best practices in API security collectively contribute to a reliable, scalable, and secure deployment architecture.
