Unlocking the Physics of Levers: Calculating Force Changes with Position
Discover the precise force needed when you shift your leverage point on a bar, based on fundamental torque principles.
Key Insights at a Glance
- Constant Torque is Key: The rotational force (torque) needed to open the latch remains the same, regardless of where you apply your effort on the lever. This is because the latch's resistance doesn't change.
- Inverse Relationship: Applying force closer to the pivot point (fulcrum) means you'll need to exert significantly more force to achieve the same rotational effect. Shortening the lever arm reduces your mechanical advantage.
- Calculated Force: To open the latch by applying force at 38 cm from the pivot, approximately 63.7 Newtons (N) is required. This is a substantial increase from the 22 N needed when the force was applied at 110 cm.
You've asked an excellent question about how the force required to operate a lever changes when you alter the point of application. This is a common scenario in many mechanical systems, from simple door handles to complex machinery. We can determine the new force using the principle of moments, also known as torque.

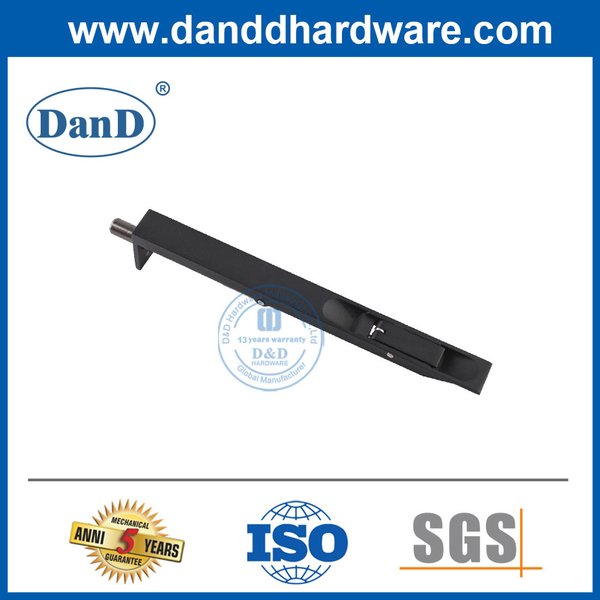

A typical lever mechanism, like this concealed door bolt, operates on the fundamental principle of torque.
The Governing Principle: Understanding Torque
At the heart of this problem lies the concept of torque (often called moment of force). Torque is the measure of the force that can cause an object to rotate about an axis or pivot point (fulcrum). It's what you generate when you use a wrench to turn a bolt or push a door open. The fundamental formula for torque, when the force is applied perpendicularly to the lever arm, is:
\[ \tau = F \times d \]Where:
- \( \tau \) (Greek letter tau) represents the torque, typically measured in Newton-meters (N·m) or Newton-centimeters (N·cm).
- \( F \) is the magnitude of the force applied, measured in Newtons (N).
- \( d \) is the lever arm – the perpendicular distance from the pivot point to the line of action of the force, measured in meters (m) or centimeters (cm).
For the latch to open, a specific amount of torque must be generated at the pivot. This required torque remains constant because the resistance offered by the latch mechanism itself doesn't change based on where you push the lever.
Calculating the Required Force: A Step-by-Step Approach
We'll use the principle that the torque required to open the latch is constant. Let's denote the initial scenario with subscript 1 and the new scenario with subscript 2.
Scenario 1: The Initial Setup
You're initially applying a force at what's described as "the end of the bar" to operate the catch located 110 cm from the pivot. We interpret this to mean your initial effort is applied at this distance.
- Initial Force (\(F_1\)): 22 Newtons (N)
- Initial Distance from Pivot (\(d_1\)): 110 cm
The torque generated in this scenario (\(\tau_1\)) is:
\[ \tau_1 = F_1 \times d_1 = 22 \text{ N} \times 110 \text{ cm} = 2420 \text{ N} \cdot \text{cm} \]This value, 2420 N·cm, represents the specific torque required to overcome the latch's resistance and open it.
Scenario 2: Changing the Leverage Point
Now, you want to apply the force at a different point on the bar, closer to the pivot:
- New Distance from Pivot (\(d_2\)): 38 cm
- New Force (\(F_2\)): This is the unknown force we need to calculate.
To open the same latch, the torque generated in this new scenario (\(\tau_2\)) must be equal to the torque from the first scenario (\(\tau_1\)). Therefore:
\[ \tau_2 = F_2 \times d_2 \]Since the torque required to open the latch is constant, \(\tau_1 = \tau_2\). This gives us the core equation for levers:
\[ F_1 \times d_1 = F_2 \times d_2 \]Calculating the New Force (\(F_2\))
We can rearrange the equation to solve for the unknown force, \(F_2\):
\[ F_2 = \frac{F_1 \times d_1}{d_2} \]Now, we plug in the known values:
\[ F_2 = \frac{22 \text{ N} \times 110 \text{ cm}}{38 \text{ cm}} \] \[ F_2 = \frac{2420 \text{ N} \cdot \text{cm}}{38 \text{ cm}} \]Notice that the units of centimeters (cm) in the numerator and denominator will cancel out, leaving the force in Newtons (N).
\[ F_2 \approx 63.6842105 \text{ N} \]Rounding to one decimal place for practical purposes (consistent with the input 22 N, which could be seen as 22.0 N), the force required at the 38 cm point is approximately 63.7 N.
This calculation clearly demonstrates that as you decrease the distance from the pivot point (the lever arm), the force you need to apply increases significantly to achieve the same torque.
Visualizing Lever Mechanics
To better understand the relationship between force, distance, and mechanical advantage in lever systems, visual aids can be very helpful. Below, we explore these concepts through a comparative table, a conceptual radar chart, and a mindmap.
Comparative Analysis of Lever Scenarios
The table below summarizes the key parameters for both force application points. It highlights how the required force changes while the torque needed to open the latch remains constant.
| Parameter | Initial Scenario (Force at 110 cm) | New Scenario (Force at 38 cm) |
|---|---|---|
| Distance from Pivot (Effort Arm) | 110 cm | 38 cm |
| Applied Force (Effort) | 22 N | ~63.7 N |
| Resulting Torque (Moment) | 2420 N·cm | 2420 N·cm |
Conceptual Radar Chart: Lever Performance Factors
This radar chart conceptually illustrates how different factors compare between the two scenarios. A higher value on "Effort Arm Length" and "Mechanical Advantage" is generally better (requiring less effort), while a lower value for "Required Force" is desirable. The "Operational Ease" is a qualitative measure combining these aspects.
Note: The radar chart values are illustrative, scaled 2-10 for comparison. "Required Force" is shown with higher values indicating more force, hence less ideal. "Mechanical Advantage Factor" and "Operational Ease" are conceptual scores based on the physical parameters.
Mindmap of Lever Mechanics
The following mindmap outlines the core concepts involved in understanding how levers work, including the relationship between force, distance, torque, and mechanical advantage.
(\( \tau = F \times d \))"] id1c["Unit: Newton-meter (N·m) or Newton-centimeter (N·cm)"] id1d["Constant for a given task (e.g., opening a latch)"] id2["Components"] id2a["Force (Effort)"] id2aa["Push or pull applied"] id2ab["Unit: Newton (N)"] id2b["Lever Arm (Effort Arm)"] id2ba["Perpendicular distance from pivot to force line"] id2bb["Unit: meter (m) or centimeter (cm)"] id2c["Pivot (Fulcrum)"] id2ca["Fixed point around which the lever rotates"] id2d["Load (Resistance)"] id2da["Force overcome by the lever (e.g., latch mechanism)"] id3["Principle of Levers"] id3a["Equilibrium: Effort Torque = Load Torque"] id3b["\(F_{effort} \times d_{effort} = F_{load} \times d_{load}\)"] id3c["For constant load torque: \(F_1 d_1 = F_2 d_2\)"] id4["Mechanical Advantage (MA)"] id4a["Ratio of Load to Effort OR Effort Arm to Load Arm"] id4b["MA > 1: Force amplification (less effort for more load)"] id4c["MA < 1: Speed/distance amplification (more effort)"] id4d["MA = 1: Change of direction, no force/speed change"] id5["Application in User Query"] id5a["Initial: 22N at 110cm"] id5b["New: X N at 38cm"] id5c["Result: Force increases as lever arm decreases"]
This mindmap illustrates how the different components and principles interact. In your specific query, changing the effort arm directly impacts the effort force required, as the torque to overcome the latch remains constant.
Further Explanation: The Role of Mechanical Advantage
Mechanical Advantage (MA) is a measure of how much a simple machine multiplies the effort force. For a lever, it can be expressed as the ratio of the output force (load) to the input force (effort), or as the ratio of the effort arm to the load arm.
In your scenario, the "load" is the resistance of the latch, and the "load arm" is the effective distance from the pivot to where the latch mechanism acts. While we don't know the exact load force or load arm of the latch, we know the torque required to overcome it (2420 N·cm).
When you apply force at \(d_1 = 110 \text{ cm}\), your effort arm is longer. When you move to \(d_2 = 38 \text{ cm}\), your effort arm becomes shorter. If we consider the effective mechanical advantage related to your effort:
- A longer effort arm (110 cm) gives you a greater mechanical advantage in applying force, meaning less input force (22 N) is needed to produce the required torque.
- A shorter effort arm (38 cm) reduces your mechanical advantage, meaning more input force (63.7 N) is needed for the same torque.
This inverse relationship is fundamental: to maintain a constant torque (\(\tau = F \times d\)), if \(d\) decreases, \(F\) must increase, and vice-versa.
This video explains the basics of levers and mechanical advantage, providing a good foundation for understanding the principles at play in your query.
The embedded video, "Simple Machines - The Lever," offers a clear visual and conceptual explanation of how levers function, including the concept of mechanical advantage and how force multiplication is achieved. This directly relates to your query by illustrating why changing the point of force application alters the required effort.
Frequently Asked Questions (FAQ)
What exactly is torque?
Torque, also known as moment of force, is a measure of how much a force acting on an object causes that object to rotate. It's calculated by multiplying the force by the perpendicular distance from the pivot point (fulcrum) to the line of action of the force (\( \tau = F \times d \)). Think of it as the "twisting power" of a force.
Why does the force increase when applied closer to the pivot?
The force increases because the torque required to open the latch remains constant. Since torque is the product of force and distance (\( \tau = F \times d \)), if you decrease the distance (\(d\)) from the pivot where you apply the force, the force (\(F\)) must increase proportionally to maintain the same torque value. You are essentially reducing your leverage or mechanical advantage.
Does the type of lever (e.g., Class 1, 2, or 3) affect this calculation?
The fundamental principle of moments (\(F_1 d_1 = F_2 d_2\) for the same output torque) applies universally to all types of levers when comparing different effort applications for the same task. The classification of levers (Class 1, 2, or 3) helps describe the relative positions of the fulcrum, effort, and load, which in turn determines the inherent mechanical advantage characteristics of that specific lever configuration. However, the core relationship between force, distance, and torque remains the same for achieving a specific rotational effect.
What if the force is not applied perpendicularly to the lever arm?
If the force is not applied perpendicularly, the calculation for torque becomes \( \tau = F \times d \times \sin(\theta) \), where \( \theta \) is the angle between the force vector and the lever arm vector. Only the component of the force that is perpendicular to the lever arm contributes to the torque. For simplicity, lever problems like this one often assume the force is applied perpendicularly, maximizing its effectiveness for a given magnitude.
