Creating a Free Space Light Wave Digital Code Language
Innovating Optical Communication Through Digital Signal Design
Key Highlights
- Modulation Techniques: Explore on-off keying, amplitude/phase modulation, and more sophisticated encoding methods.
- Error Correction: Integrate robust coding schemes to counteract atmospheric disturbances and signal noise.
- System Integration and Tools: Leverage hardware platforms, simulation software, and iterative testing to bring the code language to life.
Introduction
Digital communication using light in free space—often referred to as free-space optical (FSO) communication—has gained increasing attention due to its high bandwidth capabilities and immunity to many electromagnetic interferences. Developing a digital code language for such systems involves harnessing the unique properties of light to encode information, creating robust protocols to ensure signal integrity, and integrating practical software and hardware implementations.
Fundamental Concepts
Understanding Free-Space Optical Communication

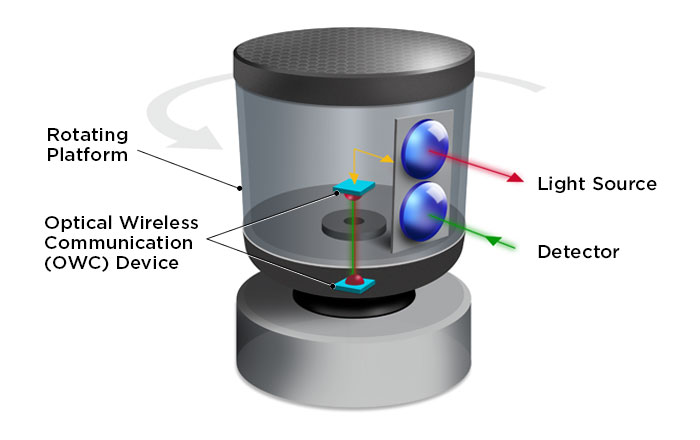

At its core, free-space optical (FSO) communication uses light waves—commonly generated by lasers or LEDs—to transmit data across open air or space. The medium involves minimal physical infrastructure like cables, relying instead on the atmosphere as the channel. However, FSO systems face challenges such as atmospheric turbulence, weather variations, and physical obstructions, which must be mitigated with smart encoding and error correction designs.
Digital Data Encoding on Light Waves
Digital encoding through light involves varying specific properties of the light wave. Key parameters include:
- Amplitude: Adjusting the strength or brightness of the light.
- Frequency: Varying the light wave’s frequency to represent data.
- Phase: Shifting the wave phase by a determined angle for encoding.
- Polarization: Changing the light’s polarization state.
These modulation techniques can be used either individually or in combination for creating a robust digital code language.
Designing the Digital Code Language
Modulation Techniques for Encoding Information
A critical first step in developing the digital code language is selecting the appropriate modulation technique. Various schemes offer different trade-offs in terms of simplicity, bandwidth efficiency, and resistance to interference:
Basic Modulation Schemes
On-Off Keying (OOK): This is the simplest form. The presence of a light pulse represents a binary “1”, while its absence represents a “0”. Its simplicity makes it easy to implement, but it may be sensitive to noise.
Advanced Modulation Techniques
Amplitude Modulation (AM): The amplitude (or intensity) of the light is varied to represent different data values. Frequency Modulation (FM) and Phase Modulation (PM): These techniques modify either the frequency or phase of the light wave to encode more complex data. Polarization Modulation: Altering the polarization state can create an additional layer of encoding.
Enhancing Reliability with Error Correction
Given the challenging channel conditions encountered in free-space communication, integrating error correction mechanisms is paramount. Using error correction codes not only improves reliability but also reduces the impact of external disturbances:
- Low-Density Parity-Check (LDPC) Codes: Known for their robustness in noisy channels.
- Turbo Codes: Offer high performance in error correction with reasonable computational demands.
These methods aid in mitigating errors that can occur due to scattering, turbulence, and alignment issues in free space.
Channel and Environmental Considerations
The free space channel presents unique challenges: atmospheric turbulence, varying weather conditions, and physical obstructions can all affect signal clarity. An optimal digital code language must:
- Include adaptive encoding that can dynamically adjust modulation parameters in real-time based on channel conditions.
- Utilize robust synchronization methods to ensure data is interpreted correctly despite signal delays or distortions.
Developing a Domain-Specific Language (DSL) for Light Waves
Defining Grammar and Syntax
To create a useful language for controlling light waves, you must first develop a clear grammar and syntax. The language should incorporate:
- A set of tokens to represent light properties, such as intensity, duration, color, and pattern.
- Operators and control structures to define how data is encoded and manipulated in the transmission process.
- Rules that clearly define the boundaries of commands and their expected outputs.
The syntax should be intuitive enough for developers yet precise to avoid ambiguities when translating digital instructions into light emission patterns.
Compiler/Interpreter Construction
The next step entails building a compiler or interpreter capable of turning the DSL into actionable commands for light control hardware. Key stages include:
Lexical and Syntax Analysis
A lexical analyzer (lexer) identifies and extracts relevant tokens from the code, such as specific symbols denoting changes in light intensity or pulses. This is followed by a syntax analysis stage where the tokens are examined to ensure they conform to the language’s grammar.
Semantic Analysis and Code Generation
Once the syntax is verified, the compiler performs semantic analysis to ensure that instructions are logically consistent (for example, verifying that a defined intensity value is within acceptable limits). The final output is then a set of low-level commands which can be executed by hardware controllers, such as microcontrollers or single-board computers.
Hardware Integration and Light Wave Manipulation
The digital code language must effectively interface with physical devices. Whether using laser diodes, LED arrays, or other light sources, the following are key considerations:
- Hardware Platforms: Platforms such as Raspberry Pi or Arduino can be used to control the light sources based on generated code.
- Sensors and Adaptive Feedback Systems: Incorporate sensors to monitor light intensity, color accuracy, and ambient conditions, allowing the system to adjust in real time.
- Software Tools: Simulation environments (e.g., MATLAB) can be essential for prototyping and validating the behavior of the DSL before physical implementation.
A Sample Implementation
Below is an example of a simple Python code snippet that exemplifies how light control instructions might be incorporated into a digital code language. This script illustrates controlling an LED via a Raspberry Pi, serving as a prototype for more sophisticated language processors.
# Importing necessary libraries
import RPi.GPIO as GPIO
import time
# Set up GPIO for LED control
def initialize_led(pin):
GPIO.setmode(GPIO.BCM)
GPIO.setup(pin, GPIO.OUT)
return GPIO.PWM(pin, 100) # Using PWM for intensity control
# Function to set LED intensity using PWM
def set_intensity(pwm, intensity):
# Validate intensity range (0 to 100)
pwm.ChangeDutyCycle(intensity)
# Function to change LED state to represent digital values
def digital_encode(pwm, value, duration=1):
if value == 1:
set_intensity(pwm, 100) # 100% intensity for '1'
else:
set_intensity(pwm, 0) # 0% intensity for '0'
time.sleep(duration)
# Example usage
led_pin = 17
pwm_led = initialize_led(led_pin)
pwm_led.start(0)
# Transmit a simple binary sequence
for bit in [1, 0, 1, 1, 0]:
digital_encode(pwm_led, bit, 0.5)
pwm_led.stop()
GPIO.cleanup()
This code is a foundational example. By expanding it to include advanced modulation and error correction logic, you can move towards a fully featured free space light wave digital code language.
Table: Modulation Techniques Overview
| Modulation Technique | Description | Pros | Cons |
|---|---|---|---|
| On-Off Keying (OOK) | Binary digital coding using light pulses | Simple to implement, easy synchronization | Sensitive to noise, limited data rate |
| Amplitude Modulation (AM) | Encoding information in light intensity | Enables multi-level data schemes | Requires precise control, susceptible to ambient light interference |
| Phase Modulation (PM) | Information encoded in phase shifts | High bandwidth efficiency | Complex to implement, sensitive to phase disturbances |
| Polarization Modulation | Uses the polarization states of light | Adds an extra layer of encoding without extra bandwidth | Requires sophisticated detectors and modulators |
Testing and Iterating the Code Language
Building a digital code language for free space optical communications is an iterative process. Begin with a minimal viable system and gradually incorporate additional features and error correction mechanisms. It is advisable to:
- Prototype in Simulation: Use computational tools like MATLAB to simulate interactions and the impact of environmental factors.
- Field Testing: Conduct experiments in controlled and increasingly realistic environments to validate performance.
- User Feedback: Gather observations and operational data to improve usability and resilience.
Addressing Practical Channel Challenges
One important aspect is designing the system to adapt to real-world conditions such as:
- Atmospheric Turbulence: Implement adaptive optics and dynamic modulation adjustments to maintain signal integrity.
- Physical Obstructions: Incorporate redundancy in transmission and diversified routing (using multiplexing techniques).
- Background Noise and Interference: Use robust filtering and error correction protocols to mitigate external disruptions.
Conclusion and Final Thoughts
Creating a free space light wave digital code language is a multidisciplinary challenge that blends optical physics, digital signal processing, and software/hardware integration. The process begins with identifying appropriate modulation techniques to encode information onto light waves and ensuring these techniques are resilient against environmental disturbances. Developing a domain-specific language tailored to control light properties involves establishing syntax and semantics, constructing a compiler or interpreter to process the light code, and integrating hardware components for real-world implementation.
Robust error correction measures, such as integrating low-density parity-check codes or turbo codes, are essential for maintaining integrity in the face of atmospheric challenges. Simulation and iterative testing—both in software environments and through physical prototypes—play a pivotal role in refining the language and the associated hardware controls. The journey involves both conceptual development and practical experimentation, ensuring that the final system is both technically robust and adaptable to various applications in high-speed, secure data communications.
