Maxwell's Equations: Comprehensive Formulas, Java Implementation, and Comparative Analysis

Introduction to Maxwell's Equations

Maxwell's equations are the foundational pillars of classical electromagnetism, encapsulating the behavior of electric and magnetic fields and their interactions. Formulated by James Clerk Maxwell in the 19th century, these four differential equations unify electric and magnetic phenomena into a coherent framework, predicting the existence of electromagnetic waves and laying the groundwork for modern physics and engineering.

Formulas of Maxwell's Equations

1. Gauss's Law for Electricity

Gauss's Law for Electricity relates the distribution of electric charge to the resulting electric field. It is expressed in both integral and differential forms:

Integral Form

$$\oint_{S} \mathbf{E} \cdot d\mathbf{A} = \frac{Q_{\text{enc}}}{\varepsilon_0}$$

Differential Form

$$\nabla \cdot \mathbf{E} = \frac{\rho}{\varepsilon_0}$$

Explanation: The integral form states that the total electric flux through a closed surface is proportional to the charge enclosed within that surface. The differential form indicates that the divergence of the electric field at a point is proportional to the local charge density.

2. Gauss's Law for Magnetism

Gauss's Law for Magnetism addresses the nature of magnetic fields, asserting the absence of magnetic monopoles:

Integral Form

$$\oint_{S} \mathbf{B} \cdot d\mathbf{A} = 0$$

Differential Form

$$\nabla \cdot \mathbf{B} = 0$$

Explanation: Both forms express that the net magnetic flux through a closed surface is zero, implying that magnetic field lines are continuous loops without beginning or end.

3. Faraday's Law of Induction

Faraday's Law describes how a time-varying magnetic field induces an electric field:

Integral Form

$$\oint_{C} \mathbf{E} \cdot d\mathbf{l} = -\frac{d\Phi_B}{dt}$$

Differential Form

$$\nabla \times \mathbf{E} = -\frac{\partial \mathbf{B}}{\partial t}$$

Explanation: The integral form indicates that the electromotive force (EMF) around a closed loop is equal to the negative rate of change of magnetic flux through the loop. The differential form signifies that a changing magnetic field generates a circulating electric field.

4. Ampère-Maxwell Law

Ampère's Law, augmented by Maxwell's addition, connects magnetic fields to electric currents and time-varying electric fields:

Integral Form

$$\oint_{C} \mathbf{B} \cdot d\mathbf{l} = \mu_0 \left( I_{\text{enc}} + \varepsilon_0 \frac{d\Phi_E}{dt} \right)$$

Differential Form

$$\nabla \times \mathbf{B} = \mu_0 \mathbf{J} + \mu_0 \varepsilon_0 \frac{\partial \mathbf{E}}{\partial t}$$

Explanation: The integral form asserts that the circulation of the magnetic field around a closed loop is proportional to the total current passing through the loop plus the displacement current, which accounts for time-varying electric fields. The differential form shows that the curl of the magnetic field is generated by both electric currents and the rate of change of the electric field.

Java Implementation of Maxwell's Equations

To model Maxwell's equations computationally, we can employ numerical methods such as the Finite-Difference Time-Domain (FDTD) method. Below is an example Java implementation that simulates the propagation of electromagnetic waves using Maxwell's equations:

MaxwellFDTD.java

import java.awt.*;
import javax.swing.*;

public class MaxwellFDTD extends JPanel {
    // Constants
    private static final double EPSILON_0 = 8.854e-12; // Vacuum permittivity (F/m)
    private static final double MU_0 = 4 * Math.PI * 1e-7; // Vacuum permeability (H/m)
    private static final double C = 1 / Math.sqrt(EPSILON_0 * MU_0); // Speed of light (m/s)

    // Simulation parameters
    private static final double DX = 1e-3; // Spatial step (meters)
    private static final double DT = DX / (2 * C); // Time step (seconds)
    private static final int NX = 200; // Number of spatial points
    private static final int NT = 1000; // Number of time steps

    // Fields
    private double[] E = new double[NX]; // Electric field
    private double[] H = new double[NX]; // Magnetic field
    private int sourcePosition = NX / 2;

    public static void main(String[] args) {
        JFrame frame = new JFrame("Maxwell FDTD Simulation");
        MaxwellFDTD simulation = new MaxwellFDTD();
        frame.add(simulation);
        frame.setSize(800, 600);
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        frame.setVisible(true);
        simulation.runSimulation();
    }

    public void runSimulation() {
        for (int n = 0; n < NT; n++) {
            // Update magnetic field H
            for (int i = 0; i < NX - 1; i++) {
                H[i] += (E[i + 1] - E[i]) * (DT / (MU_0 * DX));
            }

            // Update electric field E
            for (int i = 1; i < NX; i++) {
                E[i] += (H[i] - H[i - 1]) * (DT / (EPSILON_0 * DX));
            }

            // Apply a Gaussian pulse as the source
            E[sourcePosition] += Math.exp(-Math.pow((n - 100), 2) / (2 * Math.pow(10, 2)));

            // Repaint the panel to visualize fields
            repaint();
        }
    }

    @Override
    protected void paintComponent(Graphics g) {
        super.paintComponent(g);
        g.setColor(Color.BLUE);
        for (int i = 0; i < NX - 1; i++) {
            int x1 = (int)((double)i / (NX - 1) * getWidth());
            int y1 = getHeight() / 2 - (int)(E[i] * 1e6);
            int x2 = (int)((double)(i + 1) / (NX - 1) * getWidth());
            int y2 = getHeight() / 2 - (int)(E[i + 1] * 1e6);
            g.drawLine(x1, y1, x2, y2);
        }

        g.setColor(Color.RED);
        for (int i = 0; i < NX - 1; i++) {
            int x1 = (int)((double)i / (NX - 1) * getWidth());
            int y1 = getHeight() / 2 + 50 - (int)(H[i] * 1e6);
            int x2 = (int)((double)(i + 1) / (NX - 1) * getWidth());
            int y2 = getHeight() / 2 + 50 - (int)(H[i + 1] * 1e6);
            g.drawLine(x1, y1, x2, y2);
        }
    }
}


Explanation:

• EPSILON_0 and MU_0 represent the vacuum permittivity and permeability, respectively.
• The simulation parameters DX, DT, NX, and NT define the spatial step size, time step size, number of spatial points, and number of time steps.
• Arrays E and H store the electric and magnetic field values across the spatial grid.
• The runSimulation method updates the fields iteratively based on Maxwell's equations using the FDTD method.
• The paintComponent method visualizes the electric and magnetic fields in real-time.

Comparative Analysis of Maxwell's Equations

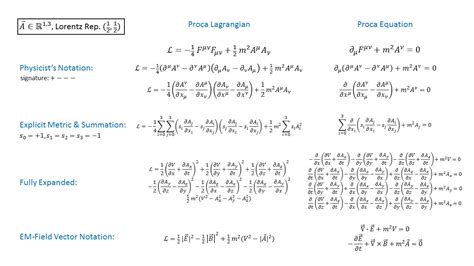

Comparison Table of Maxwell's Equations

Summary of Key Concepts

• Gauss's Law for Electricity: Connects electric charges to the electric field they produce. In integral form, it relates the total electric flux through a surface to the charge enclosed; in differential form, it relates the divergence of the electric field to the local charge density.
• Gauss's Law for Magnetism: States that there are no isolated magnetic monopoles. Both forms imply that magnetic field lines are continuous without beginnings or ends.
• Faraday's Law of Induction: Describes how a time-varying magnetic field induces an electric field. This principle is the working basis for electric generators and transformers.
• Ampère-Maxwell Law: Extends Ampère's original law by including the displacement current term, linking changing electric fields to the generation of magnetic fields, thus ensuring the continuity of the magnetic field.

Practical Applications and Implications

Maxwell's equations are not only theoretical constructs but have profound practical applications:

Electromagnetic Wave Propagation

By combining Maxwell's equations, one can derive the wave equation for electromagnetic waves, demonstrating that oscillating electric and magnetic fields propagate through space at the speed of light:

$$\nabla^2 \mathbf{E} - \mu_0 \epsilon_0 \frac{\partial^2 \mathbf{E}}{\partial t^2} = 0$$

Electrical Engineering and Technology

Maxwell's equations underpin the design and analysis of electrical circuits, transformers, antennas, wireless communication systems, and myriad other technologies essential to modern life. Understanding these equations enables engineers to manipulate electromagnetic fields for desired technological outcomes.

Physics and Fundamental Research

In physics, Maxwell's equations are fundamental to both classical and quantum theories. They are essential in the study of optics, plasma physics, and electromagnetic theory, influencing advancements in both theoretical understanding and experimental techniques.

Further Reading and References

For an in-depth exploration of Maxwell's equations and their applications, consider the following resources:

1. Maxwell's Equations - Britannica
2. Maxwell's Electromagnetic Equations - GeeksforGeeks
3. Maxwell Equations - Tutorials Point
4. MIT Course Notes on Maxwell’s Equations
5. GitHub - Intuitive Guide to Understanding Maxwell's Equations

For comprehensive theoretical frameworks and problem-solving techniques, refer to standard textbooks such as Introduction to Electrodynamics by David J. Griffiths and Field and Wave Electromagnetics by David K. Cheng.
