Unlocking System Design: From Blueprint Diagrams to User Interface
A Comprehensive Guide to Visualizing, Architecting, and Implementing Robust Systems
System design is a multifaceted discipline essential for creating effective and efficient software and hardware systems. It involves translating requirements into a concrete blueprint, encompassing everything from high-level conceptual models to detailed specifications for implementation. This guide delves into the critical components of Chapter Four - Design, covering Systems Diagrams, Architectural Design, Database Design, Program Design, and Interface Design.
Highlights of System Design
Key Takeaways
- Visual Clarity is Crucial: System diagrams like UML Context Diagrams, DFDs, and Activity Diagrams provide essential visualization, defining scope, data flow, and process workflows to ensure all stakeholders share a common understanding.
- Architecture Forms the Foundation: Both hardware (servers, routers) and network architecture (protocols, topology, security) must be carefully designed to ensure the system is scalable, reliable, and performs optimally.
- Data Structure Matters: Effective database design using ER Diagrams and normalization techniques is vital for data integrity, reducing redundancy, and enabling efficient data retrieval and management.
Visualizing the System: Systems Diagrams
Understanding Interactions and Flows
Systems diagrams are indispensable tools in the design phase, offering visual representations of a system's structure, behavior, and interactions with its environment. They help clarify scope, identify data pathways, and model processes.
UML Context Diagrams: Defining the Boundaries
A UML Context Diagram serves as a high-level map, illustrating the boundary between the system being designed and its external environment. It identifies the external entities (also known as actors, which can be users, other systems, or hardware devices) that interact with the system.
- Purpose: To define the system's scope and show its primary interactions without delving into internal complexities.
- Description: Typically depicts the system as a single central process or component, surrounded by external entities connected by lines representing interactions or data flows.
- Use: Essential during the initial requirements gathering phase to establish a shared understanding among stakeholders about what the system does and doesn't do, and who or what it interacts with.
- Example: For an online bookstore system, external entities might include Customers, Payment Gateways, Inventory Systems, and Shipping Providers, all interacting with the central "Bookstore System".
- Relation to DFD: Often considered a "Level 0" Data Flow Diagram, providing the highest-level view before detailed decomposition. While UML doesn't have a specific "Context Diagram" type, elements like Use Case diagrams with stereotyped components can be adapted.
Data Flow Diagrams (DFD): Tracing the Data
Data Flow Diagrams illustrate how data moves through a system. Unlike context diagrams, DFDs can be decomposed into multiple levels to show increasing detail about internal processes, data stores, and data flows.
- Purpose: To visualize the journey of data within a system – where it originates, how it is transformed (processed), where it is stored, and where it ultimately goes.
- Levels:
- Level 0 (Context Diagram): Shows the system as a single process interacting with external entities.
- Level 1, 2, etc.: Break down the main process into sub-processes, revealing internal data stores (e.g., databases) and the flows between them.
- Elements: Processes (transform data), Data Stores (hold data), Data Flows (movement of data, represented by arrows, sometimes bidirectional), and External Entities (sources or sinks of data).
- Use: Helps analyze data handling requirements, identify potential bottlenecks, and design efficient data processing logic.
Activity Diagrams: Modeling the Workflow
Activity Diagrams, part of the Unified Modeling Language (UML), focus on the dynamic aspects of a system by modeling the flow of control from one activity to another. They are excellent for representing business processes, operational workflows, or complex algorithms.
- Purpose: To illustrate the sequence of actions, decision points, parallel processing, and synchronization points within a process or use case.
- Description: Uses specific symbols for start/end points, activities (actions), decisions (branches), merges, forks (parallel activities), and joins (synchronization).
- Use: Valuable for understanding and optimizing workflows, describing complex logic step-by-step, and visualizing system behavior in response to events or conditions.
Building the Foundation: Architectural Design
Hardware and Networking Infrastructure
Architectural design lays out the fundamental physical and logical structure required for the system to operate effectively. This encompasses decisions about hardware components and the network that connects them.
Hardware Architecture: The Physical Components
This involves selecting and configuring the physical devices that will host and support the system.
- Components: Servers (for processing and data storage), client machines (desktops, laptops, mobile devices), storage devices (Hard Drives, SSDs, SANs), network hardware (routers, switches, firewalls), peripherals.
- Considerations: Performance requirements (CPU, RAM, I/O), scalability (ability to handle growth), reliability and availability (fault tolerance, redundancy), cost, power consumption, and physical security.
- Example: Designing a high-traffic e-commerce site might require powerful, load-balanced web servers, dedicated database servers, and robust storage solutions.
Network Architecture: Enabling Communication
Network architecture defines how devices are connected and how data is transmitted between them.
- Definition: The design of the communication network, including hardware layout, logical organization, protocols, and security measures.
- Components:
- Routers: Direct data packets between different networks (e.g., connecting a local network to the internet).
- Switches: Connect devices within the same local area network (LAN).
- Firewalls: Monitor and control incoming and outgoing network traffic based on security rules.
- Cabling & Wireless Access Points: Provide the physical or wireless connectivity medium.
- Protocols: Standards governing data transmission, such as IP (Internet Protocol) for addressing, TCP (Transmission Control Protocol) for reliable connections, and UDP (User Datagram Protocol) for faster, connectionless transmission.
- Design Factors: Bandwidth (data capacity), latency (delay), security (protecting against unauthorized access), scalability, reliability, network topology (e.g., star, mesh, bus), wired vs. wireless considerations.
- Modern Approaches: Methods like network segmentation (dividing a network into smaller parts) enhance security and performance. Intent-Based Networking (IBN) uses AI and machine learning to automate network operations based on business objectives.
Structuring the Data: Database Design
ER Diagrams and Normalization
Database design is crucial for ensuring data is stored accurately, consistently, and efficiently. Key techniques include Entity-Relationship (ER) modeling and database normalization.
Entity-Relationship (ER) Diagrams: Modeling Data Structures
ER Diagrams provide a graphical representation of the logical structure of a database.
- Purpose: To visualize the entities within a system, the attributes that describe them, and the relationships between different entities.
- Components:
- Entities: Represent distinct objects or concepts about which data is stored (e.g.,
Customer,Product,Order). Usually represented as rectangles. - Attributes: Properties or characteristics of an entity (e.g.,
CustomerID,Namefor theCustomerentity). Often listed within the entity rectangle or as ovals. Primary keys are underlined. - Relationships: Define how entities are associated with each other (e.g., a
Customer*places* anOrder). Represented by lines connecting entities, often with diamonds indicating the relationship type and cardinality (e.g., one-to-one, one-to-many, many-to-many).
- Entities: Represent distinct objects or concepts about which data is stored (e.g.,
- Use: Serves as a blueprint for creating the actual database schema (tables, columns, keys, constraints). Facilitates communication about data requirements.
Database Normalization: Optimizing Data Integrity
Normalization is a systematic process for organizing the attributes and tables of a relational database to minimize data redundancy and improve data integrity.
- Definition: A technique to structure database tables to reduce repetition of data and avoid anomalies during data insertion, update, or deletion.
- Normal Forms (NF): A series of rules or stages to achieve normalization. Common forms include:
- First Normal Form (1NF): Ensures that table cells contain atomic (indivisible) values and there are no repeating groups of columns.
- Second Normal Form (2NF): Requires the table to be in 1NF and all non-key attributes to be fully functionally dependent on the entire primary key (eliminates partial dependencies).
- Third Normal Form (3NF): Requires the table to be in 2NF and eliminates transitive dependencies (where non-key attributes depend on other non-key attributes).
- Process: Often applied iteratively during or after the creation of the initial ER diagram. It involves decomposing tables into smaller, well-structured tables and defining relationships between them using foreign keys.
- Outcome: A database schema that is less prone to inconsistencies, easier to maintain, and more efficient for many types of queries.
Comparison of Normal Forms
The following table summarizes the primary goals of the first three normal forms:
| Normal Form | Requirement | Goal |
|---|---|---|
| 1NF (First Normal Form) | Atomic values in each cell; No repeating groups. | Eliminate repeating groups and ensure atomic data entries. |
| 2NF (Second Normal Form) | Must be in 1NF; All non-key attributes must depend on the entire primary key. | Remove partial dependencies on composite primary keys. |
| 3NF (Third Normal Form) | Must be in 2NF; No transitive dependencies (non-key attributes depending on other non-key attributes). | Eliminate dependencies between non-key attributes. |
Designing the Logic: Program Design
Structuring Software with Diagrams and Pseudocode
Program design involves detailing the internal structure and behavior of the software components. UML diagrams and pseudocode are common tools used in this phase.
Class Diagrams: Blueprinting the Objects
Class Diagrams are static structure diagrams in UML that describe the structure of a system by showing its classes, their attributes, operations (methods), and the relationships among objects.
- Purpose: To model the object-oriented view of a system, defining the building blocks (classes) and how they relate.
- Use: Forms the basis for coding in object-oriented languages. Helps visualize inheritance, associations, aggregation, and composition relationships between classes.
- Elements: Rectangles representing classes (divided into name, attributes, methods), lines representing relationships (e.g., association, generalization/inheritance).
Sequence Diagrams: Mapping Interactions Over Time
Sequence Diagrams are interaction diagrams in UML that show how objects interact with each other and the order in which those interactions occur for a specific scenario or use case.
- Purpose: To visualize the flow of messages exchanged between objects (or actors) in a time-ordered sequence.
- Use: Excellent for understanding the dynamic behavior of a system during runtime for a particular function. Helps identify which objects participate in a process and the messages they send/receive.
- Elements: Lifelines (vertical lines representing objects/participants), messages (horizontal arrows indicating communication), activation bars (rectangles on lifelines showing when an object is active/processing).
Package Diagrams: Organizing the System
Package Diagrams are UML structure diagrams used to organize model elements (like classes, use cases) into groups (packages). They help manage the complexity of large systems.
- Purpose: To show the decomposition of a system into logical groupings and the dependencies between these groupings.
- Use: Provides a high-level organization of the system architecture, improving modularity and maintainability. Shows how different parts of the system depend on each other.
Pseudocode: Outlining the Algorithm
Pseudocode is an informal, high-level description of the operating principle of a computer program or other algorithm. It uses natural language conventions mixed with programming language structures, but is not bound by strict syntax rules.
- Purpose: To outline the logic of an algorithm or program module before writing actual code.
- Use: Serves as a bridge between the design phase and the coding phase. Makes the algorithm understandable to programmers and non-programmers alike. Easy to write and modify.
- Benefit: Helps clarify complex logic, identify potential issues early, and serves as documentation for the algorithm.
Crafting the Experience: Interface Design
Designing User Interactions
Interface design focuses on creating the point of interaction between the user and the system. The goal is to make this interaction efficient, effective, and intuitive.
The Role of User Interface (UI) Design
UI design is concerned with the look and feel, presentation, and interactivity of a product. It ensures that the interface elements like menus, buttons, forms, and visual layout are aesthetically pleasing and easy to use.
- Goal: To create an interface that is user-friendly, accessible, consistent, and aligned with user needs and expectations.
- Considerations: Layout, color schemes, typography, visual hierarchy, feedback mechanisms, error prevention, and consistency across the application.
Visualizing the Interface: Mockups, Wireframes, and Screenshots
Visual representations are key in UI design to communicate and test ideas before implementation.
- Wireframes: Low-fidelity blueprints showing the basic structure and layout of interface elements, focusing on functionality and information architecture rather than visual design.
- Mockups: Mid-to-high fidelity static representations that show how the interface will look, including colors, typography, and imagery. They give a more concrete sense of the final appearance.
- Screenshots of User Interface: Actual images captured from a prototype or the developed software. They provide the most accurate depiction of the final UI and are crucial for documentation, testing, and presentations.

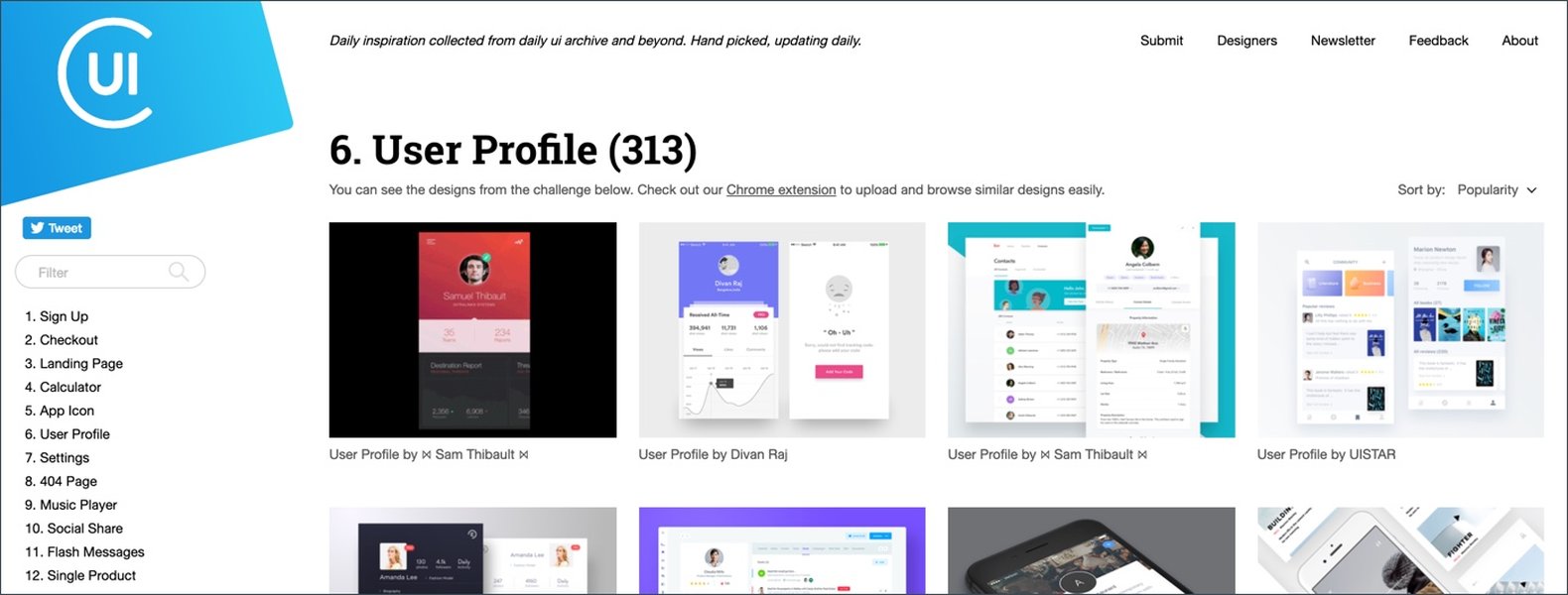

Example showcasing various user interface designs (Source: Collect UI)
System Design Aspects Compared
Relative Focus of Different Design Artifacts
Different diagrams and design aspects emphasize different facets of a system. The radar chart below provides a conceptual comparison of where various design artifacts place their focus, rated on scales representing qualities like abstraction level, data emphasis, and structural detail. These ratings are illustrative, reflecting typical usage and primary focus.
Mapping the Design Landscape
A Mindmap Overview of Design Components
This mindmap provides a visual summary of the key areas covered in Chapter Four - Design, branching out into the specific diagrams, concepts, and elements discussed within each domain.
(Scope, Boundaries, External Entities)"] DFD["Data Flow Diagram (DFD)
(Data Movement, Processes, Stores)"] Activity["Activity Diagram
(Workflow, Processes, Decisions)"] ArchDesign["Architectural Design"] Hardware["Hardware
(Servers, Routers, Switches, Storage)"] Networking["Networking
(Topology, Protocols, Security, Bandwidth)"] DBDesign["Database Design"] ERD["ER Diagrams
(Entities, Attributes, Relationships)"] Normalization["Normalization
(1NF, 2NF, 3NF, Data Integrity)"] ProgDesign["Program Design"] Class["Class Diagrams
(Classes, Attributes, Methods, Relationships)"] Sequence["Sequence Diagrams
(Object Interactions, Time Sequence)"] Package["Package Diagrams
(Modularity, Dependencies)"] Pseudo["Pseudocode
(Algorithm Logic, Planning)"] InterfaceDesign["Interface Design"] UI["User Interface (UI)
(Layout, Usability, Aesthetics)"] Visuals["Visual Representations
(Wireframes, Mockups, Screenshots)"]
Deep Dive into UML
Understanding the Unified Modeling Language
The Unified Modeling Language (UML) provides a standardized way to visualize, specify, construct, and document the artifacts of a software-intensive system. It encompasses many of the diagrams discussed, such as Class, Sequence, Activity, and Package diagrams, offering a comprehensive toolkit for system designers and developers. This video provides a full course on UML diagrams, explaining their purpose and usage in system and database design.
Frequently Asked Questions (FAQ)
Clarifying Key Design Concepts
What is the main difference between a UML Context Diagram and a Data Flow Diagram (DFD)?
A UML Context Diagram (often considered a Level 0 DFD) provides the highest-level view, showing the entire system as a single entity and its interactions with external actors or systems. It focuses solely on defining the system's boundary and scope. A DFD, especially at lower levels (Level 1+), decomposes the system into internal processes, shows data stores, and details the flow of data *within* the system, as well as its external interactions. DFDs provide much more internal detail about data handling.
Why is database normalization important?
Database normalization is crucial for several reasons:
- Minimizes Redundancy: It reduces the repetition of data across tables, saving storage space and making the database more efficient.
- Improves Data Integrity: By organizing data logically and reducing redundancy, it helps prevent inconsistencies and anomalies when data is inserted, updated, or deleted.
- Enhances Maintainability: A normalized database is generally easier to understand, modify, and extend over time.
- Supports Query Efficiency: While highly normalized databases can sometimes require more joins, they often lead to more predictable query performance and simpler query logic for many common operations.
What is the relationship between ER Diagrams and Class Diagrams?
ER Diagrams and Class Diagrams both model structures, but for different domains. ER Diagrams model the conceptual structure of a database, focusing on entities (often corresponding to tables), attributes (columns), and relationships. Class Diagrams model the structure of an object-oriented software system, focusing on classes (blueprints for objects), attributes (data members), operations (methods), and relationships like inheritance and association. While there's often a mapping between database entities and software classes (e.g., using Object-Relational Mapping), they model different aspects: one focuses on data persistence, the other on software components and behavior.
When should I use pseudocode instead of a formal diagram?
Pseudocode is particularly useful when you need to detail the specific step-by-step logic of an algorithm or a complex function. While diagrams like Activity Diagrams can show workflow, pseudocode allows for a more textual, code-like description without adhering to strict programming syntax. It's ideal for:
- Planning the logic before coding.
- Communicating algorithms clearly to others, including non-programmers.
- Working through complex conditional logic or loops in a simplified format.
- Documenting how a specific piece of code works.
Diagrams are better for visualizing higher-level structure, interactions, or flows, while pseudocode excels at detailing procedural logic.
Recommended Reading
Explore Further Design Topics
- Explore the various types of UML diagrams and their specific applications in system modeling.
- Discover the best practices for designing secure and resilient network architectures.
- Learn about higher normal forms (like BCNF, 4NF, 5NF) and when they might be necessary.
- Investigate the core principles that contribute to creating intuitive and user-friendly interfaces.
References
Sources Used for This Overview
Last updated May 1, 2025
